Remote Smart Parking Assist (RSPA): (if equipped)

Remote Smart Parking Assist uses vehicle sensors to help the driver park and exit parking spaces remotely from outside the vehicle by controlling the steering wheel, vehicle speed and gearshifts.

Function

Description

Remote Operation

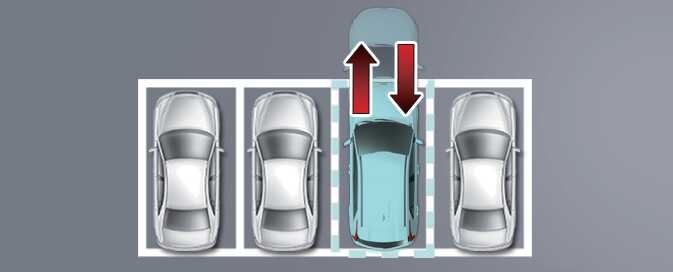

Remotely moving forward or backward

OSG2H051082

Detecting sensor

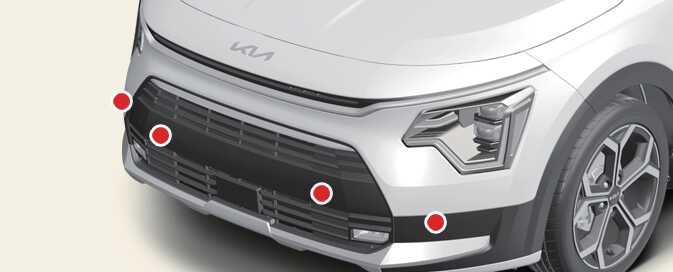

Figure 1. Front ultrasonic sensors
OSG2H0510800

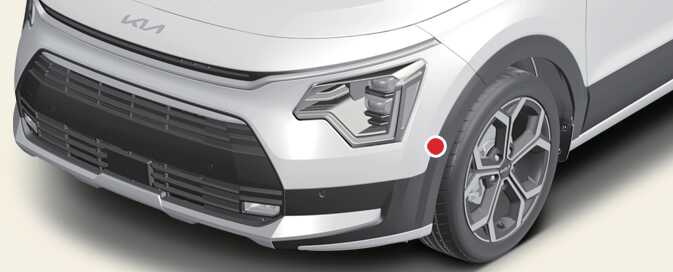

Figure 2. Front side ultrasonic sensors
OSG2H051083

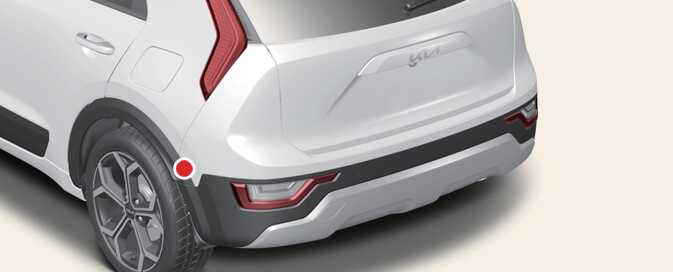

Figure 3. Rear side ultrasonic sensors
OSG2H051084

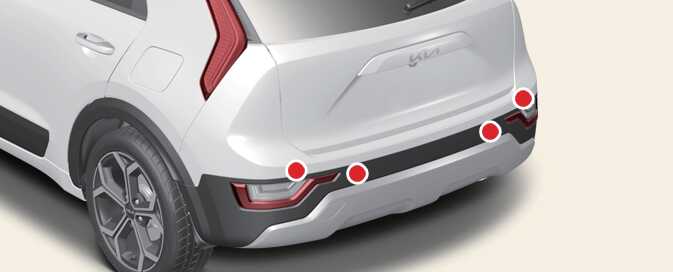

Figure 4. Rear ultrasonic sensors
OSG2H0510793

Refer to the picture above for the detailed location of the detecting sensors.

CAUTION

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensors need repair, have your vehicle inspected by an authorized Kia dealer.

  • Remote Smart Parking Assist may malfunction if the vehicle bumper height or ultrasonic sensor installation has been modified or damaged. Any non-factory installed equipment or accessories may also interfere with the sensor performance.

  • When the ultrasonic sensor is frozen or stained with snow, dirt, or water, the sensor may be not operate until the stains are removed using a soft cloth.

  • Do not push, scratch or strike the ultrasonic sensor. Sensor damage could occur.

  • Do not spray the ultrasonic sensors or its surrounding area directly with a high pressure washer.
