Instrument cluster

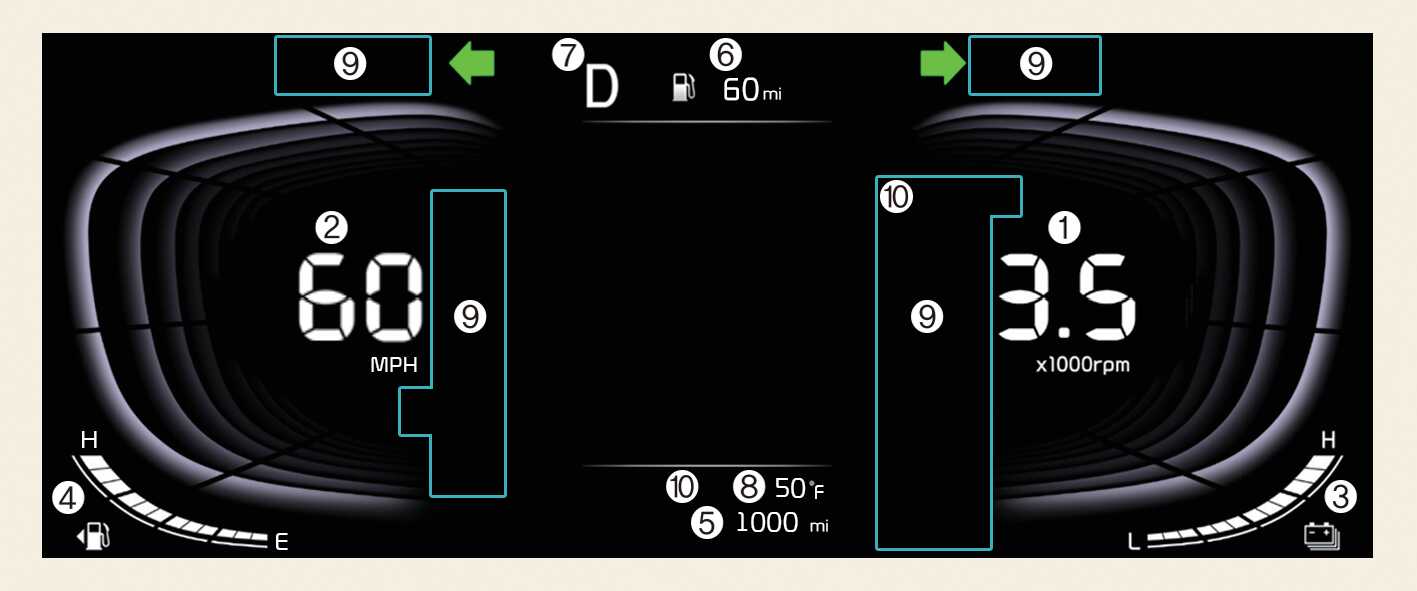

Figure 1. Type A
OSG2PH042109N

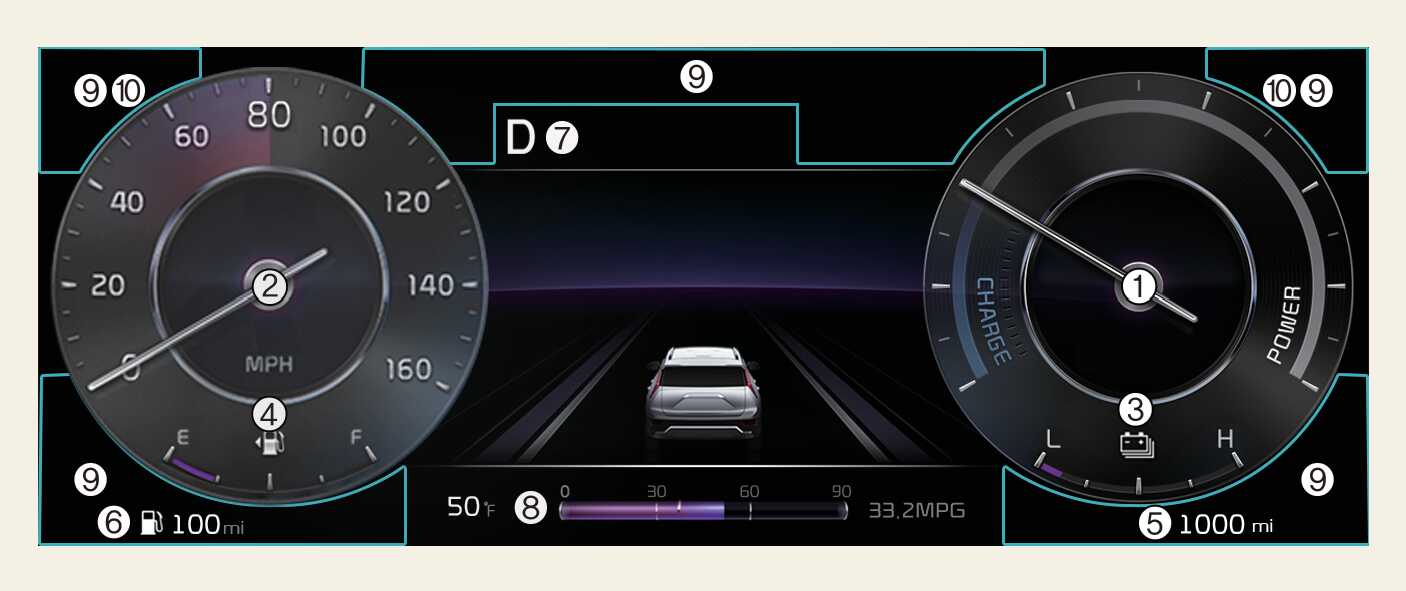

Figure 2. Type B
OSG2PH042100N

The actual cluster in the vehicle may differ from the illustration.

  1. Tachometer/Power gauge

  2. Speedometer

  3. Hybrid battery SOC gauge

  4. Fuel gauge

  5. Odometer

  6. Distance to empty

  7. Transmission shift indicator

  8. Outside temperature gauge

  9. Warning and indicator lights

  10. Plug-in hybrid mode indicator
