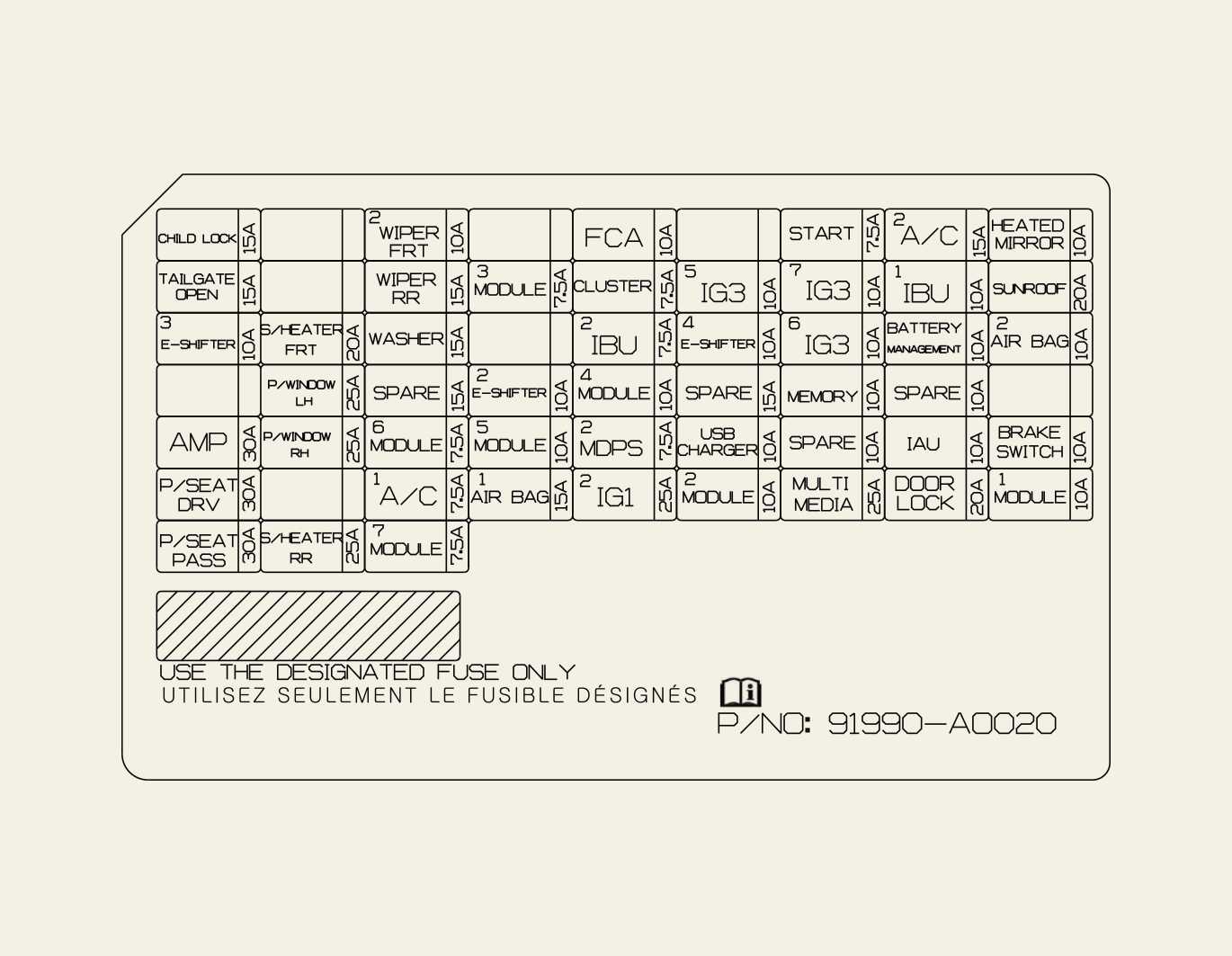

Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
CHILD LOCK |
15A |
Electronic child safety lock system |
|
WIPER FRT 2 |
10A |
Front Wiper Motor |
|
A/C 2 |
15A |
Air Conditioner Control Module |
|
FCA |
10A |
Front Radar |
|
START |
7.5A |
VCU, IBU |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
TAILGATE OPEN |
15A |
Liftgate open Relay |
|
WIPER RR |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
MODULE 3 |
7.5A |
Stop Lamp Switch, P/WDW Main SW, Digital Key 2 Touch Unit |
|
CLUSTER |
7.5A |
Instrument Cluster, Head Up Display |
|
IG3 5 |
10A |
V2L(Vehicle To Load) |
|
IG3 7 |
10A |
Audio/ Navigation Head Unit, Charging Ind, Instrument Cluster, Air Conditioner Control Module, PTC Heater Unit |
|
IBU 1 |
10A |
IBU (Integrated Body Control Unit) |
|
SUNROOF |
20A |
Sunroof Controller (Blind Motor) |
|
E-SHIFTER 3 |
10A |
SCU (Shift by wire Control Unit), Console Switch |
|
S/HEATER FRT |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
WASHER |
15A |
Multifunction Switch |
|
IBU 2 |
7.5A |
IBU (Integrated Body Control Unit) |
|
E-SHIFTER 4 |
10A |
SCU (Shift by wire Control Unit) |
|
IG3 6 |
10A |
Battery Management System Unit |
|
BATTERY MANAGEMENT |
10A |
Battery Management System |
|
AIR BAG 2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
P/WINDOW LH |
25A |
Power Window Main Switch |
|
E-SHIFTER 5 |
10A |
SCU (Shift by wire Control Unit), Console Switch |
|
MODULE 4 |
10A |
IBU (Integrated Body Control Unit), ADAS Driving ECU, ADAS Parking ECU, VESS (Virtual Engine Sound System) UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, OVERHEAD CONSOLE, FRONT/REAR CORNER RADAR |
|
MEMORY |
10A |
Instrument Cluster, Head Up Display, Mood Lamp, Air Conditioner Control Module |
|
AMP |
30A |
AMP (Amplifier) |
|
P/WINDOW RH |
25A |
Power Window Main Switch, Passenger Power Switch |
|
MODULE 6 |
7.5A |
IBU (Integrated Body Control Unit), Digital Key 2 Touch Unit |
|
MODULE 5 |
10A |
Head Lamp Leveling Device, Audio/ Navigation Head Unit, Wireless Smart Phone Charging System, ADAS Driving ECU, Overhead Console Lamp, Electric Chromic Mirror, Amp (Amplifier), Seat Warmer Control Module |
|
MDPS 2 |
7.5A |
Motor Driven Power Steering Unit |
|
USB CHARGER |
10A |
USB CHARGER (FRONT TRAY/ SEAT Driver/ Passenger) |
|
IAU |
10A |
DIGITAL KEY 2 TOUCH UNIT |
|
BRAKE SWITCH |
10A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
A/C 1 |
7.5A |
Air Conditioner Control Module |
|
AIR BAG 1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
IG1 2 |
25A |
Engine Room Junction Block (PCB Block Fuse - IEB4, ECU1) |
|
MODULE 2 |
10A |
AMP (Amplifier), IBU, ADAS Parking ECU, Audio/ Navigation Head Unit, Engine Room Junction Block (P/Outlet Relay), Digital Key 2 Touch Unit |
|
MULTI MEDIA |
25A |
Audio (Display), Audio/Video & Navigation Head Unit |
|
DOOR LOCK |
20A |
Center Door Lock lock Relay |
|
MODULE 1 |
10A |
Hazard Switch, Rain Sensor, Steering Wheel Remote Control, ADAS Driving ECU, Power Liftgate Unit, Power Seat, Outside Mirror, Engine Room Junction Block (Blower Relay) |
|
P/SEAT PASS |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
S/HEATER RR |
25A |
Rear Seat Warmer Control Module |
|
MODULE 7 |
7.5A |
ADAS Parking ECU, AC Inverter, Seat Warmer Control Module |
