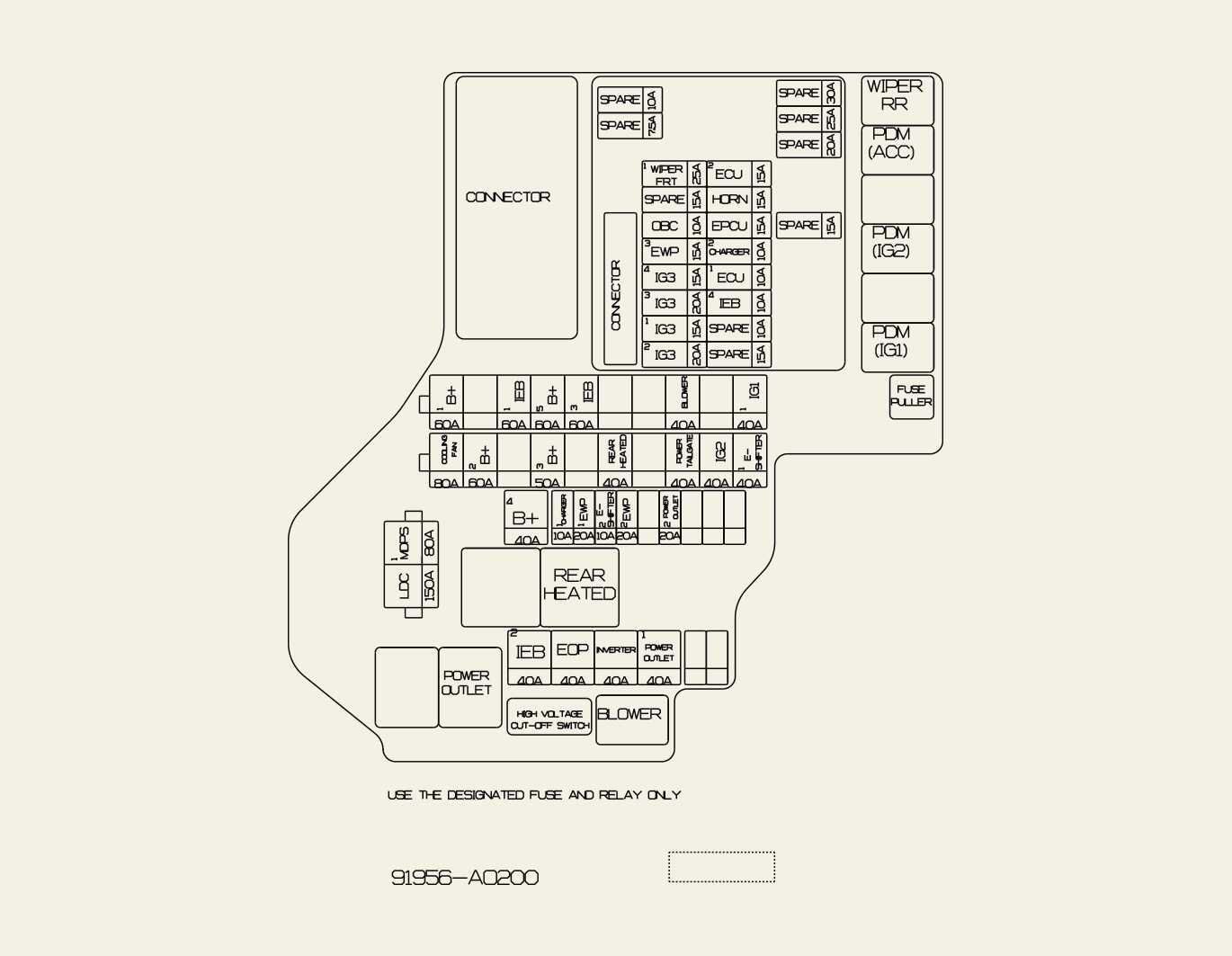

MULTI FUSE-1

LDC

Fuse (IEB2, EOP, Inverter, Power Outlet)

MDPS1

Motor Driven Power Steering Unit

MDPS is the same as EPS (Electric Power Steering).

MULTI FUSE-2

B+5

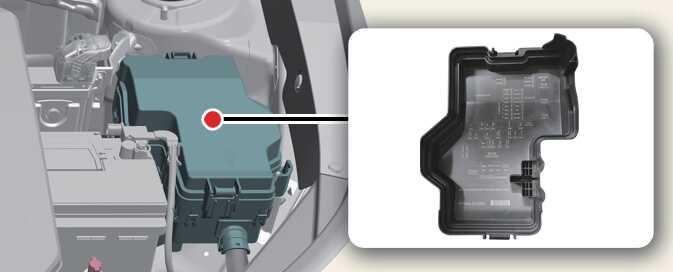

Engine Room PCB Junction Block

IG1 1

ICU Junction Block (FUSE -MODULE2, USB CHARGER, A/BAG1, IBU2, MDPS2, CLUSTER, MODULE3, MODULE4, MODULE5, E-SHIFTER5, FCA, ING1 2 )

B+1

ICU Junction Block (IPS)

IEB 1

IEB (Integrated Electronic Brake Module)

IEB 3

IEB (Integrated Electronic Brake Module)

BLOWER

Blower Relay

MULTI FUSE-3

COOLIN FAN

Cooling Fan Controller

REAR HEATED

Rear Heated Relay

B+2

ICU Junction Block (IPS)

B+3

ICU Junction Block (FUSE - E-SHIFTER3, P/WDW LH, P/WDW RH, T/GATE OPEN, AMP, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, S/HEATER RR, CHILD LOCK)

POWER TAILGATE

Power Liftgate Unit

IG2

ICU Junction Block (FUSE - WASHER, A/C1, MODULE6, MODULE7, WIPER RR)

E-SHIFTER 1

SCU (Shift by wire Control Unit)

FUSE

B+4

ICU Junction Block (FUSE - MULTIMEDIA, MEMORY, A/C2 AIR BAG2 , BRAKE SWITCH, MODULE1, IBU1, SUNROOF, BATTERY MANAGEMENT, DOOR LOCK, IAU)

IEB 2

IEB (Integrated Electronic Brake Module)

CHARGER 1

CDM (Charge Door Module)

EWP1

Battery Electronic Water Pump

EWP2

Battery Electronic Water Pump

POWER OUTLET 1

Front Power Outlet

INVERTER

AC Inverter

EOP

Front Electronic Oil Pump

E-SHIFTER2

SCU (Shift by wire Control Unit)

POWER OUTLET 2

Front Power Outlet

WIPER FRT1

Front Wiper Motor

EPCU

Front Inverter

HORN

HORN

OBC

VCMS, ICCU_SIG

EWP 3

Electronic Water Pump

IG3 1

Inverter, VCU

IG3 3

Electronic Water Pump

ECU 1

VCU

IG3 4

VCMS, ICCU_SIG, COOLING FAN, CDM, A/C COMP

IEB 4

IEB (Integrated Electronic Brake Module)

CHARGER 2

Charger Lock, Unlock Relay

IG3 2

FRONT ELECTRONIC OIL PUMP, 3WAY VALVE BATT, ICU IG3 FUSE(IG3 7, IG3 5, E-SHIFTER 4, IG3 6)
