Replacing front windshield wiper blade
Type A
1

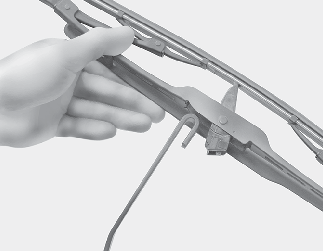

Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.
CAUTION
Wiper arms
-
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.
-
Do not pull wiper arm forward, since it could chip the hood paint.
2

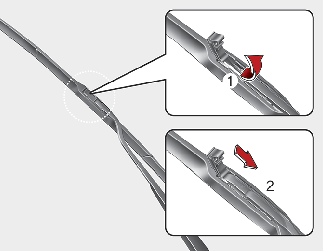

Compress the clip and slide the blade assembly downward.
3

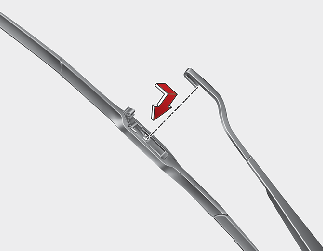

Lift it off the arm.
4
Install the blade assembly in the reverse order of removal.
Type B
1

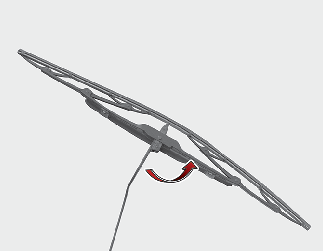

Raise the wiper arm.
2
Lift up the wiper blade clip. Then pull down the blade assembly and remove it.
3
Install the new blade assembly.
4
Return the wiper arm on the windshield.
5
Turn ignition to the ON position and wiper arms will return to the normal operating position.
