Seatback angle (2nd, 3rd row seat)

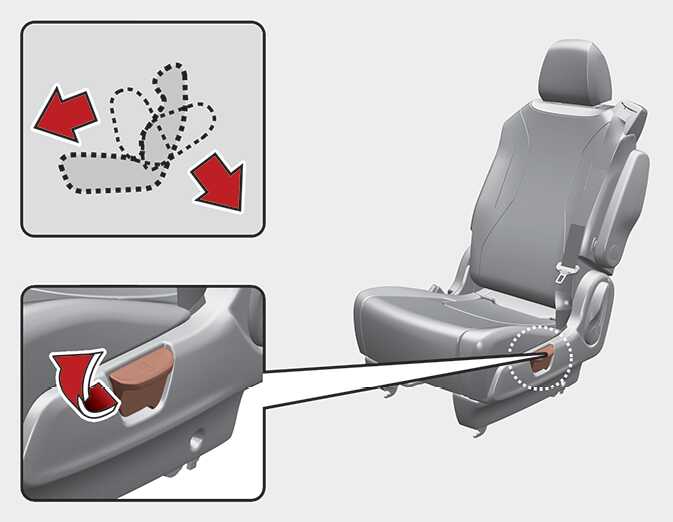

Figure 1. 2nd row outboard seat
OKA4030022L

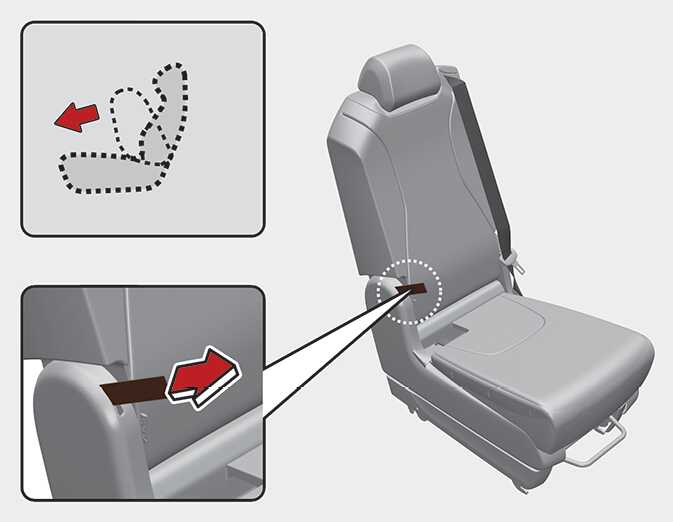

Figure 2. 2nd row center seat (for 8 seats)
OKA4030148L
Figure 3. 3rd row seat
OKA4030152L

To recline the seatback:

  1. Pull up the seatback recline lever (for 2nd row outboard seat) or strap (for 2nd row center or 3rd row seat).

  2. Hold the lever or strap and adjust the seatback to the position you desire.

  3. Release the lever or strap and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)
