Removing the seat (2nd row seat)

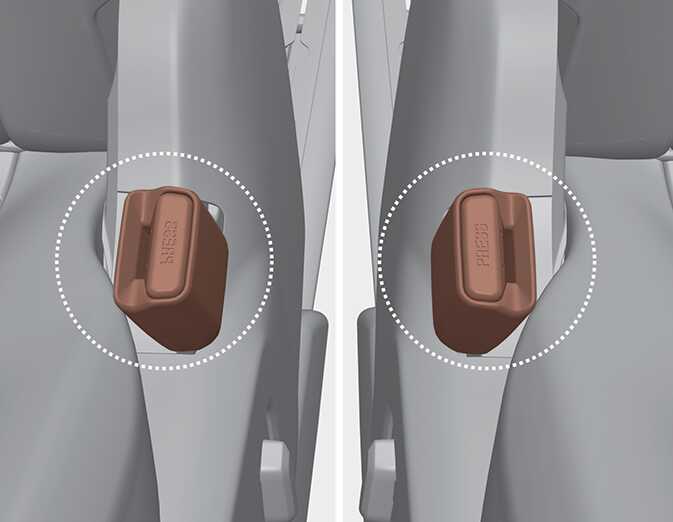

  1. Insert the seat belt buckle in the pocket between the rear seatback and cushion.

    OKA4030120L

  2. Lower the headrest to the lowest position.

  3. Slide the seat to the farthest forward.

  4. Fold the seat back by pulling up the reclining lever or strap.

  5. Pull the removal lever or strap and lift the rear portion of the seat cushion.

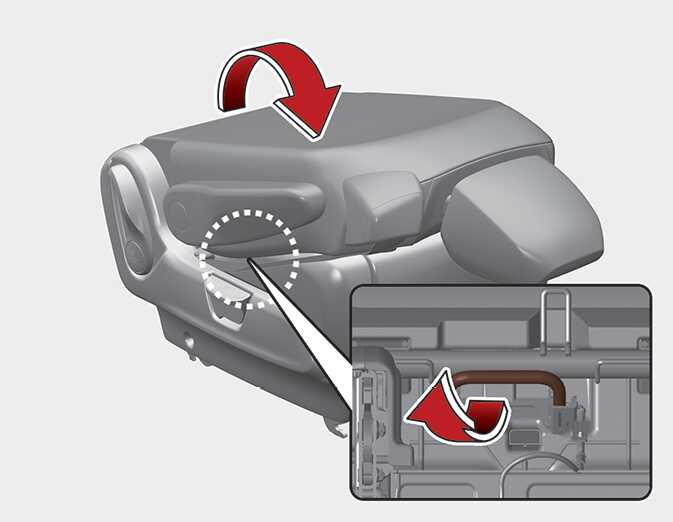

    Figure 1. 2nd row outboard seat
    OKA4030123N

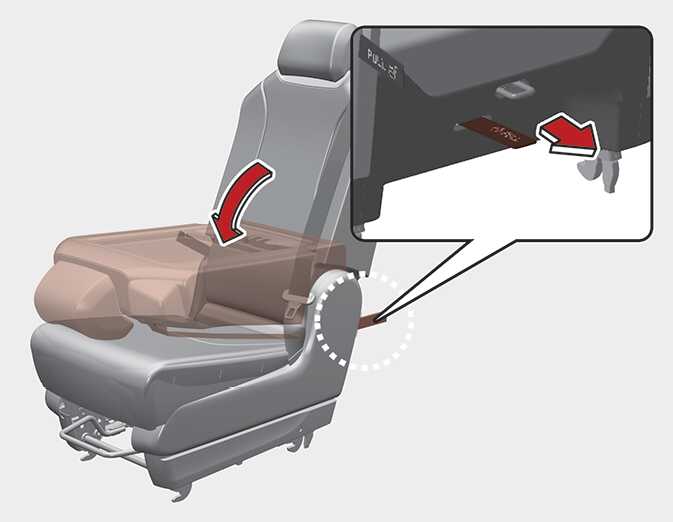

    Figure 2. 2nd row center seat
    OKA4030124N

  6. Remove the entire seat from the floor.
