Installing the seat (2nd row seat)
-

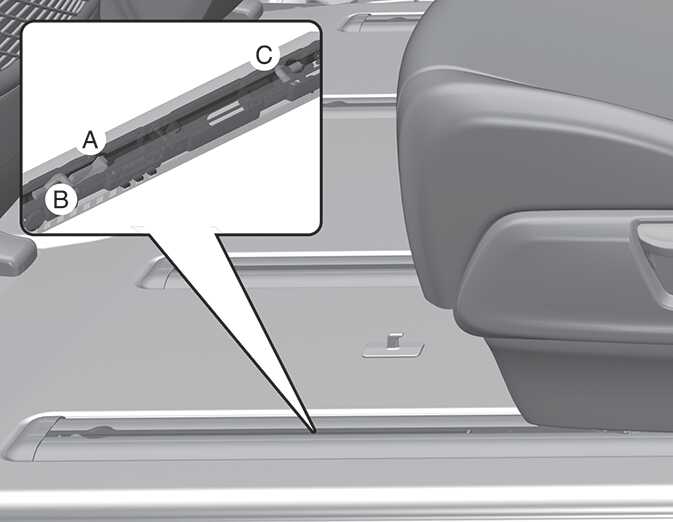

Put the front hook (1) on the front install guide (A) that inside rail on the floor.
OKA4030147N
OKA4040548N -
Insert two front hooks into the front strikers (B).
-

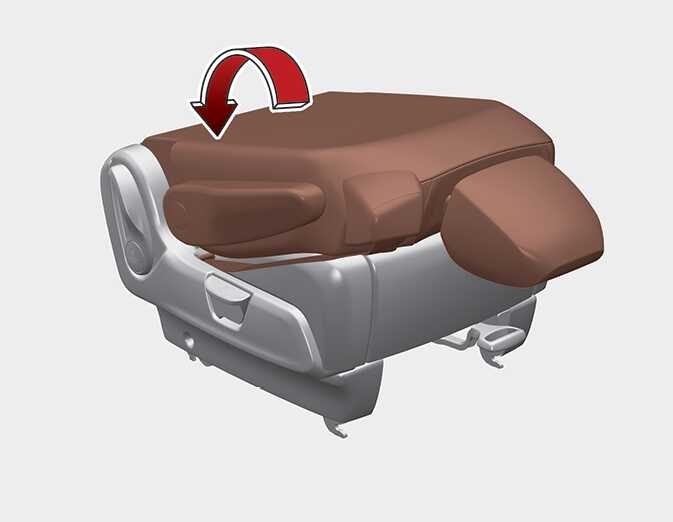

Lift the rear portion of the seat cushion then push down firmly to lock the catches into the rear strikers (C) until an audible "click" is heard.
OKA4030125L -

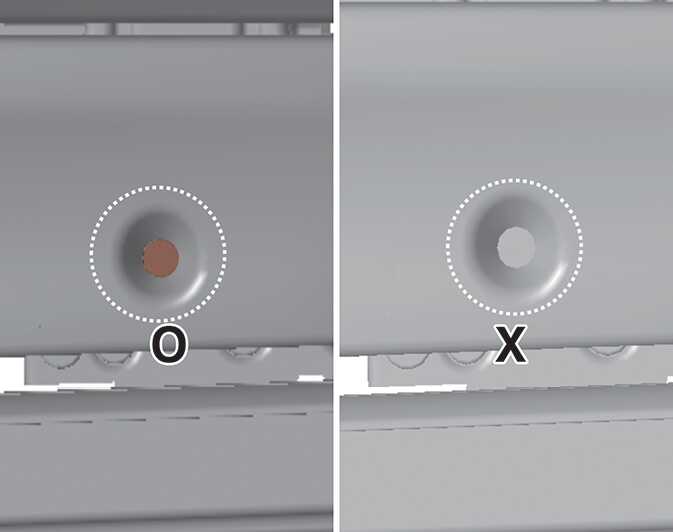

Make sure the green mark on the rear seat cushion frame is visible and the catches are locked in position by moving the seat forward and backward or lifting the front portion of the seat. If the green mark is invisible and the seat moves, it is not locked properly.
OKA4030149L -

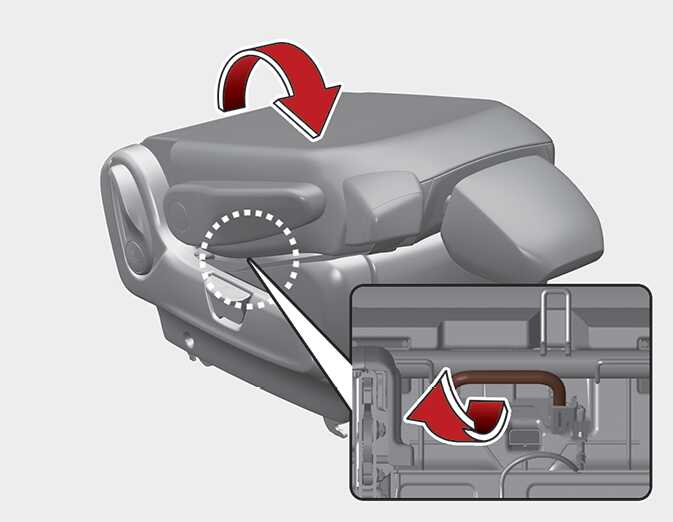

Pull up the seatback reclining lever or strap.
-
Lift and push the seatback backward firmly until it clicks into place. Make sure the seatback is locked in place.
-
Return the seat belt to the proper position.
Installing or removing the seat
-
Do not install or remove the 2nd row seat if there are occupants in the 3rd row seats, as this may injure occupants.
-
Fold seatback before installing the tumble seat.

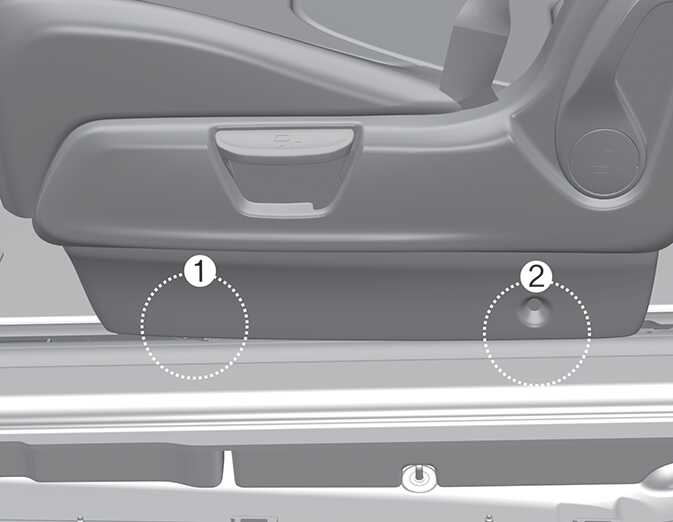

If the rear catches of the seat are locked into the rear anchors (2) while the front catches are not locked into the front anchors (1), do the followings to release the rear catches from the rear anchors.

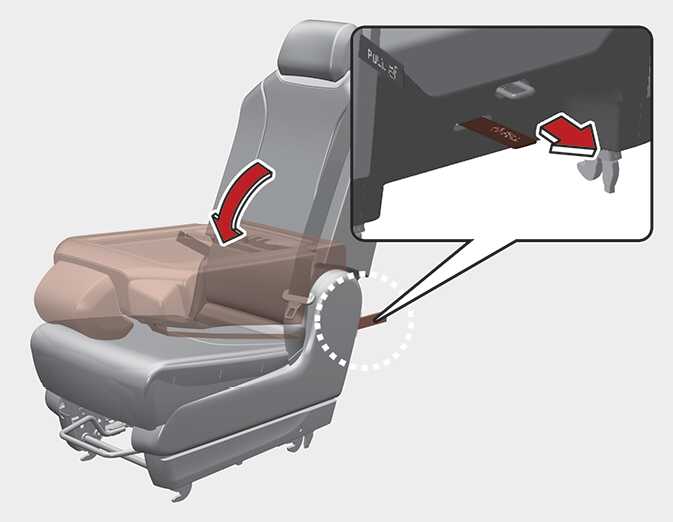

Pull the removal strap or lever and lift the rear portion of the seat cushion. Then the rear catches will be released. Remove the seat while lifting up the rear portion of seat cushion and then reinstalling the tumble seat.
