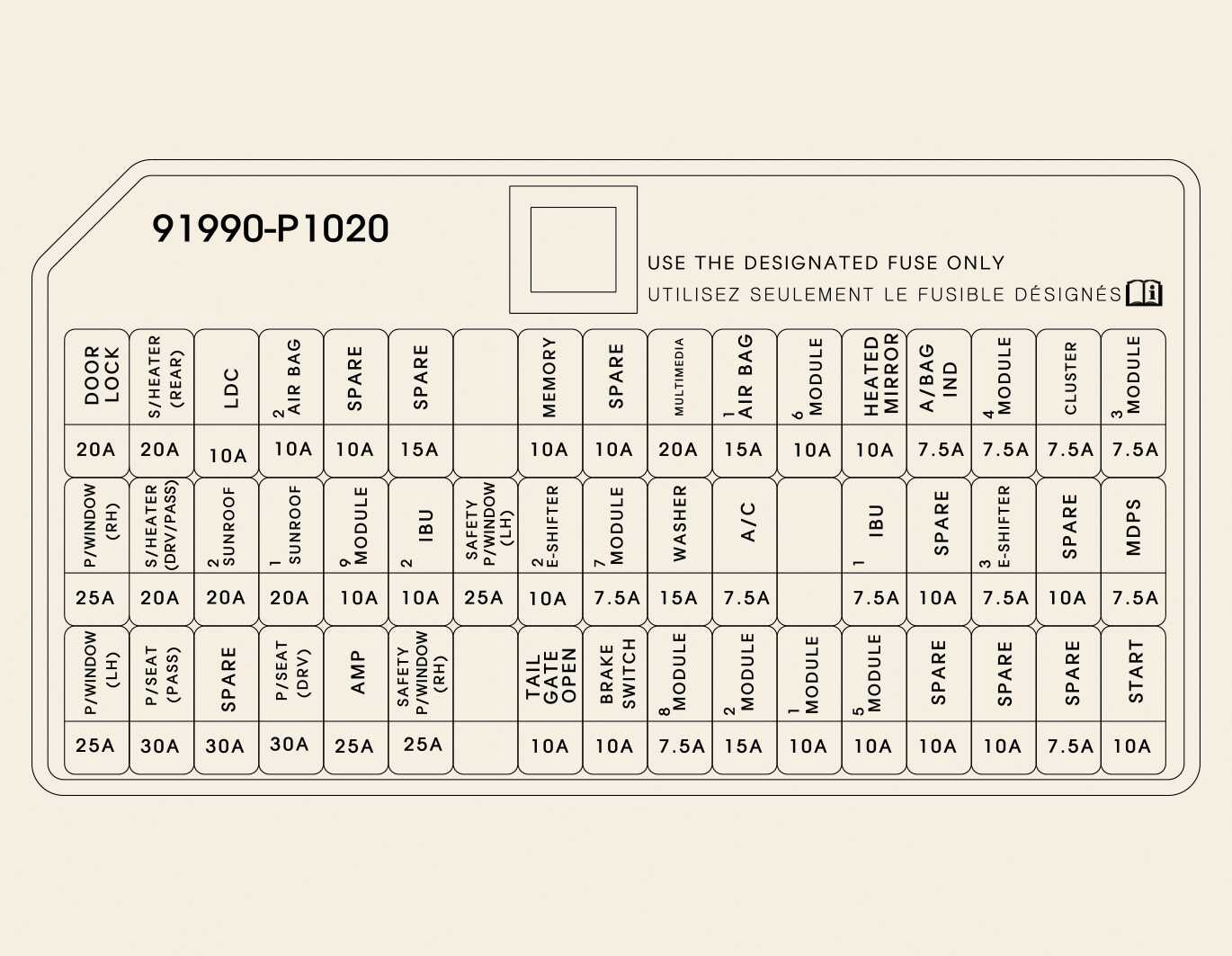

Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
DOOR LOCK |
20A |
Center Door Lock/Unlock Relay |
|
P/WINDOW RH |
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
P/WINDOW LH |
25A |
Power Window Main Switch |
|
S/HEATER (REAR) |
20A |
Rear Seat Warmer Control Module |
|
S/HEATER (DRV/PASS) |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
30A |
Passenger Power Seat Switch, Passenger Seat Relay Unit |
|
SUNROOF2 |
20A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF1 |
20A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
10A |
Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Liftgate Unit |
|
AMP (Amplifier) |
25A |
AMP (Amplifier) |
|
IBU (Integrated Body Control Unit)2 |
10A |
IBU (Integrated Body Control Unit), Ignition Switch, Auto Transmission Lever |
|
P/WINDOW SAFETY RH |
25A |
Passenger Safety Power Window Module |
|
P/WINDOW SAFETY LH |
25A |
Driver Safety Power Window Module |
|
MEMORY |
10A |
Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Console Mood Lamp, Mood Lamp (Passenger), Crash Pad Switch, Integrated Parking Assist Unit, Low Voltage DC-DC converter(450W) |
|
LIFTGATE |
10A |
Liftgate Relay |
|
MODULE7 |
7.5A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
10A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MULTIMEDIA |
20A |
Audio (Display), Audio/Video & Navigation Head Unit, Low Voltage DC-DC converter(200W) |
|
WASHER |
15A |
Multifunction Switch |
|
MODULE8 |
7.5A |
Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, E/R Junction Block (Windshield Heated Relay LH) |
|
AIRBAG1 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
Air Conditioner ON |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
15A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
MODULE6 |
10A |
Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shift Lever Indicator |
|
MODULE1 |
10A |
Intergrated Parking Assist Unit, IBU (Integrated Body Control Unit), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit, , Low Voltage DC-DC converter |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
IBU (Integrated Body Control Unit)1 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MODULE5 |
10A |
Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror, Low Voltage DC-DC converter |
|
AIRBAG IND |
7.5A |
Instrument Cluster |
|
MODULE4 |
7.5A |
IBU (Integrated Body Control Unit), Multifunction Front View Camera, Crash Pad Switch, Intergrated Parking Assist Unit, Front Corner Radar LH/RH, Clutch Module Cylinder Sensor, AWD (4 Wheel Drive) ECU (Electronic Control Unit), Head Lamp LH/RH, Rear Corner Radar LH/RH |
|
E-SHIFTER3 |
7.5A |
SCU (System Control Unit), Electronic Auto Transmission Shift Lever Switch |
|
CLUSTER |
7.5A |
Instrument Cluster |
|
MODULE3 |
7.5A |
Stop Lamp Switch, Overhead Console Lamp |
|
Motor Driven Power Steering *1 |
7.5A |
Motor Driven Power Steering Unit |
|
START |
10A |
Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay) |
|
LDC |
10A |
Low Voltage DC-DC converter, Audio/Video & Navigation Head Unit, Instrument Cluster, Front Wireless Charger, Air Conditioner Controller (LCD), Integrated Parking Assist Unit, Rear Coner Radar LH/RH |
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
