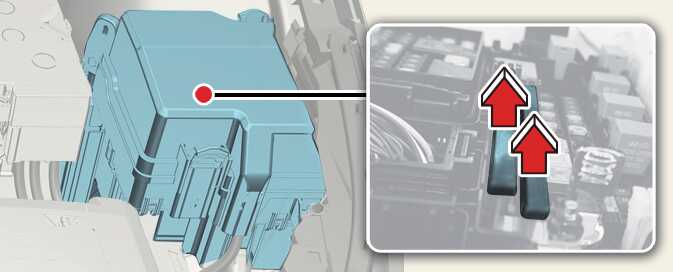

Engine compartment fuse panel

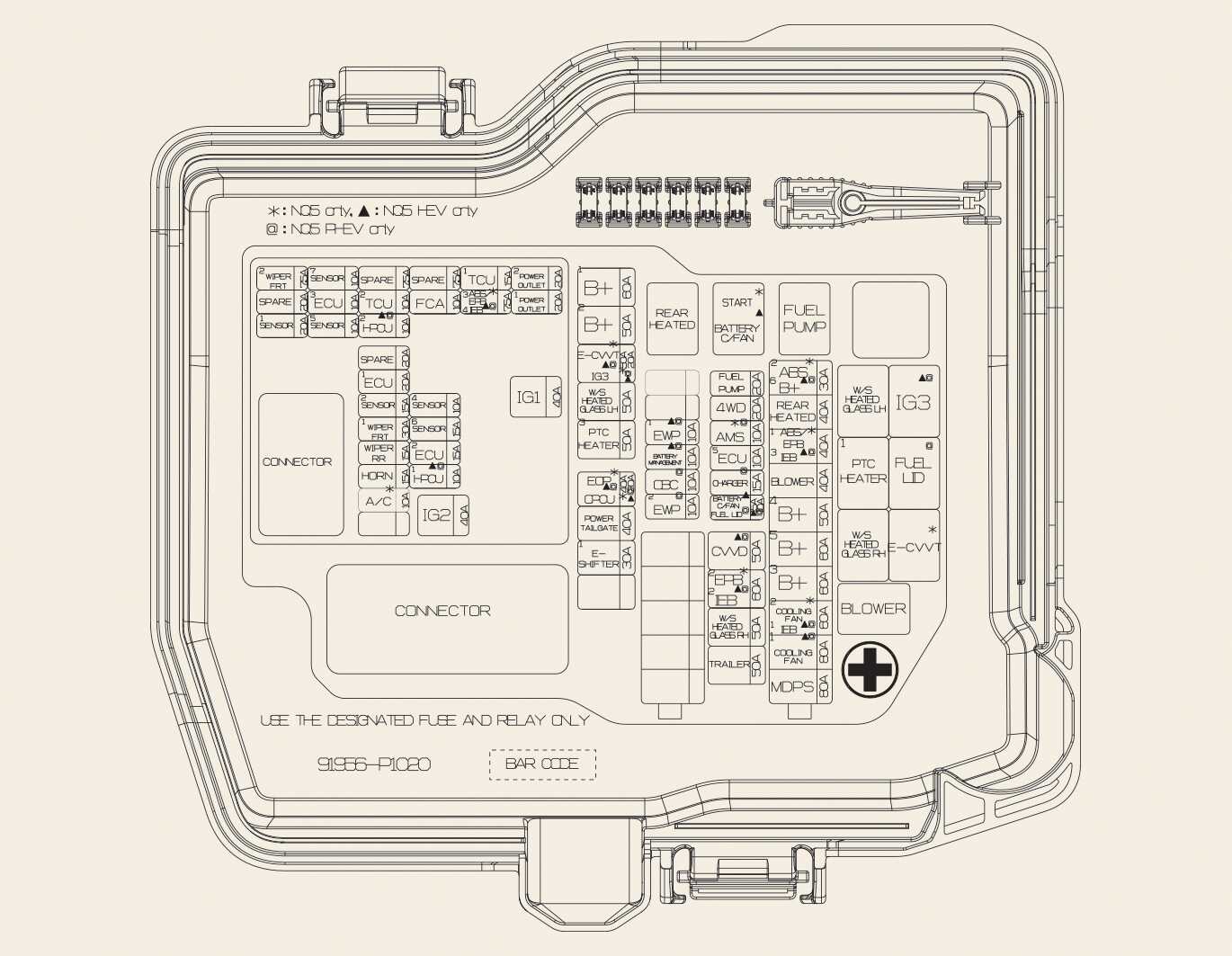

Engine Room Junction Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering *1 1 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN2 |
60A |
Cooling Fan Controller |
|
|
B+3 |
60A |
ICU Junction Block (Fuse - S/HEATER (Rear), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
B+5 |
60A |
PCB Block (Fuse - IG2, IG1, HORN, A/CON2, B/ALARM HORN, ECU2, Engine Control Relay, Wiper Main Relay) |
|
|
B+4 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (DRV/PASS), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, LIFTGATE, BRAKE SWITCH, Long Term Load Latch Relay), , Outside Mirror Folding/Unfolding Relay |
|
|
BLOWER |
40A |
Blower Relay |
|
|
ABS1/EPB1 |
40A |
ESP (Electronic Stability Program Control Module |
|
|
REAR HEATED |
40A |
Rear Heated Relay |
|
|
ABS2 |
30A |
ESP (Electronic Stability Program Control Module |
|
|
FUSE |
TRAILER1 |
50A |
Trailer Connector |
|
COOLING FAN1 |
50A |
Cooling Fan Relay High |
|
|
EPB2 |
60A |
ESP (Electronic Stability Program Control Module |
|
|
W/S HEATED GLASS RH |
50A |
Windshield Heated Relay RH |
|
|
ECU5 |
10A |
Not Used |
|
|
AMS |
10A |
Battery Sensor |
|
|
AWD |
20A |
AWD ECM (Engine Control Module) |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay |
|
|
Air ConditionerON1 |
10A |
Blower Relay, Air Conditioner Control Module |
|
|
E-SHIFTER1 |
30A |
SCU (System Control Unit) |
|
|
LIFTGATE |
40A |
Power liftgate Unit |
|
|
EOP |
40A |
Electronic Oil Pump |
|
|
PTC HEATER3 |
50A |
Fuel Filter Heating Relay |
|
|
W/S HEATED GLASS LH |
50A |
Cooling Fan Relay low (Nu Engine), DCU Relay (NEW R) |
|
|
E-CVVT |
50A |
PTC Heater Relay #2 (Diesel), E-CVVT Relay (Theta Engine) |
|
|
B+2 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
PCB Block
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
IG2 |
40A |
IG2 Relay |
|
IG1 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
7.5A |
Front Wiper (Low) Relay, IBU (Integrated Body Control Unit) |
|
SENSOR1 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
10A |
Electronic Oil Pump |
|
ECU3 |
10A |
Power train Control Module |
|
SENSOR5 |
10A |
Fuel Pump Relay, Oil Level Senosr |
|
TCU2 |
10A |
Not Used |
|
TCU3 |
10A |
Not Used |
|
SENSOR3 |
20A |
Not Used |
|
ECU1 |
20A |
Power train Control Module |
|
SENSOR2 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
15A |
Horn Relay |
|
Air ConditionerON2 |
10A |
Air Conditioner Comp Relay |
|
FCA |
10A |
Front Radar |
|
SENSOR4 |
10A |
Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
|
SENSOR6 |
15A |
Injector #1 ~ #4 |
|
ECU2 |
15A |
Power train Control Module |
|
TCU1 |
15A |
Power train Control Module |
|
ABS3/EPB3 |
7.5A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
20A |
Luggage Power Outlet |
Relay
Refer to the following table for the relay type.
|
Relay Name |
TYPE |
|---|---|
|
Rear Heated Relay |
MICRO |
|
Start Relay |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Windshield Heated Relay LH |
MICRO |
|
PTC Heater Relay #1 |
MICRO |
|
Windshield Heated Relay RH |
MICRO |
|
E-CVVT Relay (Theta Engine) |
MICRO |
|
Blower Relay |
MICRO |
