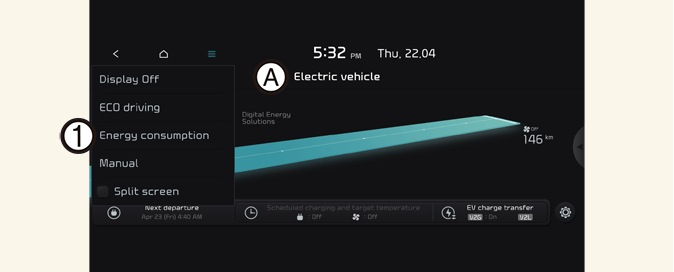

In order to check the current energy consumption for each system of the vehicle, select Menu → Energy consumption on the screen.

A: Electric Vehicle

1. Energy consumption

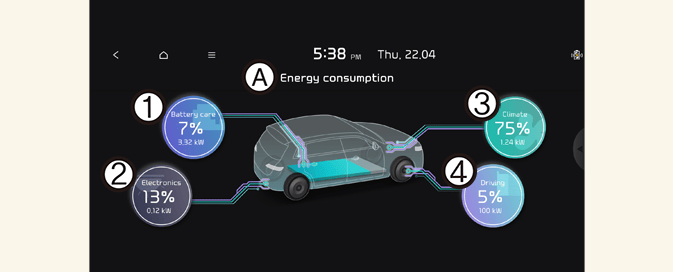

A: Energy consumption

1. Battery care

2. Electronics

3. Climate

4. Driving

1. Battery care shows the momentary power and energy consumption which are used when:

   • Operating the winter mode to increase the battery temperature during winter to improve the driving performance.

   • Cooling down the battery temperature during summer to prevent over temperature of the battery.

2. Electronics shows the power and energy consumption which are used by the vehicle systems including the cluster, infotainment system (speaker and navigation), headlamp, vehicle control unit, etc.

3. Climate shows the power and energy consumption which are used by the heater or air conditioner.

4. Driving shows the total power and energy consumption of the driving motor's driving energy and regenerative energy.
