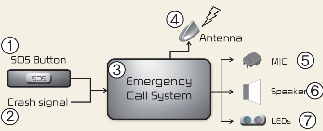

1. SOS Button

2. Crash signal

3. Emergency Call System

4. Antenna

5. MIC

6. Speaker

7. LEDs

Overview of the 112-based eCall in-vehicle system, its operation, and its functionality: refer to this section. The 112-based eCall service is a generally available public service and is accessible free of charge.

The 112-based eCall in-vehicle system is activated by default. It is activated automatically by means of in-vehicle sensors in the event of a severe accident.

It will also be triggered automatically if the vehicle is equipped with a TPS system that does not function in the event of a severe accident.

The 112-based eCall in-vehicle system can also be triggered manually, if necessary. Instructions for manual activation of the system: refer to this section.

In the event of a critical system failure that would disable the 112-based eCall in-vehicle system, the following warning will be given to the occupants of the vehicle: refer to this section.
