Suitability of each seating position for belted & ISOFIX Child Restraint Systems according to UN regulations (Information for vehicle users and CRS manufacturers) (for vehicle equipped with ISOFIX)
|
CRS categories |
Seating positions |
||||||
|---|---|---|---|---|---|---|---|
|
1, 2 |
3 |
4 |
5 |
6 |
|||
|
Power |
Manual |
||||||
|
Universal belted CRS |
- |
Yes*1 F, R |
No |
Yes F, R |
Yes F |
Yes F, R |
|
|
i-Size CRS (with support leg) |
ISOFIX (F2,F2X,R1,R2) |
- |
No |
No |
No |
No |
No |
|
ISOFIX infant CRS (i.e., CRS for a baby) |
ISOFIX (R1) |
- |
No |
No |
Yes R |
No |
Yes R |
|
Carry cot (ISOFIX lateral facing CRS) |
ISOFIX (L1,L2) |
- |
No |
No |
No |
No |
No |
|
ISOFIX toddler CRS - small |
ISOFIX (F2,F2X, R2) |
- |
No |
No |
Yes F, R |
No |
Yes F, R |
|
ISOFIX toddler CRS - large* (*: not booster seats) |
ISOFIX (F3, R3) |
- |
No |
No |
Yes F, R*2 |
No |
Yes F, R More Details |
|
Booster seat-Reduced width |
ISO/B2 |
- |
No |
No |
Yes |
No |
Yes |
|
Booster seat-Full width |
ISO/B3 |
- |
No |
No |
Yes |
No |
Yes |
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the passenger air bag is deactivated.
* It is recommended to remove the head restraint, when CRS is unstable due to head restraint.
|

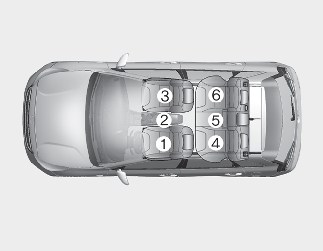

Seat Number |
Position in the vehicle |
|---|---|
|
1 |
Front left |
|
2 |
Front center |
|
3 |
Front right |
|
4 |
2nd row left |
|
5 |
2nd row center |
|
6 |
2nd row right |
