Stowing the rear seat belt

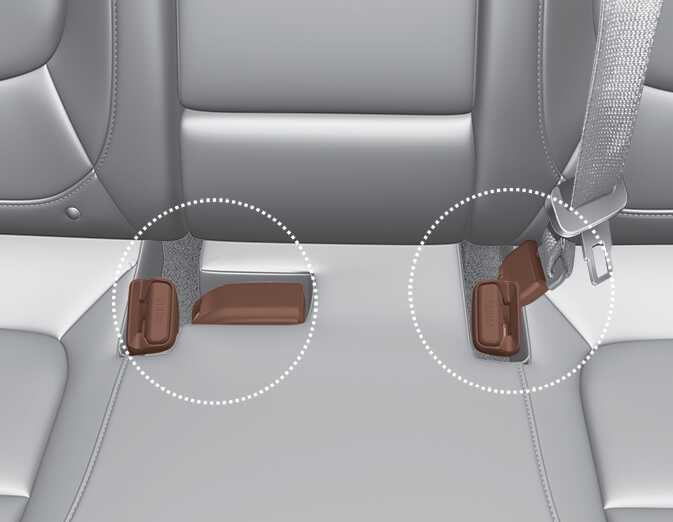

Figure 1. 2nd row seat (for 5 seats)
OSP2039019

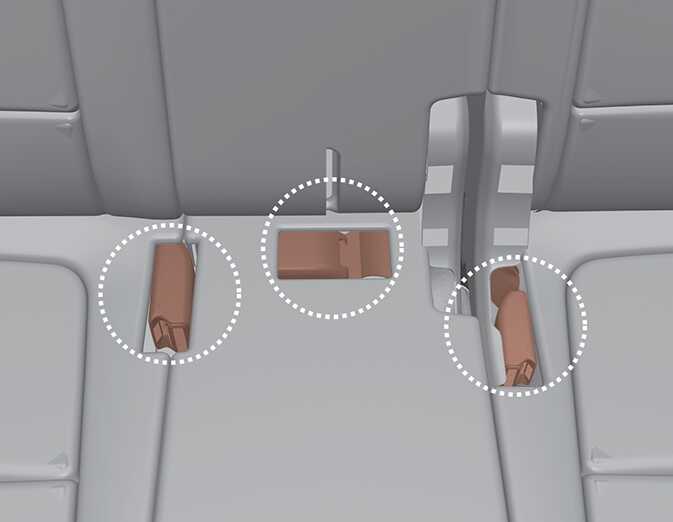

Figure 2. 2nd row seat (for 7 seats)
OQYi030051R0

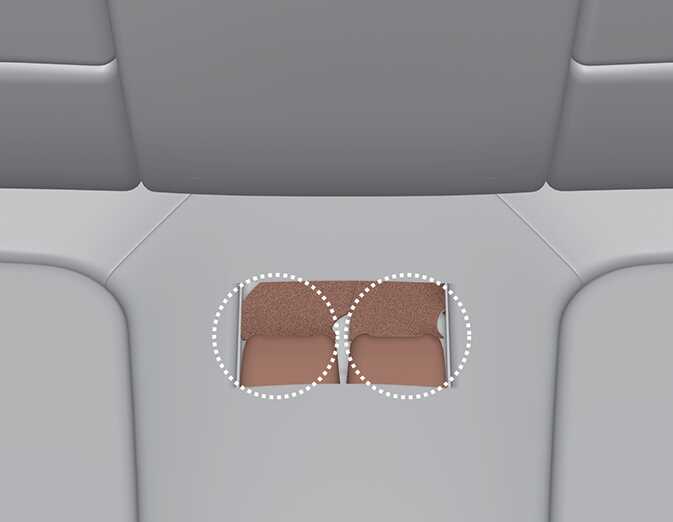

Figure 3. 3rd row seat (for 7 seats)
OQYi030052R0

The rear seat belt buckles can be stowed in the pocket between the rear seatback and cushion when not in use.

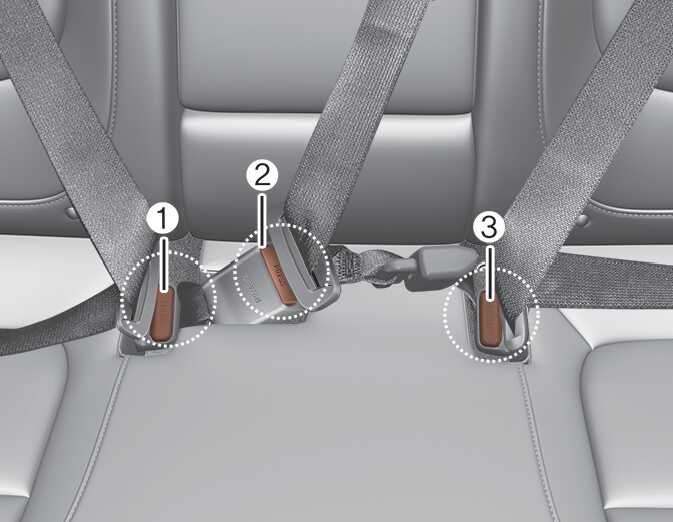

Figure 4. 2nd row seat (for 5 seats)
OSP2039023

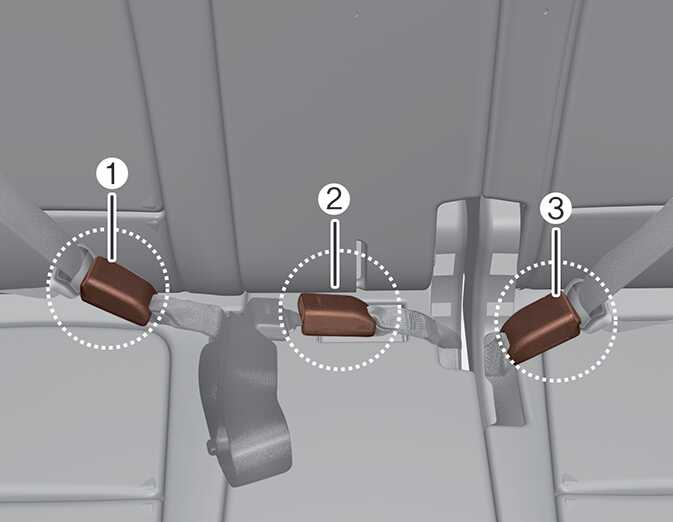

Figure 5. 2nd row seat (for 7 seats)
OQYi030059R

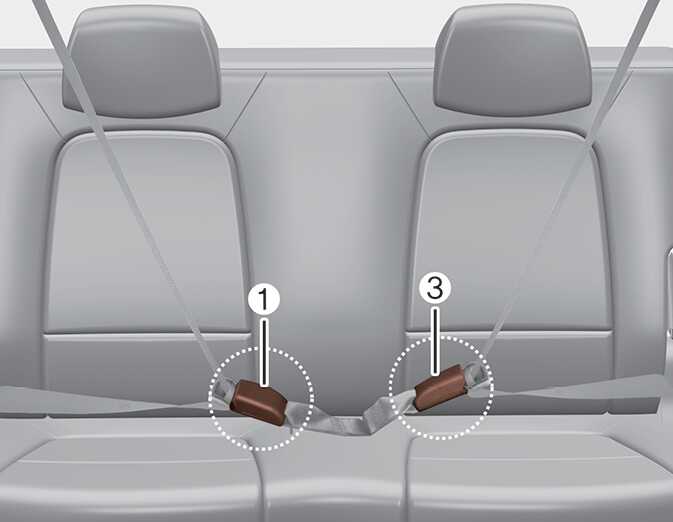

Figure 6. 3rd row seat (for 7 seats)
OQYi030060R

The seat belt should be locked into the buckle on each seat cushion to be properly fastened.

  1. Rear right seat belt fastening buckle

  2. Rear centre seat belt fastening buckle

  3. Rear left seat belt fastening buckle

WARNING

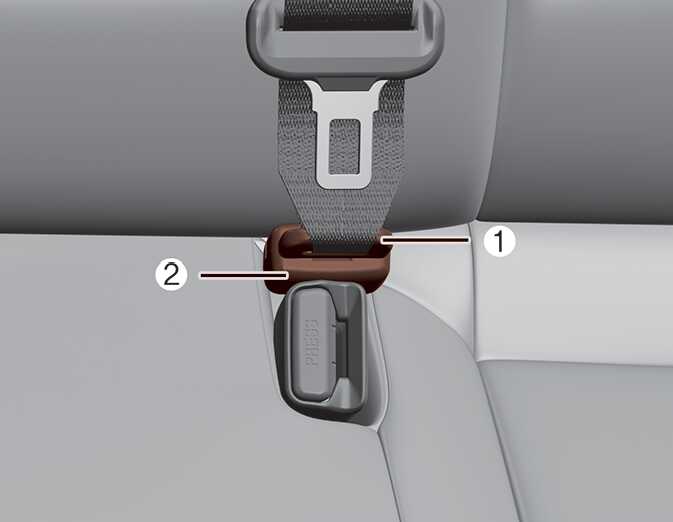

3-point type rear centre seat belt

OSK3038053NR

Do not separate the mini tongue (1) and mini buckle (2) even if there is not an occupant. If it is separated, It may hit the rear seat occupants in a collision or sudden stops.
