Lighting control

The light switch has a headlight and a position lamp position.

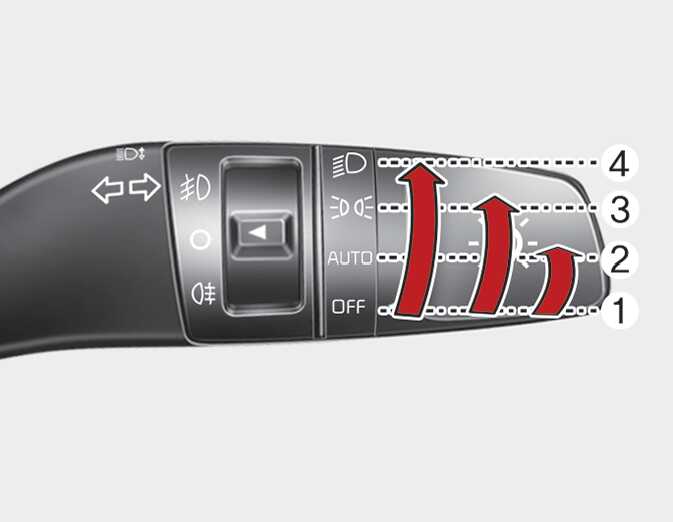

OSP2I049048R

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

  1. OFF position

  2. Auto light position (if equipped)

  3. Position & Tail lamp

  4. Headlight position

Position & Tail lamp

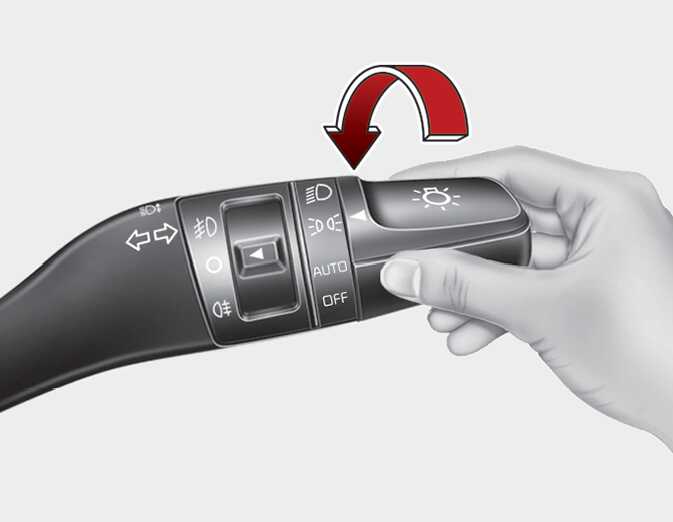

OSP2I049049R

When the light switch is in the position lamp position, the front position lamp, tail, license light will turn ON.

Head light (Low Beam)

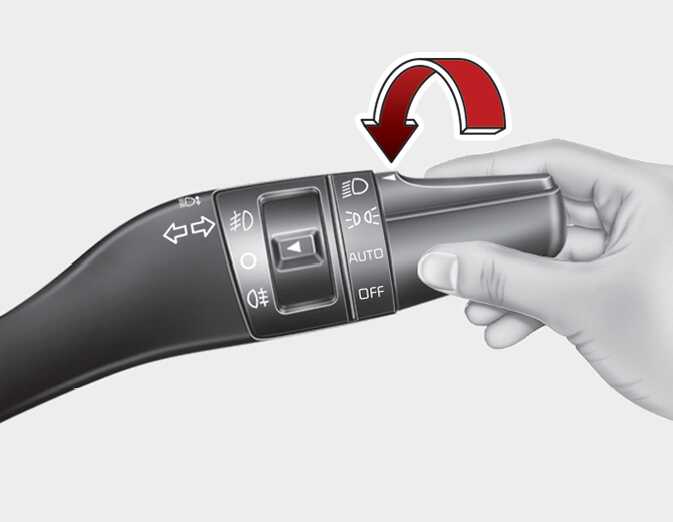

OSP2I049050R

When the light switch is in the head light position, head light (low beam), tail, license light will turn ON.

NOTE

The ignition switch must be in the ON position to turn on the headlights.

Auto light: (if equipped)

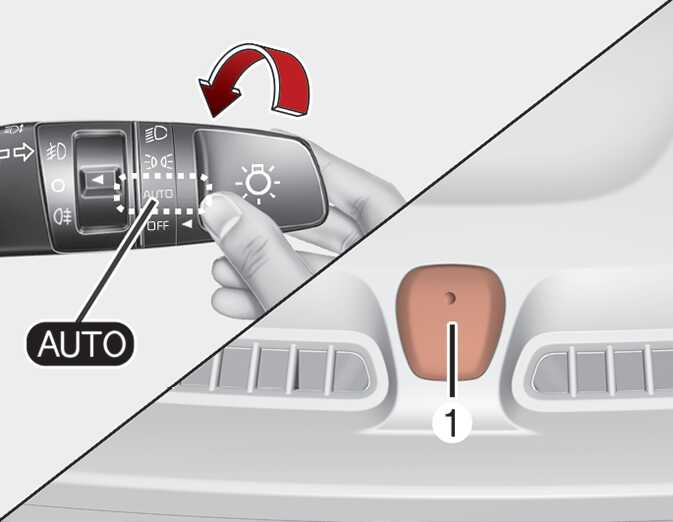

OQYi040033R

When the light switch is in the AUTO light position, the taillights and headlights will turn ON or OFF automatically depending on the amount of light outside the vehicle.

CAUTION

  • Never place anything over the sensor (1) located on the instrument panel as this will ensure better auto-light function control.

  • Don't clean the sensor using a window cleaner, the cleaner may leave a light film which could interfere with sensor operation.

  • If your vehicle has window tint or other types of metallic coating on the front windscreen, the Auto light function may not work properly.
