Forward Collision-Avoidance Assist settings

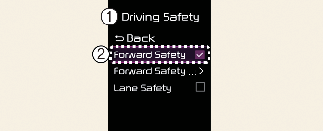

Forward safety

A: Driver Assistance

  1. Driving Safety

  2. Forward Safety

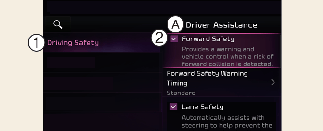

With the vehicle on, touch Settings → Driver Assistance → Driving Safety on the instrument cluster or Settings → Vehicle → Driver Assistance → Driving Safety on the infotainment system. The initial warning activation timing of Forward Collision-Avoidance Assist can be changed.

  • Forward Safety: Depending on the collision risk levels, an audible warning will sound and the braking will be assisted. If the following menu is deactivated, Forward Collision-Avoidance Assist will turn off and the warning light () will appear on the cluster.

The driver can monitor Forward Collision-Avoidance Assist On/Off status from the Settings menu. If the warning light () remains ON when Forward Collision-Avoidance Assist is on, have the vehicle inspected by an authorized Kia dealer.

WARNING

When the vehicle is restarted, Forward Collision-Avoidance Assist will always turn on. However, if Forward safety is deselected, the driver should always be aware of the surroundings and drive safely.

NOTICE

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

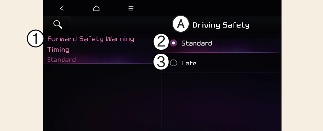

Forward Safety Warning Timing

A: Driving Safety

  1. Forward Safety Warning Timing

  2. Standard

  3. Late

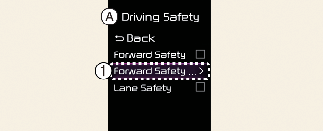

With the vehicle on, touch Settings → Driver Assistance → Driving Safety → Forward Safety Warning Timing on the instrument cluster or Settings → Vehicle → Driver Assistance → Driving Safety → Forward Safety Warning Timing on the infotainment system to change the initial warning activation timing of Forward Collision-Avoidance Assist.

  • Use Standard in normal driving conditions. If the Warning Timing seems sensitive, change it to Late.

  • If Late is selected, Forward Collision-Avoidance Assist, warns the driver more slowly.

NOTICE

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Warning Sound and Haptic

A: Driver Assistance

  1. Warning Sound and Haptic

  2. Warning Volume

  3. Driving Safety Priority

With the vehicle on, touch Settings → Vehicle → Driver Assistance → Warning Style on the infotainment system to change the Warning Style.

  • Warning Volume: You can adjust the Warning Volume from level 1 to 3. If equipped with steering wheel vibration, the volume level can be set from 0 to 3.

  • Driving Safety Priority: For safe driving, the audio volume will temporarily decrease to warn the driver with the audible warning.

NOTICE

  • Ensure that Warning Style you have set may apply to the Warning volume of other Driver Assistance systems.

  • Warning Style will maintain its last setting even if the vehicle is restarted.

  • If not equipped with the navigation system, select User Settings → Driver Assistance to adjust the Warning Volume.

  • The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

  • Descriptions of each Driver Assistance system may be slightly different from the owner's manual after updating the software of your infotainment system. In this case, scan the QR code in the infotainment system manual to access the web manual for checking the changes.
