Rear View Monitor settings
Warning Sound and Haptic

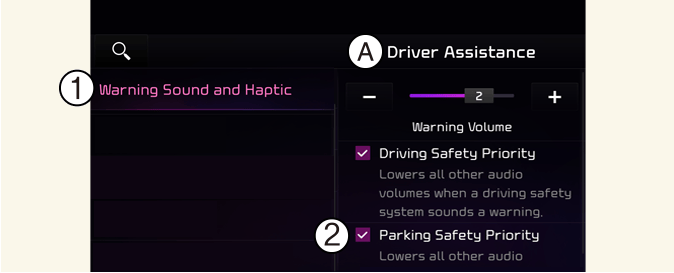

A: Driver Assistance
-
Warning Sound and Haptic
-
Parking Safety Priority
With the vehicle on, touch Settings → Vehicle → Driver Assistance → Warning Style on the infotainment system to change the Warning Style.
-
Parking Safety Priority: For safe parking, the audio volume will temporarily decrease while Rear View Monitor is operating.
-
If not equipped with the navigation system, select User Settings → Driver Assistance to adjust the Warning Volume.
-
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.
-
Descriptions of each Driver Assistance system may be slightly different from the owner's manual after updating the software of your infotainment system. In this case, scan the QR code in the infotainment system manual to access the web manual for checking the changes.

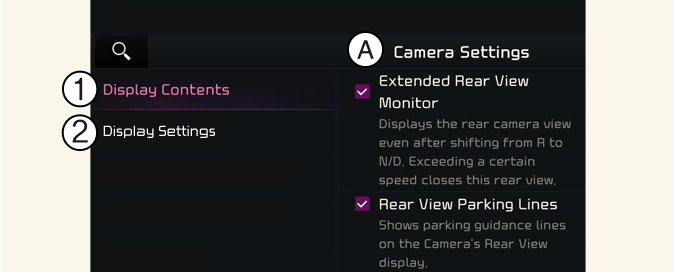

Camera settings
A: Camera Settings
-
Display Contents
-
Display Settings
You can change Rear View Monitor 'Display Contents' by touching the setup icon (
) on the screen while Rear View Monitor is operating, or touching Settings → Vehicle → Driver assistance → Parking safety → Camera settings on the infotainment system
-
Display Contents: To change the settings of Rear view parking guide and Extended rear camera use.
-
Display Settings: To change the screen's brightness and contrast.
The settings menu may not be depending on the specifications of the vehicle specifications.
The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.
Display Contents
Rear View Parking Guide
Rear View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the rear view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
Top View Parking Guide Lines
If Rear View Parking Guide Lines is selected, the top view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal scale of rear top view paring guide indicates the liftgate opening distance, 1.5 m (4.9 ft.) from the vehicle.
Extended Rear View Monitor
If Extended Rear View Monitor is selected, Rear View Monitor keeps displaying the rear view when shifting from R (Reverse) to N (Neutral) or D (Drive). When exceeding a certain speed, the rear view stops displaying.
