Rear View Monitor Operation

Rear view with parking guidance

The function will operate when the following conditions are satisfied:

  • ENGINE START/STOP button in the ON position

  • The gear is changed to R (Reverse) and the back up light turns on

Extended Rear View Monitor

  • When parking, the rear view will maintain showing on the screen if the following conditions are satisfied:

    • The gear is changed from R (Reverse) to N (Neutral) or D (Drive)

    • Vehicle speed is below 10 km/h (6 mph)

  • The rear view will turn off when vehicle speed is above 10 km/h (6 mph).

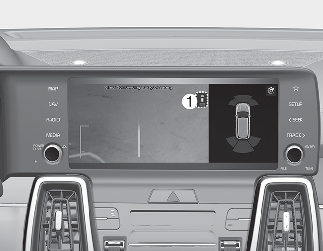

Rear top view

When you touch the icon (1), the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
