How to check the symbol on the charging label (if equipped)
|
Vehicle charging INLET |
Charging connector OUTLET |
|---|---|
 |
  <Symbol location and application example> |
 |
Precautions for charging AC and Trickle charger (Portable charging cable) (AC charging)
-

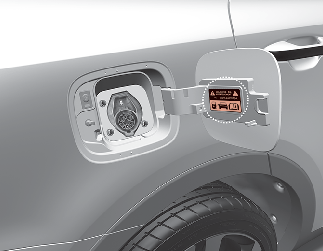

After opening the charging door, check the charging symbol at the bottom of the warning label.
-

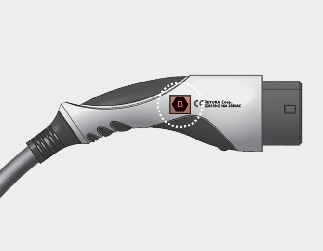

Check the charging connector symbol of the AC and Trickle charger cable.
-
After checking the alphabet letter of the charging symbol, proceed the charging step.
* Refer to More Details.
-
Risk of failure, fire, injury, etc. expected when using the charging connector with unmatched symbol.
Electric charging label
The electric charging label is attached on the charging door.
1 ~ 3: Warning for high voltage
4: Charging voltage and current - (
) AC single phase.
5: Identifier for charging door.
6: For more details, refer to More Details.
Electric charging label symbol table
|
Supply Type |
Configuration |
Type of Accessory |
Voltage range |
Identifier |
|---|---|---|---|---|
|
AC |
5P |
Vehicle connector and vehicle inlet |
≤250 V RMS |
|
