Engine compartment

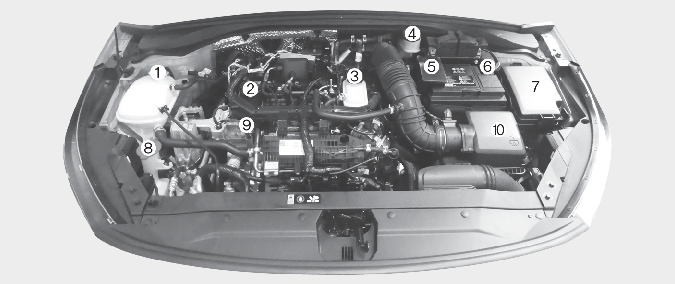

Smartstream G1.0 T-GDi / Smartstream G1.0 T-GDi MHEV
* The actual engine cover in the vehicle may differ from the illustration.

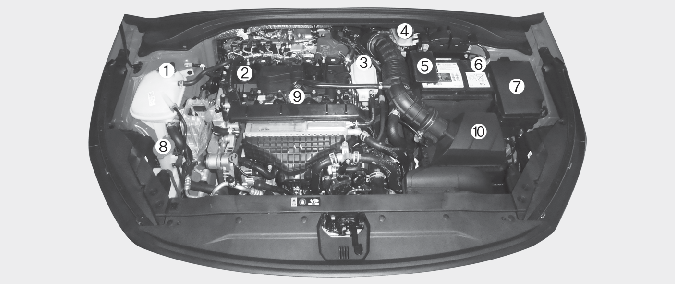

Smartstream 1.6 T-GDi
-
Engine coolant reservoir More Details
-
Engine oil filler cap More Details
-
Intercooler coolant reservoir More Details
-
Brake/clutch fluid reservoir More Details
-
Positive battery terminal More Details
-
Negative battery terminal More Details
-
Fuse box More Details
-
Windshield washer fluid reservoir More Details
-
Engine oil dipstick More Details
-
Air cleaner More Details
