Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

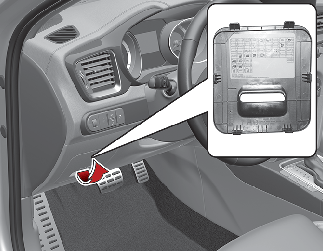

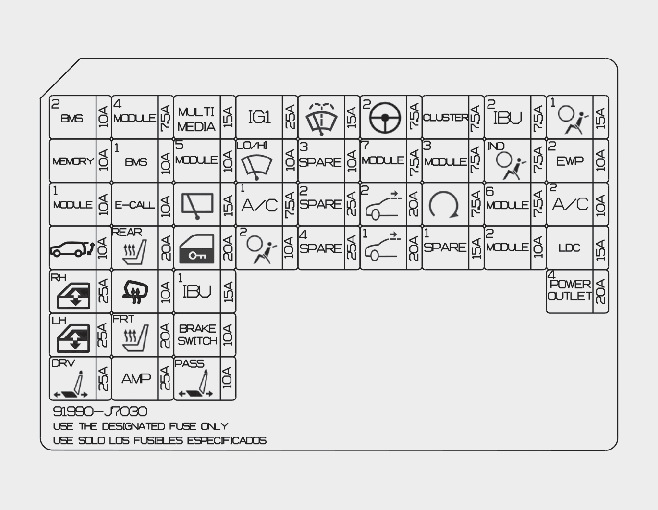

Driver’s side fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
BATTERY MANAGEMENT 2 |
 |
10 A |
BMS (Battery Management System) |
|
MEMORY 1 |
 |
10 A |
Air Conditioner Control Module |
|
MODULE 1 |
 |
10 A |
Rain Sensor, Driver IMS, Power Tail Gate Module, Data Link Connector, Instrument Cluster, Hazard Switch, ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Auto Light & Photo Sensor, Console Switch, Driver/Passenger Smart Key Outside Handle |
|
TAIL GATE |
 |
10 A |
Tail Gate Relay |
|
POWER WINDOW RH |
 |
25 A |
Power Window Right Handle side Relay, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module Right Handle side |
|
POWER WINDOW LH |
 |
25 A |
Power Window Left Handle side Relay, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module Left Handle side |
|
POWER SEAT DRIVER |
 |
25 A |
Driver IMS (Integrated memory system) Module, Driver Seat Manual Switch |
|
MODULE 4 |
 |
7.5 A |
Lane Keeping Assist Unit, Rear Corner Radar LH/RH, Crash Pad Switch, IBU (Integrated Body Control Unit), Electric Parking Brake Switch, Dosing Control Module, Front Radar |
|
BATTERY MANAGEMENT 1 |
 |
10 A |
BMS (Battery Management System) |
|
E-CALL |
 |
10 A |
MTS (Mozen Telematics System) E-Call Module |
|
SEAT HEATER REAR |
 |
20 A |
Rear Seat Warmer Control Module |
|
HEATED MIRROR |
 |
10 A |
Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SEAT HEATER FRONT |
 |
20 A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
AMP |
 |
25 A |
Low DC (Direct Current)-DC (Direct Current) Converter (AMP (Amplifier)), AMP (Amplifier) |
|
MULTI MEDIA |
 |
15 A |
Low DC (Direct Current)-DC (Direct Current) Converter (Audio/AMP (Amplifier)), Audio, Audio/Video & Navigation Head Unit |
|
MODULE 5 |
 |
10 A |
Rear Seat Warmer Control Module, MTS (Mozen Telematics System) E-Call Module, Electro Chromic Mirror, Audio, Audio/Video & Navigation Head Unit, Wireless Charger, Crash pad Switch, Multifunction Switch, Air Conditioner Control Module, Low DC (Direct Current)-DC (Direct Current) Converter (Audio/AMP (Amplifier)), Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Driver IMS (Integrated memory system) Module, Head Lamp Left Handle side/Right Handle side |
|
REAR WIPER |
 |
15 A |
Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay) |
|
DOOR LOCK |
 |
20 A |
Door Lock/Unlock Relay |
|
IBU 1 |
 |
15 A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
 |
10 A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
POWER SEAT PASSENGER |
 |
10 A |
Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
|
IG 1 |
 |
25 A |
Engine Room Junction Block (Fuse - ECU5, SENSOR4, ABS3, TCU2) |
|
WIPER |
 |
10 A |
Engine Room Junction Block (Front Wiper (Low) Relay), Front Wiper Motor, IBU (Integrated Body Control Unit), ECM (Engine Control Module)/PCM (Power train Control Module) |
|
AIR CONDITIONER 1 |
 |
7.5 A |
Engine Room Junction Block (COOLING FAN 3 Relay, PTC HEATER 2 Relay, BLOWER Relay, PTC HEATER 1 Relay, PTC HEATER 3 Relay), Air Conditioner Control Module |
|
AIR BAG 2 |
 |
10 A |
SRS (Supplemental Restraint System) Control Module |
|
WASHER |
 |
15 A |
Multifunction Switch |
|
MDPS2*1 |
 |
7.5 A |
MDPS (Motor Driven Power Steering) Unit |
|
MODULE 7 |
 |
7.5 A |
Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Front Heated ,Cooling Fan Motor |
|
SUNROOF 2 |
 |
20 A |
Panorama Sunroof Motor |
|
SUNROOF 1 |
 |
20 A |
Panorama Sunroof Motor |
|
CLUSTER |
CLUSTER |
7.5 A |
Instrument Cluster |
|
MODULE 3 |
 |
7.5 A |
Sport Mode Switch, Stop Lamp Switch |
|
START |
 |
7.5 A |
Inhibitor Switch , Transmission Range Switch, Engine Room Junction Block (PDM 3 (IG1) Relay), IBU (Integrated Body Control Unit), ECM (Engine Control Module), PCM (Power train Control Module) |
|
IBU 2 |
 |
7.5 A |
IBU (Integrated Body Control Unit) |
|
AIR BAG INDICATOR |
 |
7.5 A |
Instrument Cluster, Hazard Switch |
|
MODULE 6 |
 |
7.5 A |
IBU (Integrated Body Control Unit) |
|
MODULE 2 |
 |
10 A |
Audio, Audio/Video & Navigation Head Unit, Low DC (Direct Current)-DC (Direct Current) Converter (Audio/AMP (Amplifier)), IBU (Integrated Body Control Unit), MTS (Mozen Telematics System) E-Call Module, USB Charger Rear, Engine Room Junction Block (POWER OUTLET Relay), AMP (Amplifier), Power Outside Mirror Switch |
|
AIR BAG 1 |
 |
15 A |
SRS (Supplemental Restraint System) Control Module |
|
EWP 2 |
|
10 A |
EWP MODULE |
|
AIR CONDITIONER 2 |
 |
10 A |
Engine Room Junction Block (BLOWER Relay), Air Conditioner Control Module, Blower Resistor, Blower Motor, ECM (Engine Control Module)/PCM (Power train Control Module) |
|
LDC |
 |
15 A |
Audio, Audio/Video & Navigation Head Unit, Instrument Cluster, Air Conditioner Control Module, Low DC (Direct Current)-DC (Direct Current) Converter (Audio/AMP (Amplifier)) |
|
POWER OUTLET |
 |
20 A |
Front Power Outlet, Power Outlet Left Handle side |
* 1: MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).

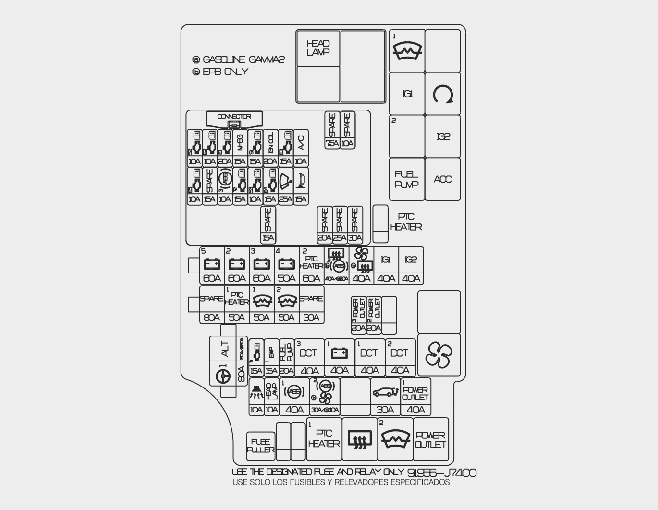

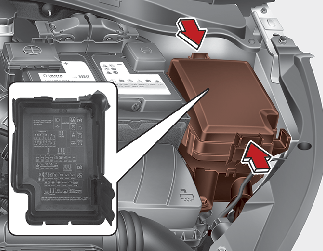

Engine compartment fuse panel

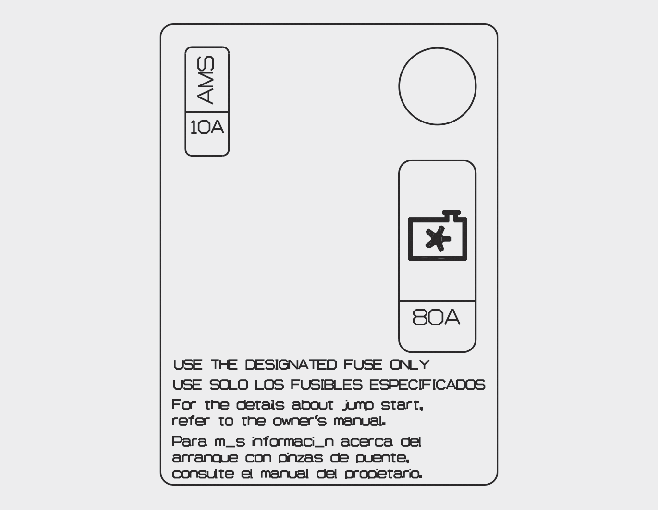

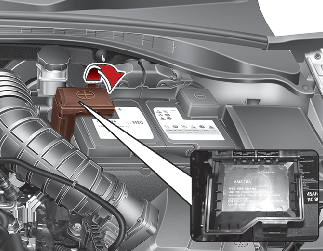

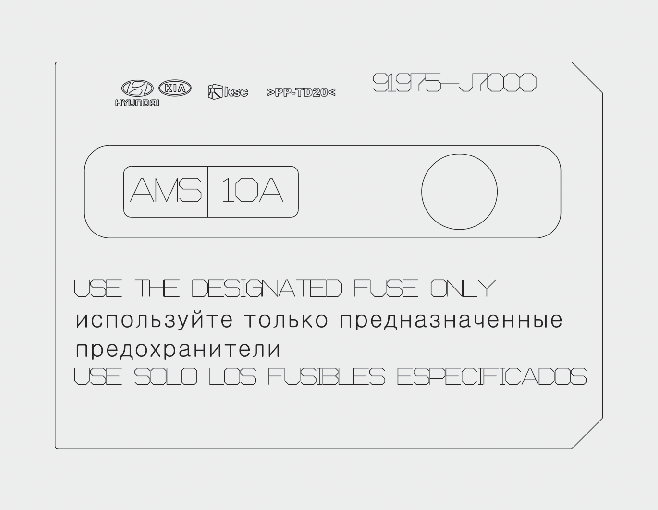

Engine compartment fuse panel (Battery terminal cover)
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
ALTERNATOR |
ALT |
150/180 A |
Fuse: BURGLAR ALARM, HEAD LAMP HIGH, ABS1, ABS2, POWER TAIL GATE MODULE, POWER OUTLET1, Alternator |
|
MDPS*1 |
 |
80 A |
MDPS (Motor Driven Power Steering) Unit |
|
BATTERY 5 |
 |
60 A |
Fuse: Main Relay, ECU 3, ECU 4, Air Conditioner Compressor, WIPER, HORN |
|
BATTERY 2 |
 |
60 A |
Instrument Panel Junction Block |
|
BATTERY 3 |
 |
60 A |
Instrument Panel Junction Block |
|
BATTERY 4 |
 |
50 A |
Instrument Panel Junction Block (Fuse: TAIL GATE, POWER WINDOW RH, POWER WINDOW LH, POWER SEAT DRIVER, SEAT HEATER FRONT, AMP, POWER SEAT PASSENGER, SUNROOF2, SUNROOF1) |
|
REAR HEATED |
 |
40 A |
REAR HEATED Relay |
|
ABS 2 |
|
30 A |
ABS (Antilock Brake System) Module, ESC (Electronic Stability Control) Module |
|
BLOWER |
 |
40 A |
BLOWER Relay |
|
IG1 |
 |
40 A |
Ignition Switch, PDM 3 (IG1) Relay, PDM 2 (ACC) Relay |
|
IG2 |
 |
40 A |
Ignition Switch, START Relay, PDM 4 (IG2) Relay |
|
PTC HEATER 1 |
 |
50 A |
PTC HEATER 1 Relay |
|
PTC HEATER 2 |
 |
60 A |
PTC HEATER 2 Relay |
|
POWER OUTLET 3 |
 |
20 A |
Rear Power Outlet |
|
POWER OUTLET 2 |
 |
20 A |
Front Power Outlet, Power Outlet Right Handle side |
|
TCU 1 |
 |
15 A |
TCM (Transmission Control Module) |
|
FUEL PUMP |
 |
20 A |
FUEL PUMP Relay |
|
DCT 3 |
 |
40 A |
Smart Gear Actuator |
|
BATTERY 1 |
 |
40 A |
Instrument Panel Junction Block (LONG TERM LOAD LATCH RELAY, Fuse: MODULE1, SEAT HEATER REAR, DOOR LOCK, IBU1, BRAKE SWITCH, AIR BAG2) , BMS (Battery Management System) 1, BMS (Battery Management System) 2 |
|
DCT 1 |
 |
40 A |
TCM (Transmission Control Module) |
|
DCT 2 |
 |
40 A |
TCM (Transmission Control Module) |
|
BURGLAR ALARM |
 |
10 A |
Burglar Alarm Relay |
|
HEAD LAMP HIGH |
 |
10 A |
HEAD LAMP HIGH Relay |
|
ABS 1 |
 |
40 A |
ESC (Electronic Stability Control) Control Module |
|
ABS 2 |
 |
30 A |
ESC (Electronic Stability Control) Control Module, EPB |
|
BLOWER |
|
40 A |
BLOWER Relay |
|
POWER TAIL GATE MODULE |
 |
30 A |
Power Tail Gate Module |
|
POWER OUTLET 1 |
|
40 A |
POWER OUTLET Relay |
|
SENSOR 2 |
 |
10 A |
Air Conditioner Compressor Relay, Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve (Intake/Exhaust),COOLING FAN 1 Relay, COOLING FAN 2 Relay |
|
ECU 2 |
 |
10 A |
ECM (Engine Control Module), PCM (Power train Control Module) |
|
ECU 1 |
 |
20 A |
ECM (Engine Control Module), PCM (Power train Control Module) |
|
Mild Hybrid Starter and Generator |
 |
15 A |
MHSG (MILD HYBRID STARTER & GENERATOR) |
|
SENSOR 1 |
 |
15 A |
Oxygen Sensor (Up), Oxygen Sensor (Down) |
|
IGNITION COIL |
 |
20 A |
Ignition Coil , Condenser |
|
ECU 3 |
 |
15 A |
ECM (Engine Control Module), PCM (Power train Control Module) |
|
AIR CONDITIONER |
 |
10 A |
Air Conditioner Compressor |
|
ECU 5 |
 |
10 A |
ECM (Engine Control Module), PCM (Power train Control Module) |
|
ABS 3 |
 |
10 A |
[ALL] ESC (Electronic Stability Control) Control Module, Clutch Master Cylinder |
|
TCU 2 |
 |
15 A |
INHIBITOR SWITCH, TCM (Transmission Contorl Module) |
|
SENSOR 3 |
 |
10 A |
FUEL PUMP Relay |
|
ECU 4 |
 |
15 A |
ECM (Engine Control Module), PCM (Power train Control Module) |
|
WIPER |
 |
25 A |
[ALL] Wiper Relay |
|
HORN |
 |
15 A |
[ALL] Horn Relay |
|
EWP 1 |
|
15 A |
EWP MODULE |
|
FRONT HEATED1 |
|
50 A |
Front Heated Glass |
|
FRONT HEATED2 |
|
50 A |
Front Heated Glass |
* 1: MDPS (Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
PTC HEATER 2 Relay |
|
MICRO |
|
PDM 3 (IG1) Relay |
 |
MICRO |
|
START Relay |
 |
MICRO |
|
PDM 4 (IG2) Relay |
 |
MICRO |
|
FUEL PUMP Relay |
 |
MICRO |
|
PDM 2 (ACC) Relay |
 |
MICRO |
|
BLOWER Relay |
 |
MINI |
|
PTC HEATER 1 Relay |
 |
MICRO |
|
REAR HEATED Relay |
 |
MICRO |
|
POWER OUTLET Relay |
 |
MICRO |
|
HEAD LAMP HIGH Relay |
 |
MICRO |
|
FRONT HEATED1 Relay |
|
MICRO |
|
FRONT HEATED2 Relay |
|
MICRO |
