Resetting the sunroof

OCL4M035040N

In some circumstances, you may need to reset the sunroof operation. Some of these instances include:

  • When the 12V battery is either disconnected or discharged

  • When the sunroof fuse is replaced

  • If the sunroof 1-touch AUTO OPEN/CLOSE operation is not functioning properly

Sunroof resetting procedure:

  1. Start the vehicle in P (Park).

    It is recommended to perform the reset procedure with the vehicle engine running.

  2. Make sure the power sunshade and sunroof glass are in the fully closed position.

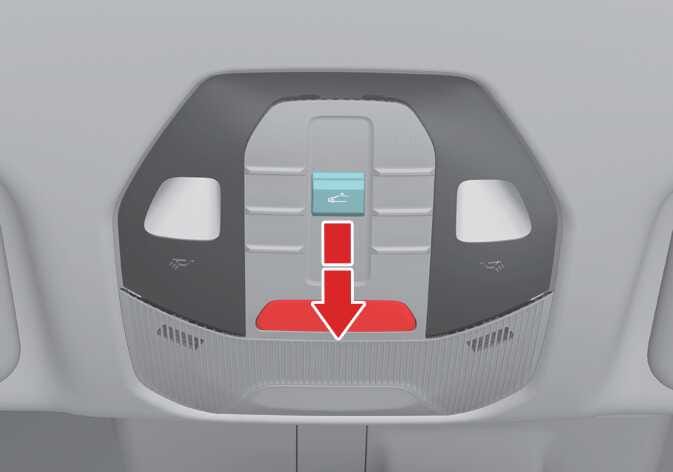

    If the power sunshade and sunroof glass are open, push the switch forward until the sunshade and sunroof glass are fully closed.

  3. Release the switch when the power sunshade and sunroof glass are fully closed.
  4. Push the switch forward until the power sunshade and sunroof glass move slightly. Then release the switch.
  5. Once again, push and hold the sunroof switch forward until the sunroof glass slides open and closed. Do not release the switch until the operation is completed.

    If you release the switch during operation, start the procedure again from step 2.

    TIP

    If the sunroof does not reset when the vehicle battery is disconnected or discharged, or if the sunroof fuse is blown, the sunroof may not operate normally.
