Reinstalling headrest

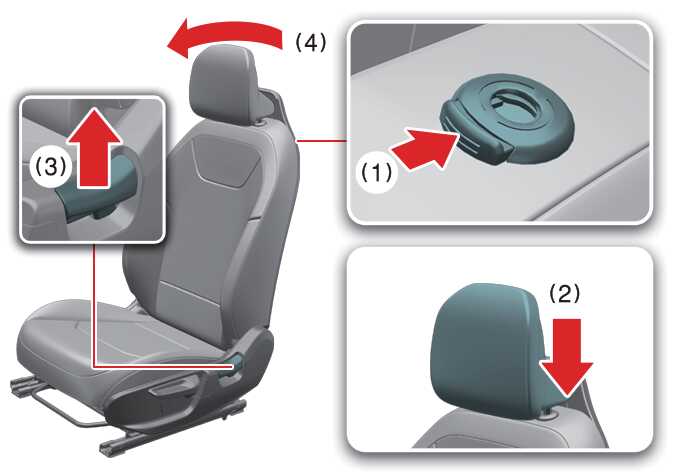

Figure 1. Type A
OCL4M025015N_3

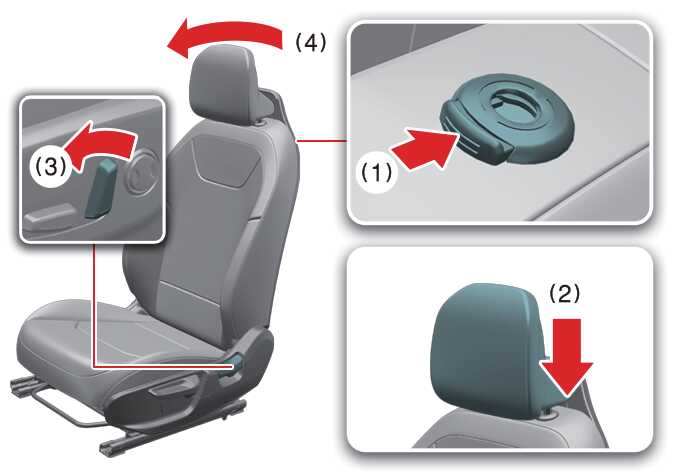

Figure 2. Type B
OCL4M025016N_3

To reinstall the headrest:

  1. Put the headrest poles (2) into the holes while pressing the release button (1).
  2. Recline the seatback (4) with the recline lever/switch (3).
  3. Adjust the headrest to the appropriate height.
    WARNING

    Headrest reinstallation

    To reduce the risk of injury to the head or neck, always make sure the headrest is locked into position and adjusted properly after reinstalling.
