Lighting control

The light switch has a headlight and a position lamp setting.

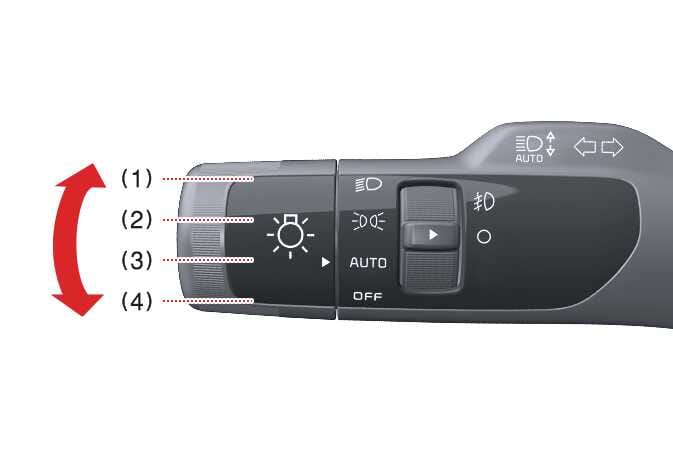

OMQ4A035001

  1. Headlamps ON

  2. Position lamp and taillight

  3. AUTO

  4. OFF

To operate the lights, turn the knob at the end of the control lever to one of the following settings:

Position Lamp & Taillight

OMQ4A035002

When the light switch is in the lamp position, the front position lamp, taillight, and the license plate lamp will turn on.

Headlight (Low Beam)

OMQ4A035003

When the light switch is in the headlight position, headlight (low beam), taillight and license plate lamp will turn on.

TIP

The vehicle must be in the ON position to turn on the headlights.

Headlight (High Beam)

OMQ4A035006
OMQ4A035007

  • To turn on the high beam headlights, push the lever away from you.

    When the high beam headlights are turned on, the lever will return to its original position, and the high beam indicator on the instrument cluster will illuminate.

  • To flash the high beam headlamps, pull the lever toward you.

    The lever will return to the normal (low beam) setting when released. The headlight switch does not need to be on to flash the high beam headlights.

WARNING

High beams

Do not use the high beam headlight when there are other vehicles in front of or approaching your vehicle, as the light may obstruct the other driver’s vision.

Auto light

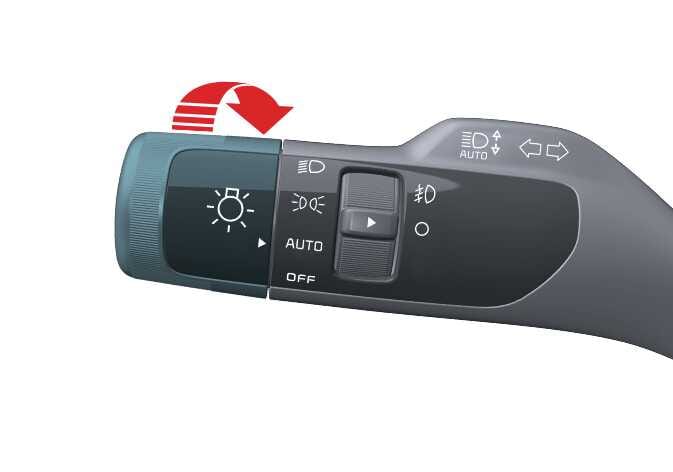

OMQ4A035004

When the light switch is in the AUTO light position, the taillights and headlights will turn on or off automatically depending on the amount of ambient light.

Light switch settings
Setting Result
Figure 1. Position lamp and taillight
OMQ4A035002

Front position lamp, taillights, and license plate lamp are on.

TIP

The vehicle must be in the ON position to turn on the headlights.
Figure 2. Headlight (low beam)
OMQ4A035003

Low beam headlight, taillight, and license plate lamp are on.
Figure 3. AUTO light
OMQ4A035004

Taillights and headlights turn on or off automatically depending on the amount of ambient light.
NOTE

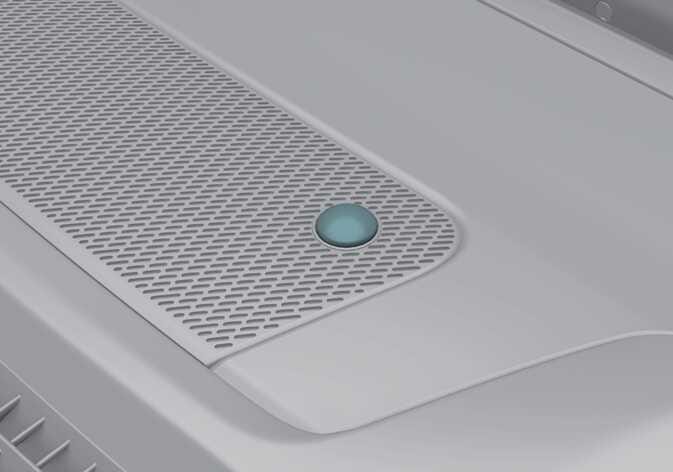

  • For optimal AUTO light setting performance, never place anything over the sensor (1) located on the instrument panel.

    OCL4M035313N

  • Do not clean the sensor with a window cleaner, as it may leave a thin film that could interfere with sensor operation.

  • If your vehicle has a window tint or other metallic coating on the front windshield, the AUTO light system may not work properly.
