Seat warmer: (if equipped)

The seat warmer keeps the seats warm in cold weather.

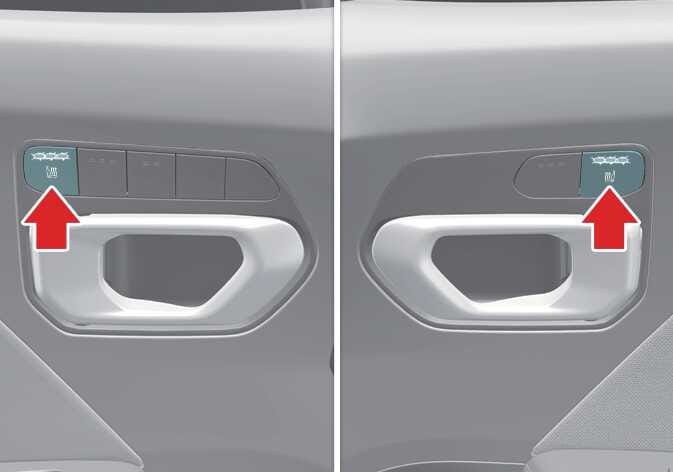

Figure 1. Front seat
OCL4M035077N_2

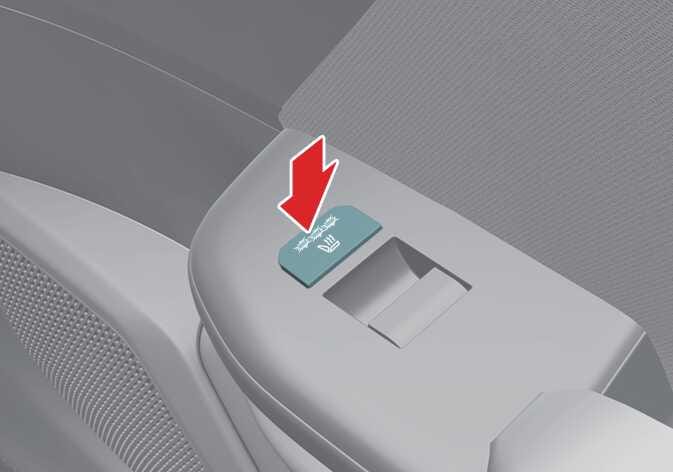

Figure 2. Rear seat
OCL4M035076N

With the vehicle in ON position:

  • Push either of the buttons to warm the driver’s seat or the front passenger’s seat.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the controls off.

The seat warmer defaults off whenever the vehicle is in ON position.

Temperature control (manual)

  • Each time you press the buttons, the temperature setting of the seat will change as follows:

    • Front seat:

      OFF > High > Medium > Low > OFF

    • Rear seat:

      OFF > High > Medium > Low > OFF

Temperature control (automatic)

The seat warmer automatically controls the seat temperature to prevent low-temperature burns after being manually turned ON.

Temperature

Duration

OFF

-

High

30 minutes

Medium

60 minutes

Low

-

Press the button to increase the seat temperature. It will revert to the automatic mode again after a short period of time.

Turn off the seat warmer by pressing the controls for more than 1.5 seconds.

TIP

When the seat warmer controls are on, the heating system in the seat turns off or on automatically depending on the seat temperature.

CAUTION

  • When cleaning the seats, do not use an organic solvent such as paint thinner, benzene, alcohol, or gasoline. It may damage the surface of the warmer or seats.

  • To prevent overheating the seat warmer, do not place anything on the seats that insulate against heat, such as blankets, cushions, or seat covers while the seat warmer is in operation.

  • Do not place heavy or sharp objects on seats equipped with seat warmers. Damage to the seat warming components could occur.

  • Do not change the seat cover. It may damage the seat warmer or air ventilation system.

WARNING

Seat Warmer Burns

Passengers should use extreme caution when using seat warmers due to the possibility of excess heating causing burns. The seat warmer may cause burns even at low temperatures, especially if used for long periods of time. The driver must exercise extreme care for the following types of passengers:

  1. Infants, children, elderly, disabled persons, or hospital outpatients

  2. Persons with sensitive skin or those that burn easily

  3. Fatigued individuals

  4. Intoxicated individuals

  5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills, cold tablets, and so on).
