Detecting sensor(s)

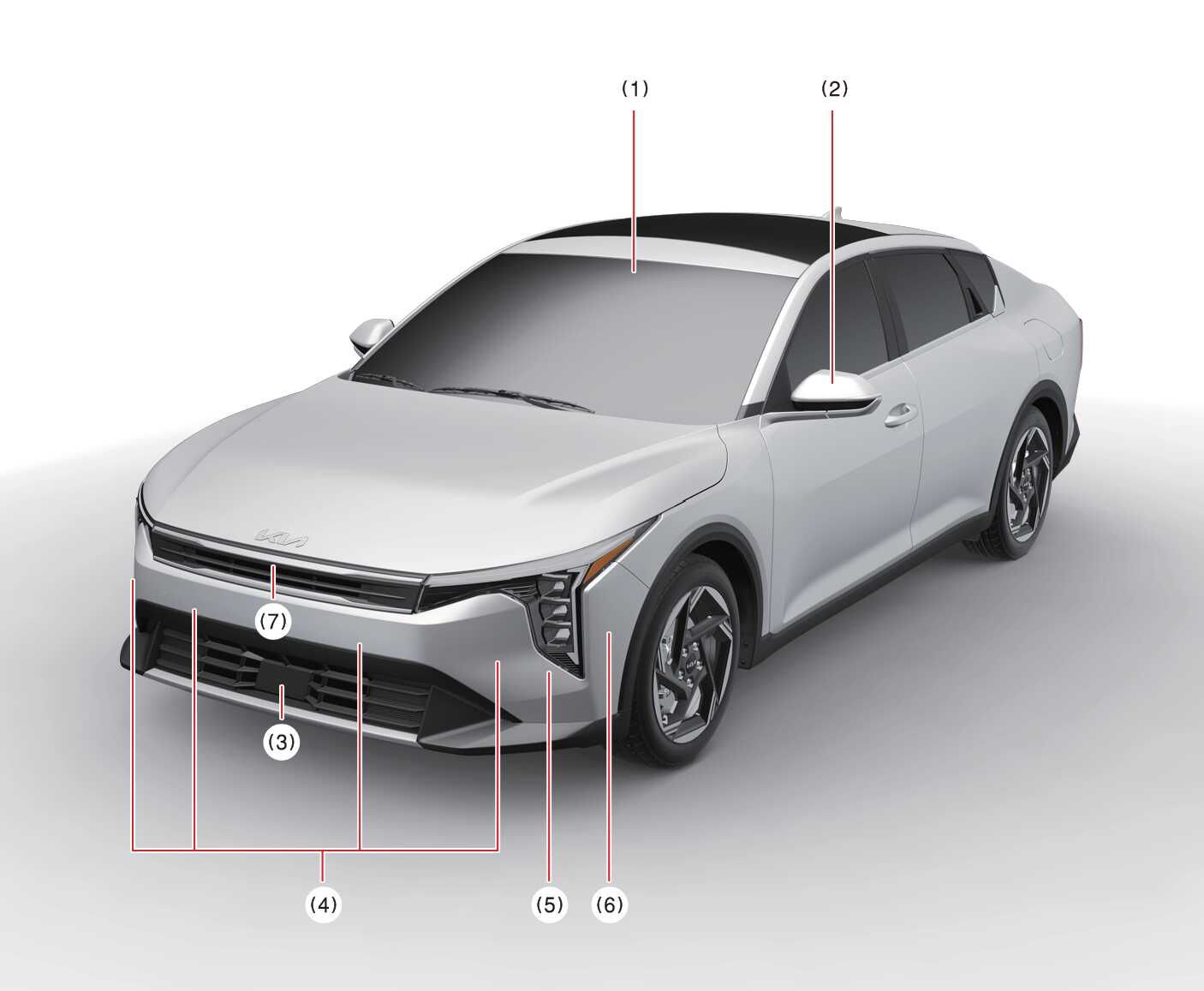

Figure 1. 4Door Front view
OCL4M055147N

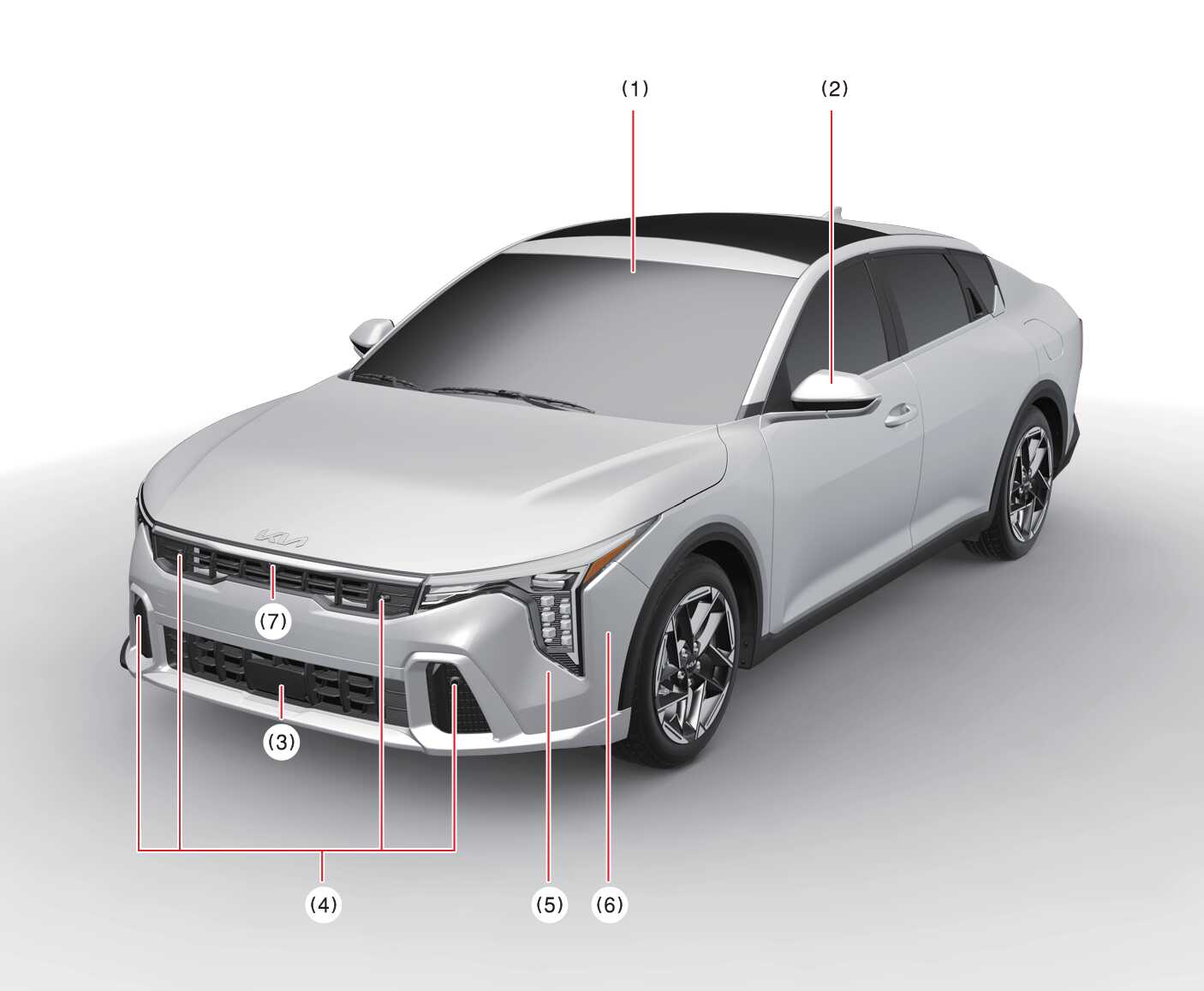

Figure 2. 4Door GT-Line Front view
OCL4MGTL055004N

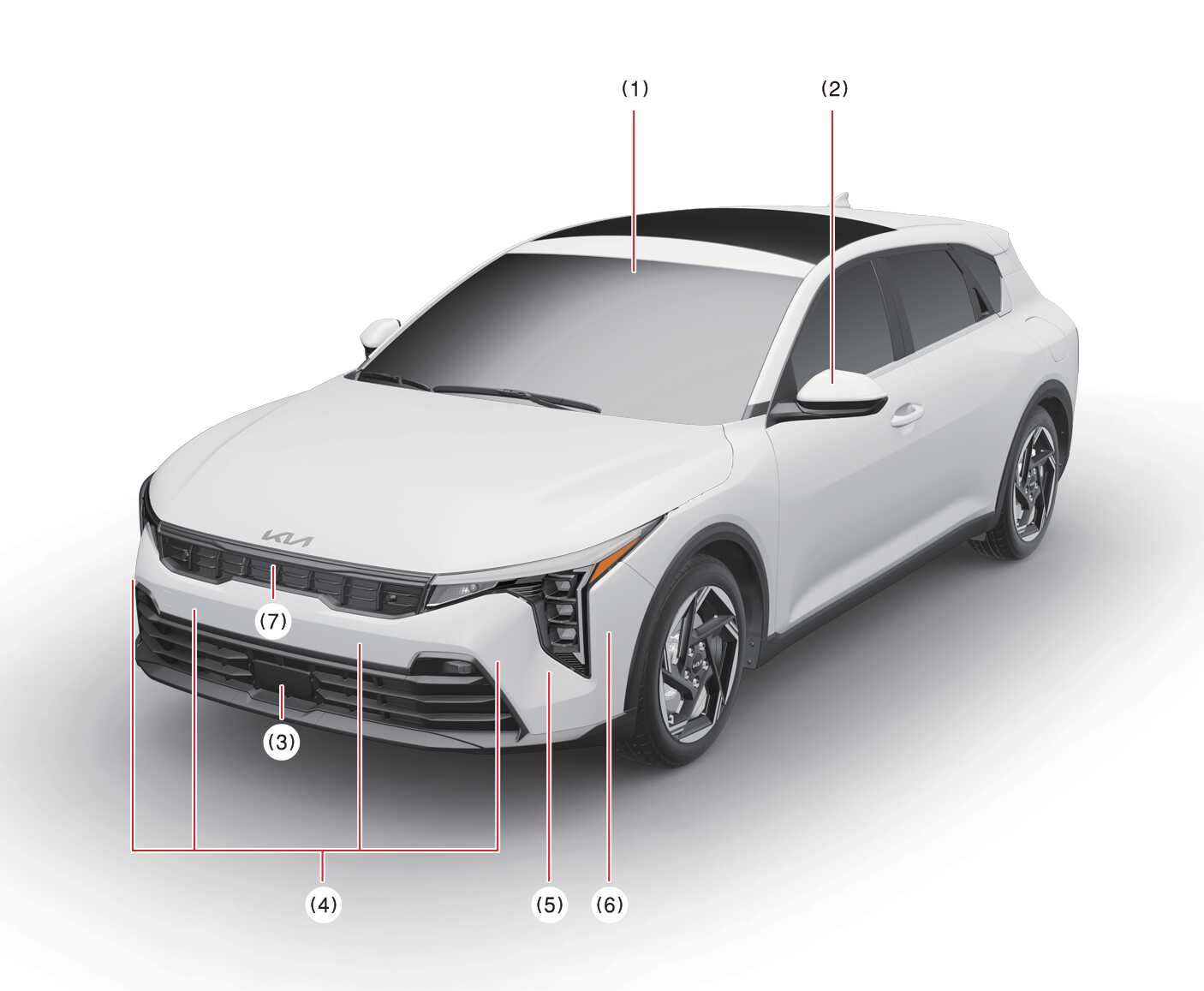

Figure 3. 5Door Front view
OCL4M055148N

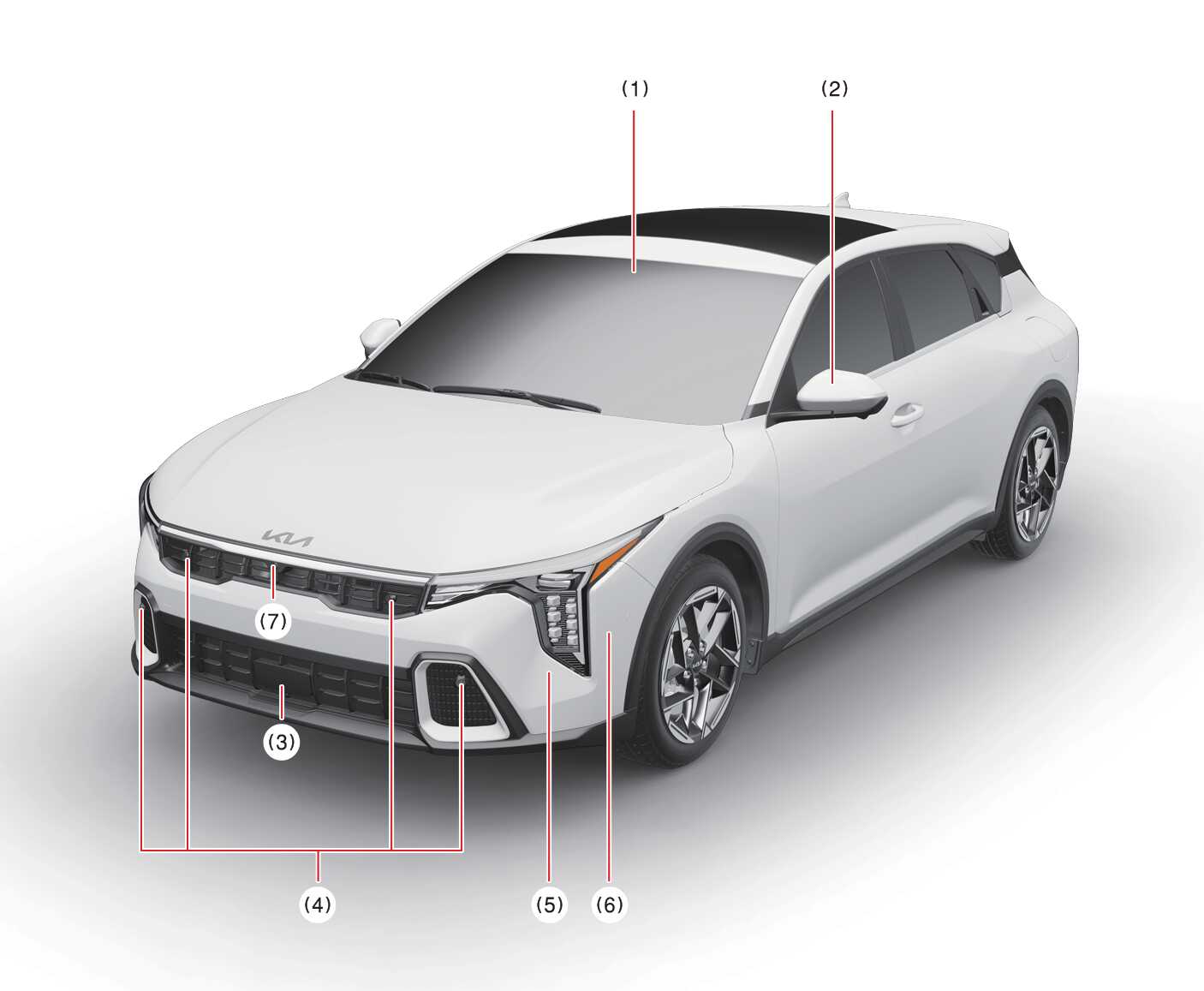

Figure 4. 5Door GT-Line Front view
OCL4MGTL055005N

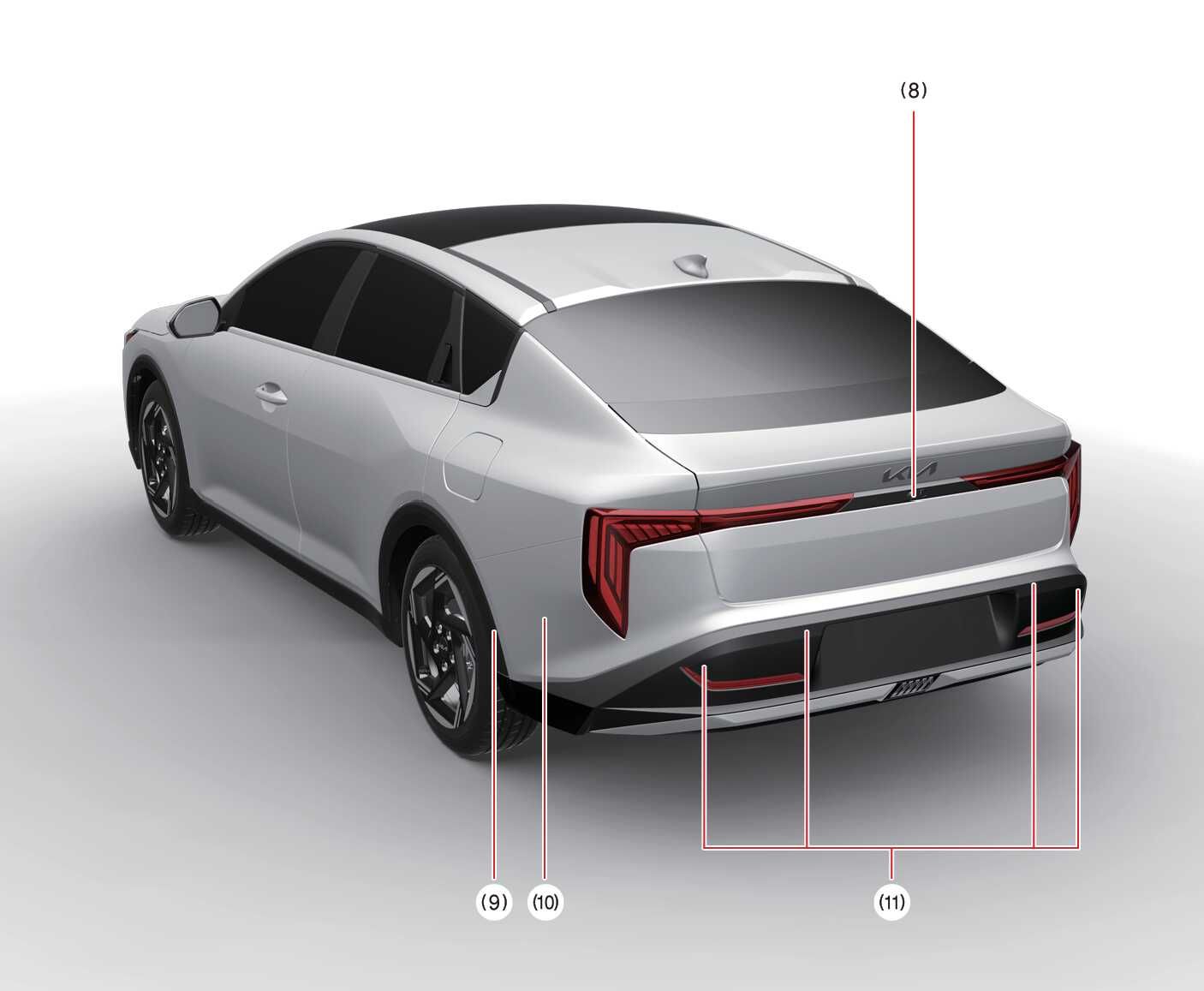

Figure 5. 4Door Rear view
OCL4M055149N
Figure 6. 4Door GT-Line Rear view
OCL4MGTL055006N

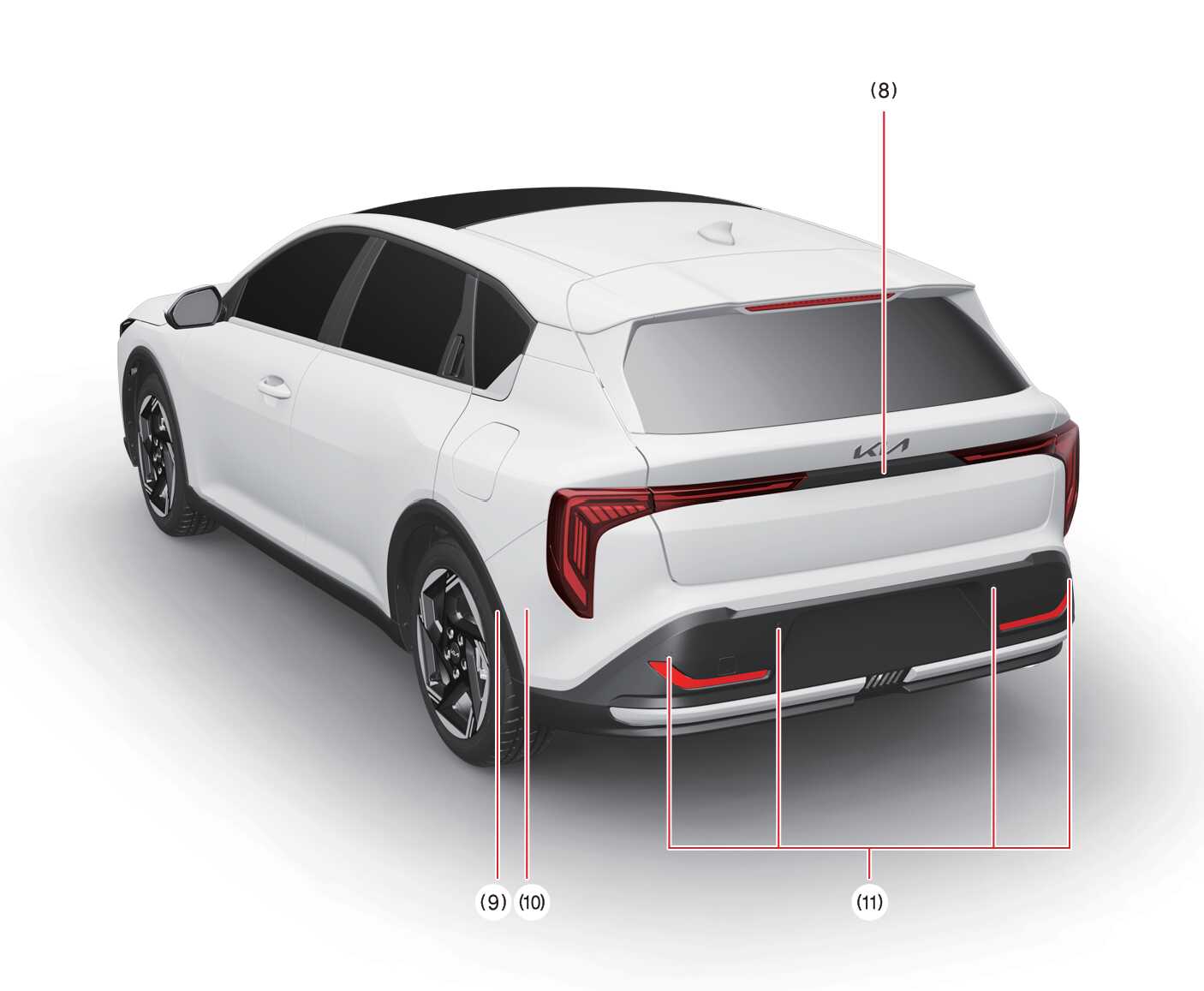

Figure 7. 5Door Rear view
OCL4M055150N

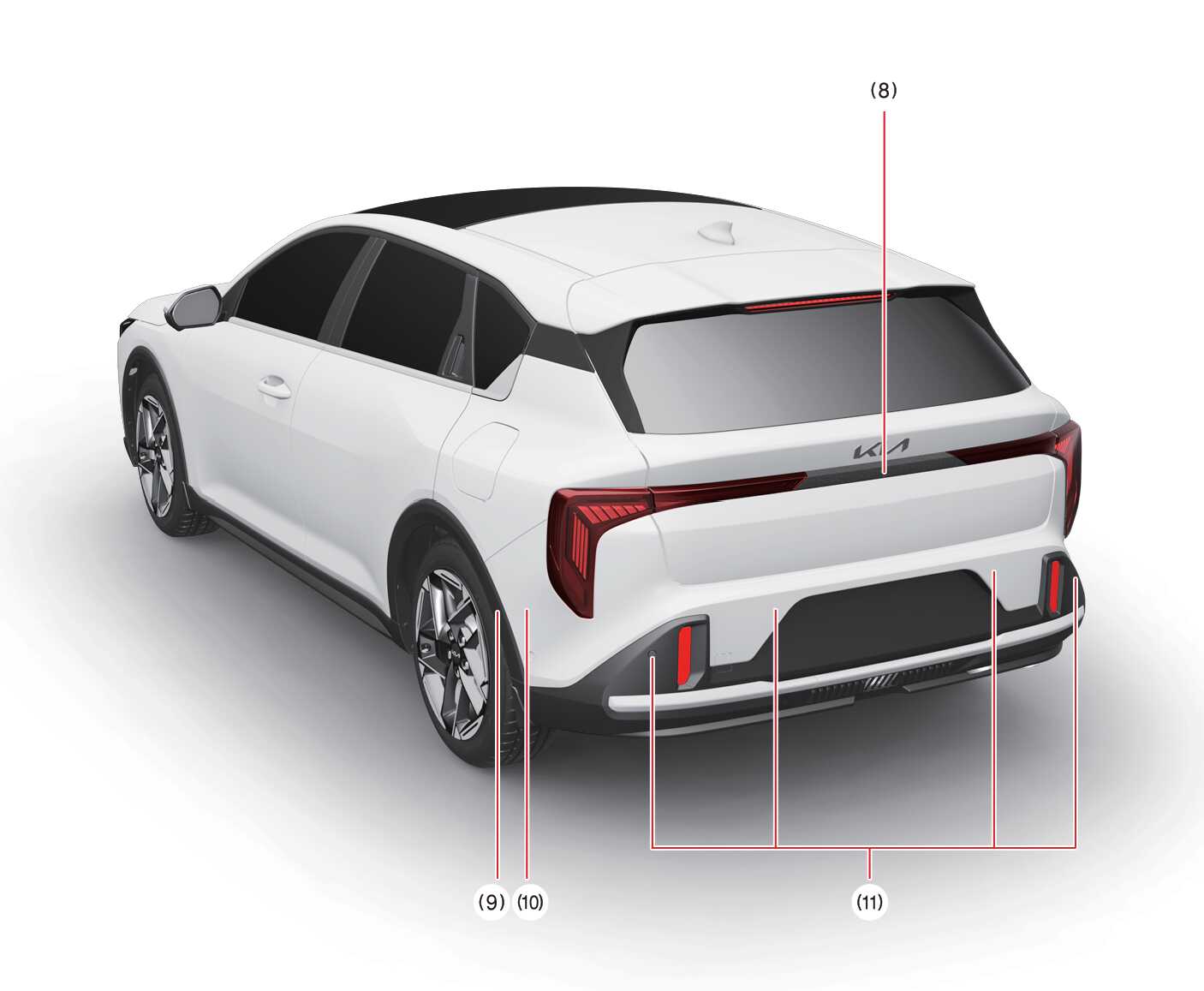

Figure 8. 5Door GT-Line Rear view
OCL4MGTL055007N

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Lane Keeping Assist (LKA)

  • Intelligent Speed Limit Assist (ISLA)*

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)*

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(4)

Front ultrasonic sensors*

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(5)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(6)

Front side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(7)

Wide-front view camera*

  • Surround View Monitor (SVM)*

(8)

Wide-rearview camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(9)

Rear side ultrasonic sensors*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

(10)

Rear corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(11)

Rear ultrasonic sensors*

  • Forward/Reverse Parking Distance Warning (PDW)*

  • Forward/Side/Reverse Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*
