Front wiper blade replacement

OCL4M075023N

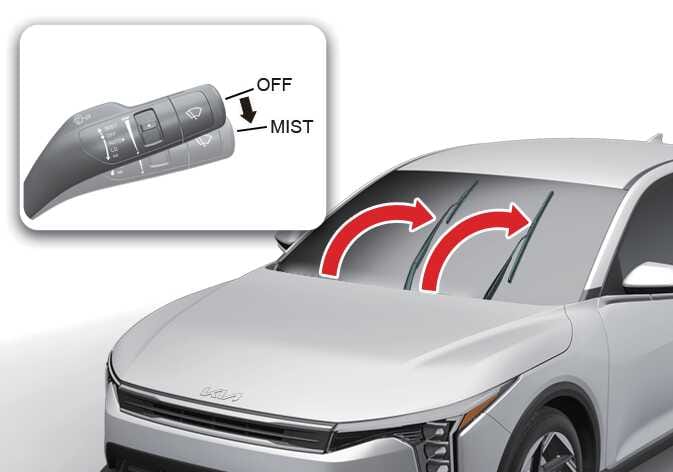

For your convenience, and to prevent hood paint damage, move the windshield wiper blades to the service position. After turning OFF the engine, move the wiper switch to the single wiping (MIST) position within 20 seconds. Hold the switch for more than 2 seconds until the wiper blades are pointing straight up.

NOTE

Wiper arms

  • Do not allow the wiper arm to fall against the windshield, as it may crack or chip the glass.

  • Do not pull the wiper arm forward, as the arm could chip the hood paint.

  1. Raise the wiper arm.

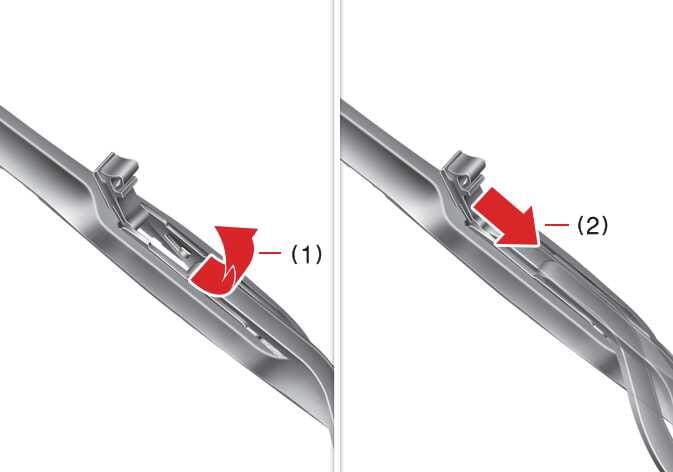

  2. Lift up the wiper blade clip(1). Then pull down the blade assembly and remove it(2).
    OCL4M075039N_2
  3. Install the new blade assembly.
    OMQ4A075025
  4. Make sure that both blade assemblies are installed firmly by trying to pull them slightly.
  5. Return the wiper arms to the windshield.
  6. Press the ENGINE START/STOP button in the ON position to return the wiper arms to their normal operating position.
