Inner panel fuse replacement
To replace a fuse in the inner panel, follow these steps:
- Press the ENGINE START/STOP button and all other switches in the OFF position.
- Remove the fuse panel cover.

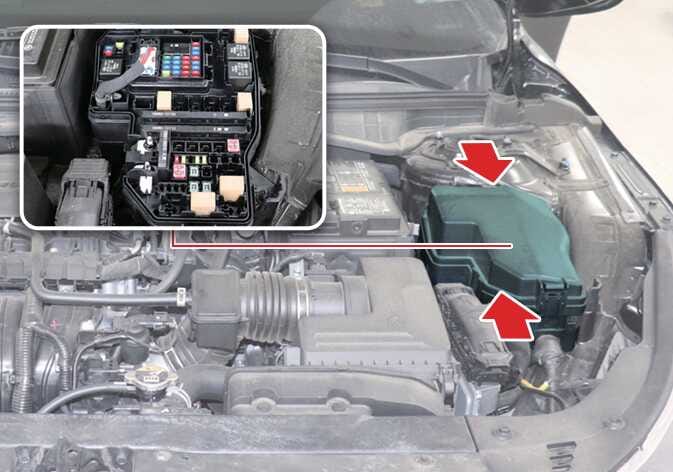

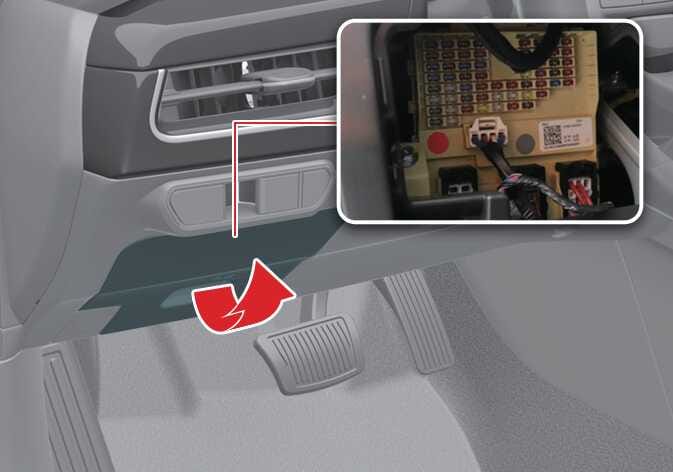

OCL4M075013N - Pull the suspected fuse straight out using the removal tool provided in the engine compartment’s main fuse box.
OCL4M075015N - Check if the fuse you removed is blown. If so, replace the fuse.
Spare fuses are provided in the instrument panel fuse panel (or in the engine compartment fuse panel).
- To replace the blown fuse, push in a new fuse of the same rating and make sure it fits tightly in the clips.
If the new fuse does not fit tightly, consult an authorized Kia dealer.
If you do not have a spare fuse, replace the blown fuse with one of the same rating from a circuit you may not need to operate the vehicle, such as the cigarette lighter fuse.
If the headlamps, tail lamps, brake lamps, courtesy lamp, or daytime running lights (DRL) do not work and their fuses are not blown, consult an authorized Kia dealer.
