Replacing the front wiper blade

Operation

N_CT25G043_1_ER
N_CT25G032_1
N_CT25G034

  1. Turn off the vehicle.

  2. Move the wiper switch to the single wiping (MIST/1x) position within 20 seconds.

  3. Hold the wiper switch for more than 2 seconds.

  4. Raise the wiper arm.

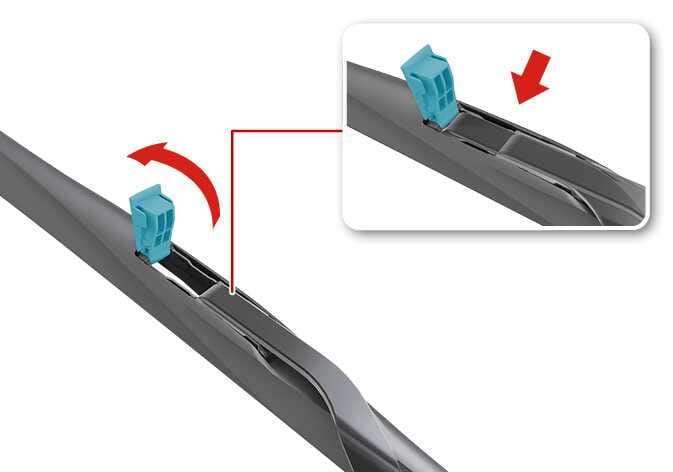

  5. Lift the wiper blade clip up. Pull down the blade assembly and remove it.

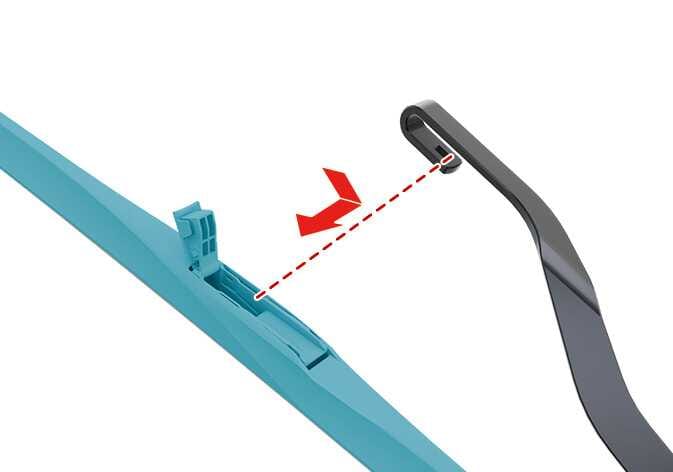

  6. Install the new blade assembly.

  7. Upon starting the vehicle, the wiper arms will return to their normal operating position.
