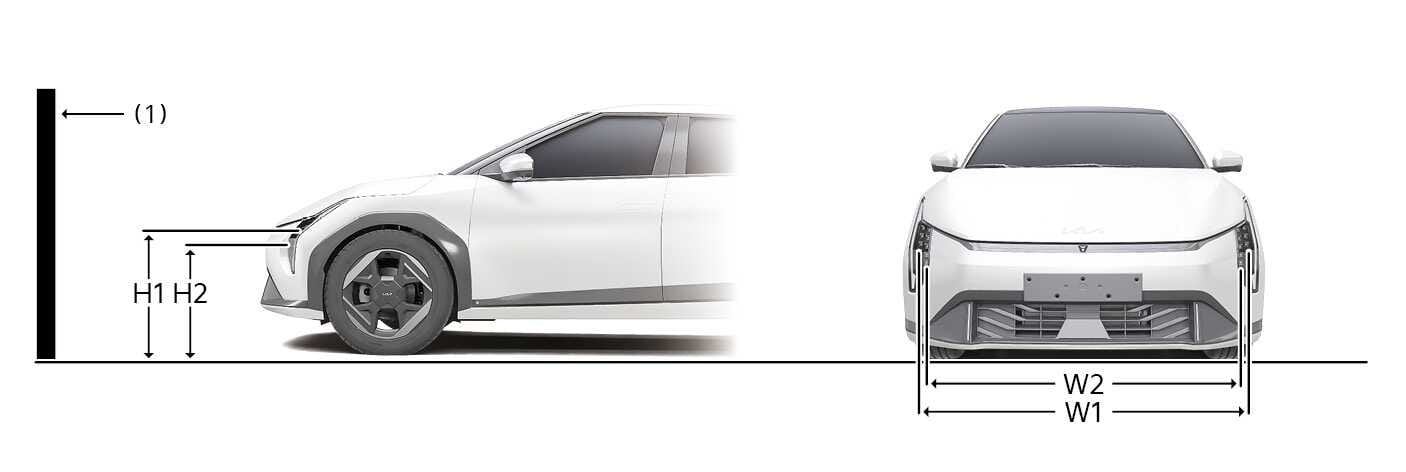

Aiming point
N_CT25G001_E
-
Screen
|
Vehicle condition |
Head lamp (LED type) |
|||||
|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
|||||
|
H1 (LOW) |
H2 (HIGH) |
W1 (LOW) |
W2 (HIGH) |
|||
|
Type A |
2WD |
With driver [mm (in)] |
659 (25.9) |
555 (21.8) |
1,560 (61.4) |
1,558 (61.3) |
|
Without driver [mm (in)] |
669 (26.3) |
565 (22.2) |
||||
|
Type B |
2WD |
With driver [mm (in)] |
614 (24.1) |
606 (23.8) |
1,588 (62.5) |
1,514 (59.6) |
|
Without driver [mm (in)] |
624 (24.5) |
616 (24.2) |
||||
