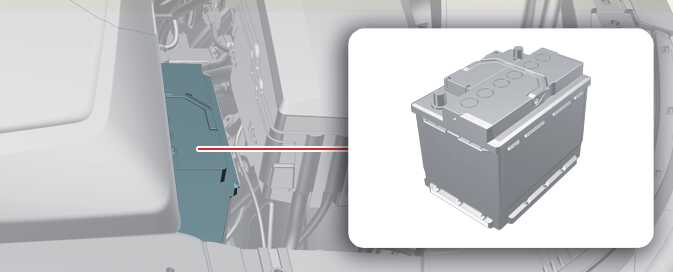

12V battery

The battery powers the various devices installed in the vehicle.

For best battery service

OCV125006N

  • Keep the battery securely installed.

  • Keep the top of the battery clean and dry.

  • Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.

  • Immediately rinse any spilled electrolyte from the battery using a solution of water and baking soda.

  • If the vehicle is not going to be used for an extended time, disconnect the cable from the negative terminal of the battery to prevent discharge.

WARNING

Risk of Explosion

Keep lit cigarettes and all other flames or sparks away from the battery.

The battery contains hydrogen -- a highly combustible gas which will explode if it comes in contact with a flame or spark.

Keep batteries out of reach of children because batteries contain highly corrosive sulfuric acid and electrolytes. Do not allow battery acid to come into contact with your skin, eyes, clothing, or your vehicle’s paint finish.

Wear eye protection when charging or working near a battery. Always have proper ventilation when working in an enclosed space.

Always read instructions carefully when handling a battery.

If electrolyte gets into your eyes, flush your eyes with clean water for at least 15 minutes and seek immediate medical attention. If electrolyte gets on your skin, thoroughly wash the affected area. If you feel pain or a burning sensation, seek immediate medical attention.

An inappropriately disposed battery can be harmful to the environment and human health. Dispose the battery according to your local law(s) or regulation.

The battery contains lead. Do not dispose of it after use. Please return the battery to an authorized Kia dealer to be recycled.

WARNING

Risk of Electrocution

Never touch the electrical motor while the vehicle is running. This system works with high voltage, which can electrocute, injure, or kill you.

NOTE

If you connect unauthorized electronic devices to the battery, the battery may be discharged. Never use unauthorized devices.

WARNING

Recharging Battery

Never attempt to recharge the battery when the battery cables are connected.

WARNING

California Proposition 65

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer, birth defects and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. Wash hands after handling.

Battery recharging

Should your vehicle’s battery become discharged either run the vehicle for at least 60 minutes driving. Alternately you may connect a fully automatic regulated charger to the motor compartment front jumper posts or battery in the motor room.

When recharging the battery, take the following precautions:

  • Remove the battery from the vehicle and place it in an area with good ventilation.

  • Do not allow cigarettes, sparks, or flame near the battery.

  • Watch the battery during charging, and stop or reduce the charging rate if the battery cells begin gassing (boiling) violently or if the temperature of the electrolyte of any cell exceeds 120 °F (49 °C).

  • Wear eye protection when you check the battery while it is charging.

  • Disconnect the battery charger in the following order.

    1. Turn OFF the battery charger main switch.

    2. Unhook the negative clamp from the negative battery terminal.

    3. Unhook the positive clamp from the positive battery terminal.

  • Before performing maintenance or recharging the battery, turn OFF all accessories and stop the vehicle.

  • The negative battery cable must be removed first and installed last when the battery is disconnected.

Reset items

The following items should be reset after the battery has been discharged, or the battery has been disconnected.
