Electric type: (if equipped)
The electric remote control mirror switch allows you to adjust the position of the left and right outsiderearview mirrors. To adjust the position of either mirror, the ignitionswitch should be in the ACC position.

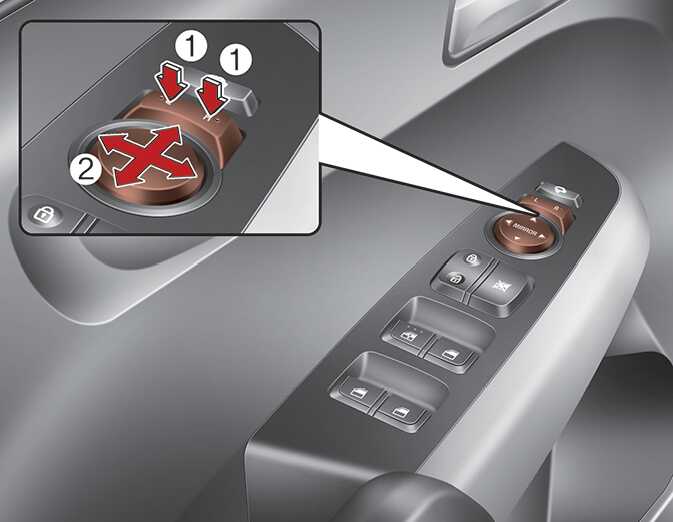

To adjust the position of either mirror, press the R or L button (1) to select the right side mirror or the left side mirror, then press a corresponding point (▲) on the mirror adjustment control (2) to position the selected mirror up, down, left or right.
After adjustment, press the R or L button again to prevent the inadvertent adjustment.
-
The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
-
Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the parts.
-
When the mirror control, press exactly “▲” (2) marking area. Otherwise, the mirror will move to unintended direction or malfunction.
