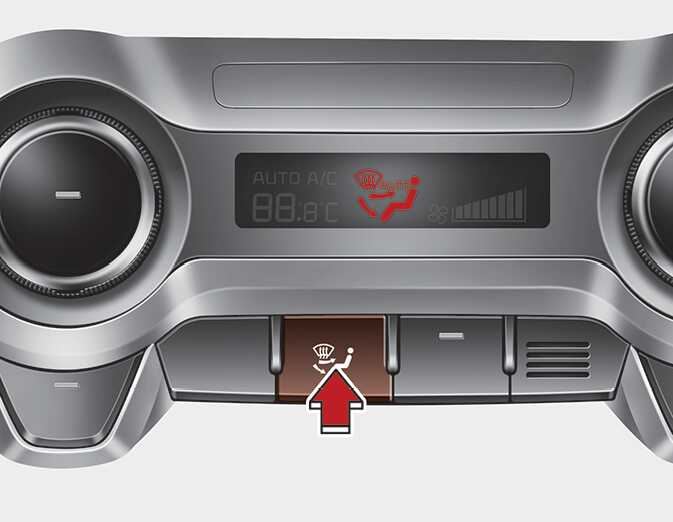

Mode selection
The mode selection button controls the direction of the air flow through the ventilation system.

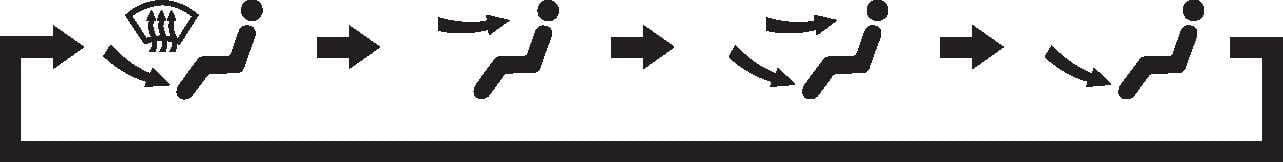

The air flow outlet port is converted as follows:
Refer to the illustration in the Manual climate control system.
Floor & Defrost (A, C, D)
Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.
Face-Level (B, D)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Bi-Level (B, C, D)
Air flow is directed towards the face and the floor.
Floor-Level (A, C, D)
Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

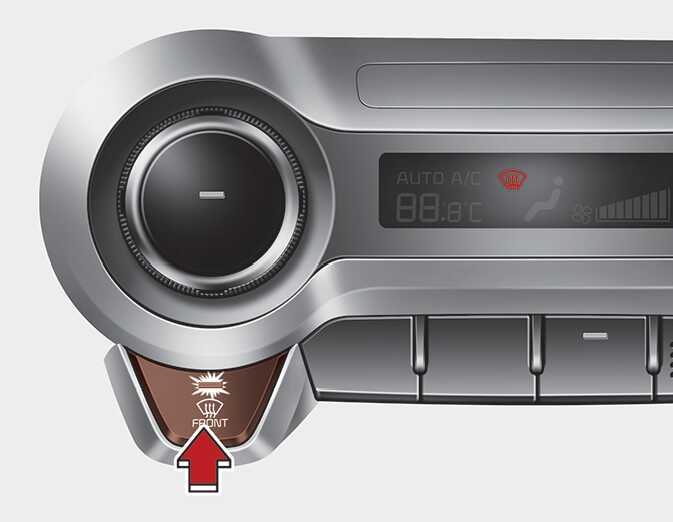

Defrost mode
When you select the defrost mode, the following system settings will be made automatically:
-
The air conditioning system will be turned on.
-
The outside (fresh) air position will be selected.
-
The fan speed will be set to the high speed.
To turn the defrost mode off, press the mode button or defrost button again or AUTO button.

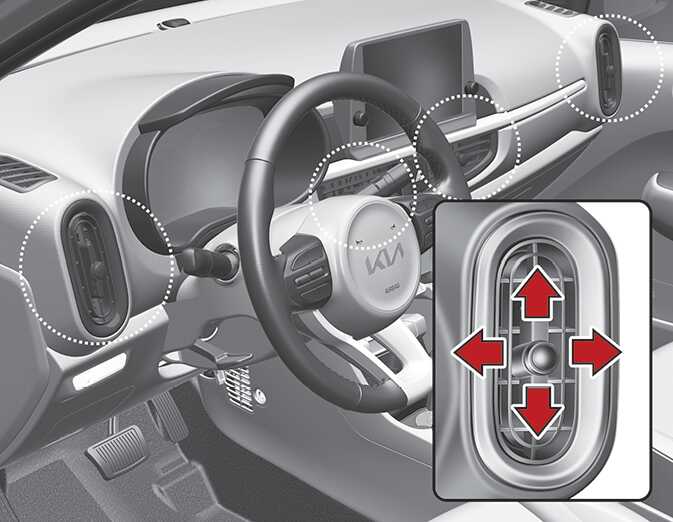

Instrument panel vents
The outlet port can be opened or closed separately using the horizontal thumbwheel. To close the vent, rotate it downward to the maximum position. To open the vent, rotate it upward to the desired position.
Also, you can adjust the direction of air delivered from these vents using the vent control lever as shown.
