Front windshield wiper blade

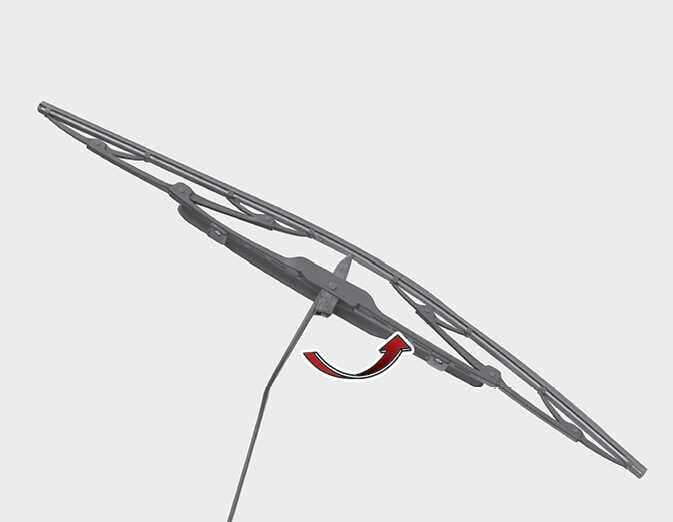

  1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

    ODEEV098013NR
    CAUTION

    Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

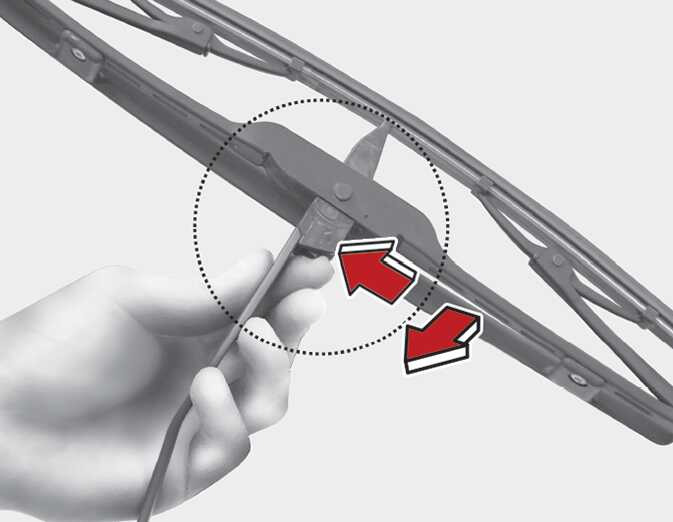

  2. Compress the clip and slide the blade assembly downward.

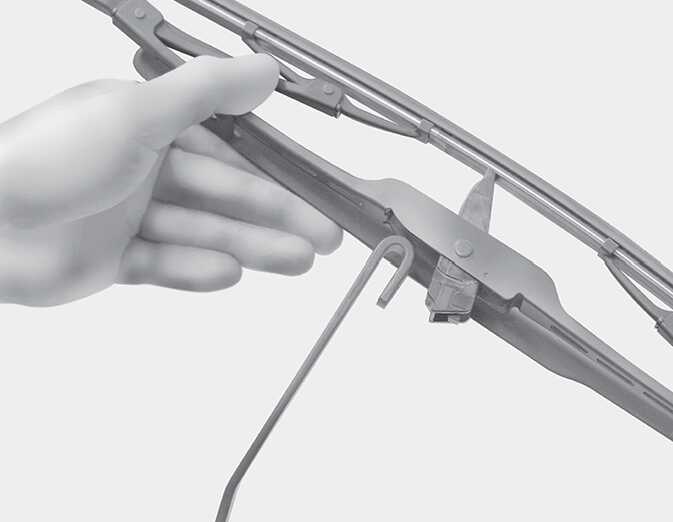

  3. Lift it off the arm.

  4. Install the blade assembly in the reverse order of removal.

    ODEEV098014NR
    ODEEV098015NR
