Folding the rear seat (2nd, 3rd row seat)

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

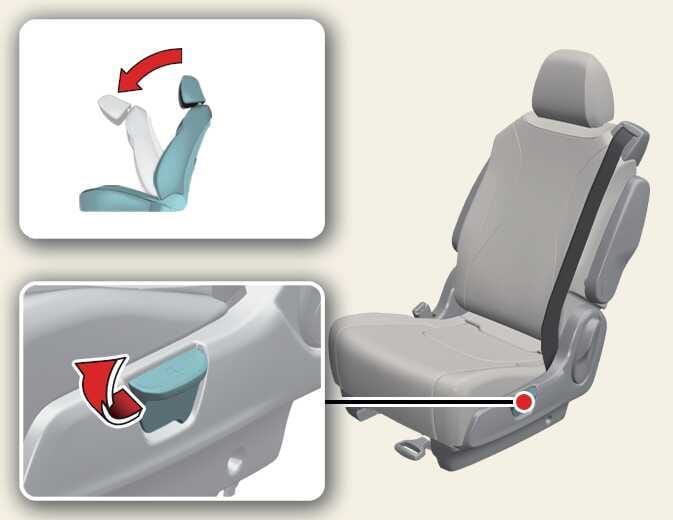

Figure 1. 2nd row outboard seat
OKA4H023120_2

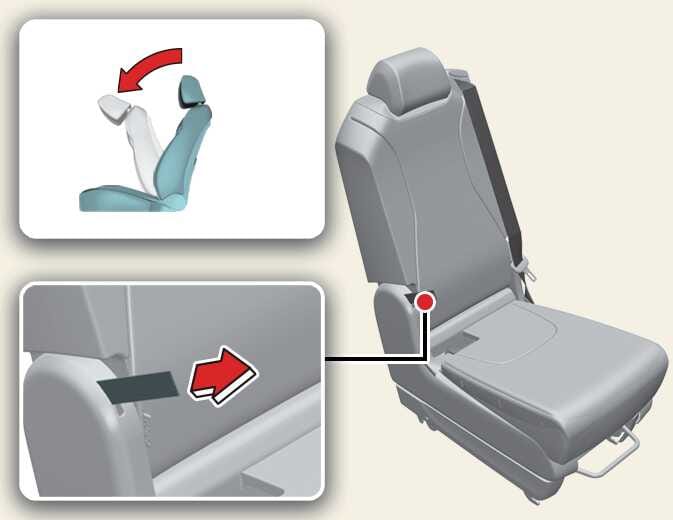

Figure 2. 2nd row centre seat (for 8 seats)
OKA4023075L_2

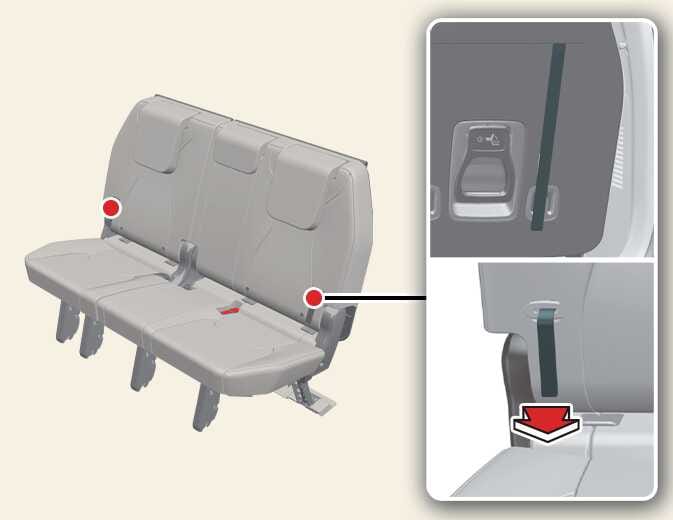

Figure 3. 3rd row seat
OKA4023076L_2

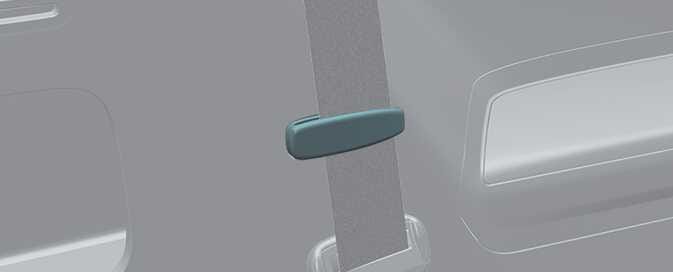

  1. Insert the rear seat belt webbing in the guide to prevent the seat belt from being damaged.

  2. Set the front seatback to the upright position and if necessary, slide the front seat forward.

  3. Lower the rear headrests to the lowest position.

  4. Pull on the seatback folding lever or strap, then fold the seat toward the front of the vehicle.

    When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

  5. To use the rear seat, lift and pull the seatback backward by pulling on the folding lever or strap. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

  6. Return the rear seat belt to the proper position.

OKA4H023050
WARNING

Folded down seatback

Never allow passengers to sit on top of the folded down seatback whilst the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop.
