Removing the seat (2nd row seat for 7, 8 seats)

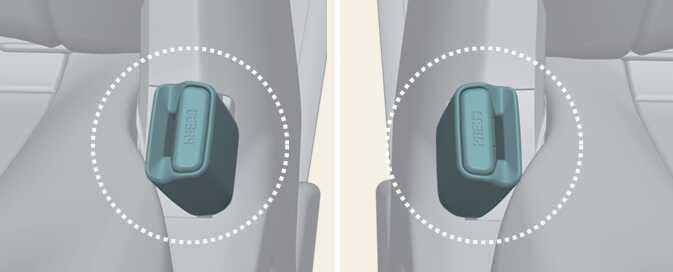

  1. Insert the seat belt buckle in the seat cushion pocket.

    OKA4023009L_2

  2. Lower the headrest to the lowest position.

  3. Slide the seat to the farthest forward.

  4. Fold the seat back by pulling up the reclining lever or strap.

  5. Pull the removal lever or strap and lift the rear portion of the seat cushion.

    Figure 1. 2nd row outboard seat
    OKA4023010L
    Figure 2. 2nd row centre seat
    OKA4023011L

  6. Remove the entire seat from the floor.
