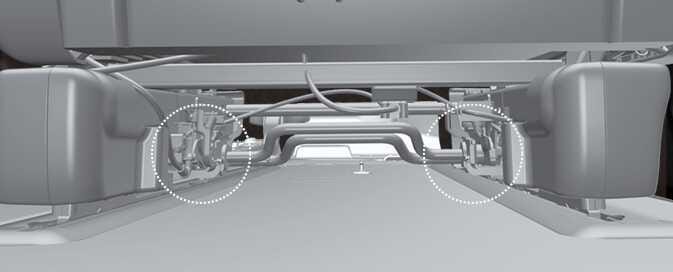

1. Put the front anchor strikers along the front anchors on the floor.

   OKA4023012L

2. Insert two front anchor strikers into the front anchors.

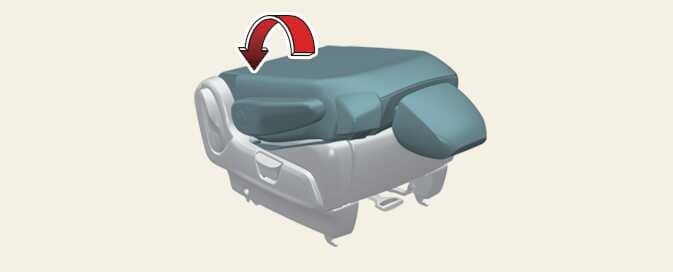

3. Lift the rear portion of the seat cushion then push down firmly to lock the catches into the rear anchors until an audible "click" is heard.

   OKA4023013L

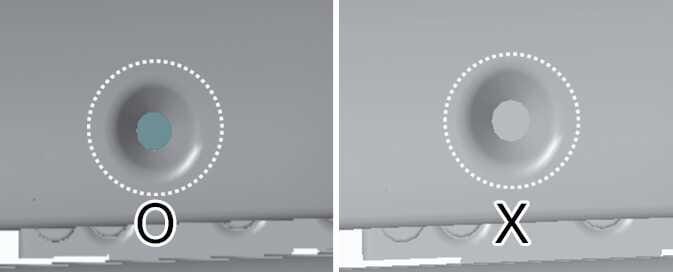

4. Make sure the green mark on the rear seat cushion frame is visible and the catches are locked in position by moving the seat forward and backward or lifting the front portion of the seat. If the green mark is invisible and the seat moves, it is not locked properly.

   OKA4023014L_2

5. Pull up the seatback reclining strap.

6. Lift and push the seatback backward firmly until it clicks into place. Make sure the seatback is locked in place.

7. Return the seat belt to the proper position.

WARNING

Installing or removing the seat

OKA4023015L

• Do not install or remove the 2nd row seat if there are occupants in the 3rd row seats, as this may injure occupants.

• Rise both side seatback up before installing the tumble seat.

OKA4023016L

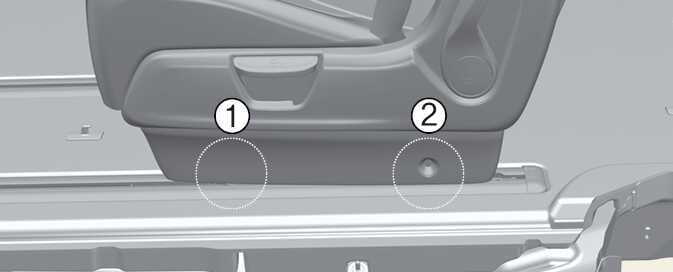

If the rear catches of the seat are locked into the rear anchors (2) whilst the front catches are not locked into the front anchors (1), do the followings to release the rear catches from the rear anchors.

OKA4023010L

OKA4023011L

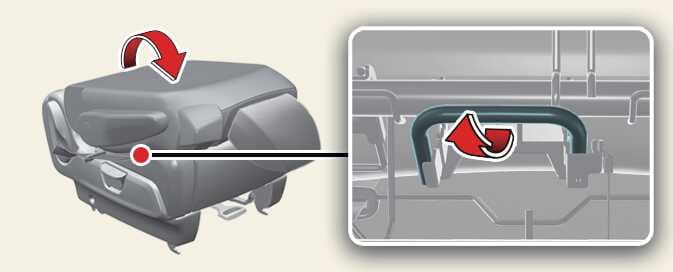

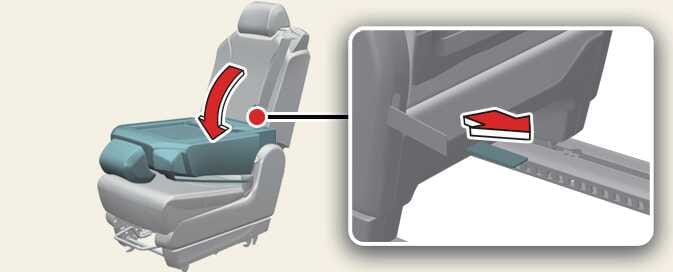

Pull the removal strap and lift the rear portion of the seat cushion. Then the rear catches will be released. Remove the seat whilst lifting the rear portion of seat cushion and then reinstalling the tumble seat.
