How to check the symbol on the charging label: (if equipped)

Vehicle charging INLET

Charging connector OUTLET
OMQ4PH083007L
OMQ4PH0830051L
OMQ4PH083008L

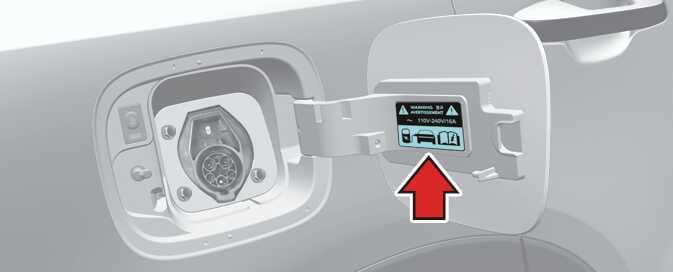

<Symbol location and application example >
OMQ4PH0830061L

Precautions for charging AC and Trickle charger (Portable charging cable) (AC charging)

  1. After opening the charging door, check the charging symbol at the bottom of the warning label.

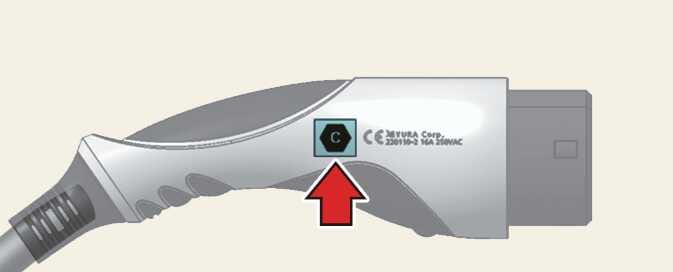

  2. Check the charging connector symbol of the AC and Trickle charger cable.

  3. After checking the alphabet letter of the charging symbol, proceed the charging step.

    Refer to Electric charging label symbol table.

  4. Risk of failure, fire, injury, etc. expected when using the charging connector with unmatched symbol.

Electric charging label

OMQ4PH083010L

The electric charging label is attached on the charging door.

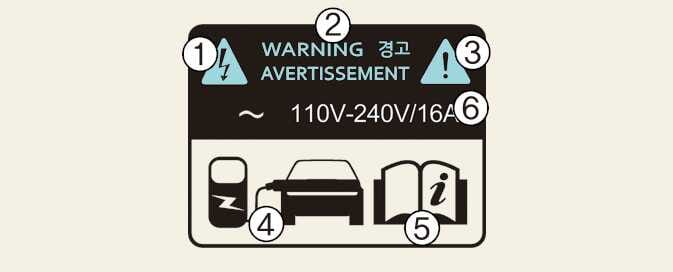

1–3: Warning for high voltage

4: Charging voltage and current - () AC single phase.

5: Identifier for charging door.

6: For more details, refer to How to check the symbol on the charging label.

Electric charging label symbol table

AC and Trickle charger charging

Supply Type

Configuration

Type of Accessory

Voltage range

Identifier

AC

5P

Vehicle connector and vehicle inlet

≤250 V RMS
OMQ4PH083008L
