Instrument cluster

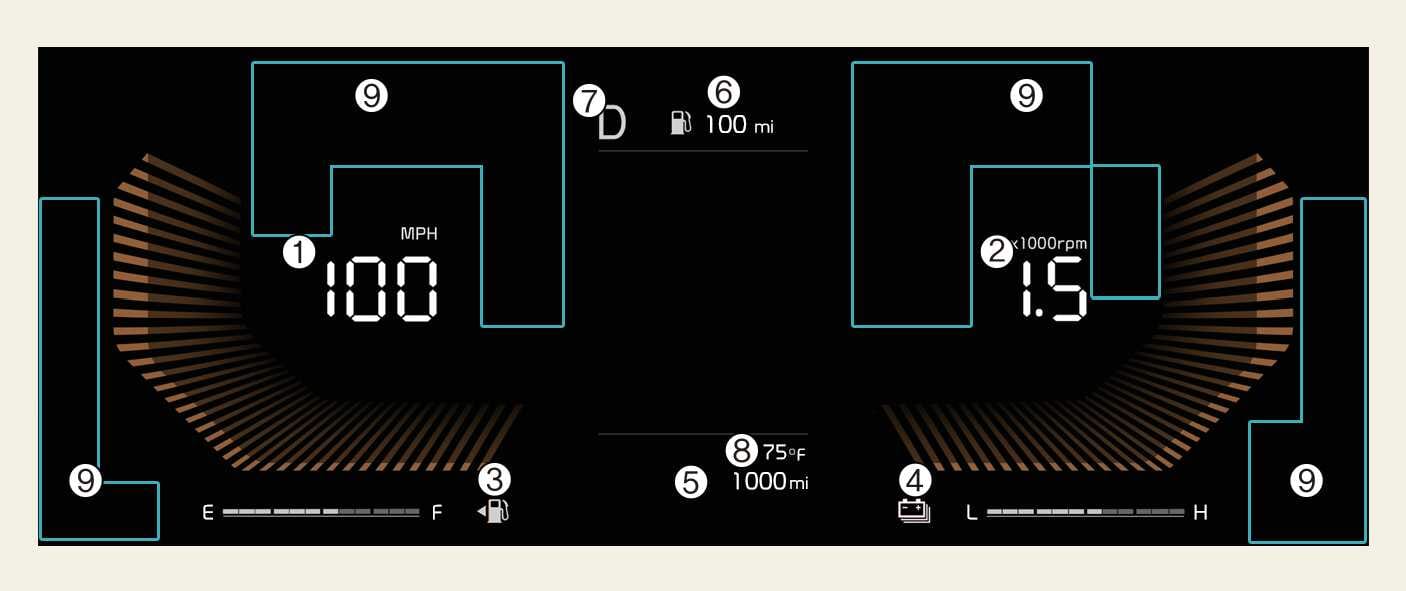

Figure 1. Type A
OMQ4PH034100N

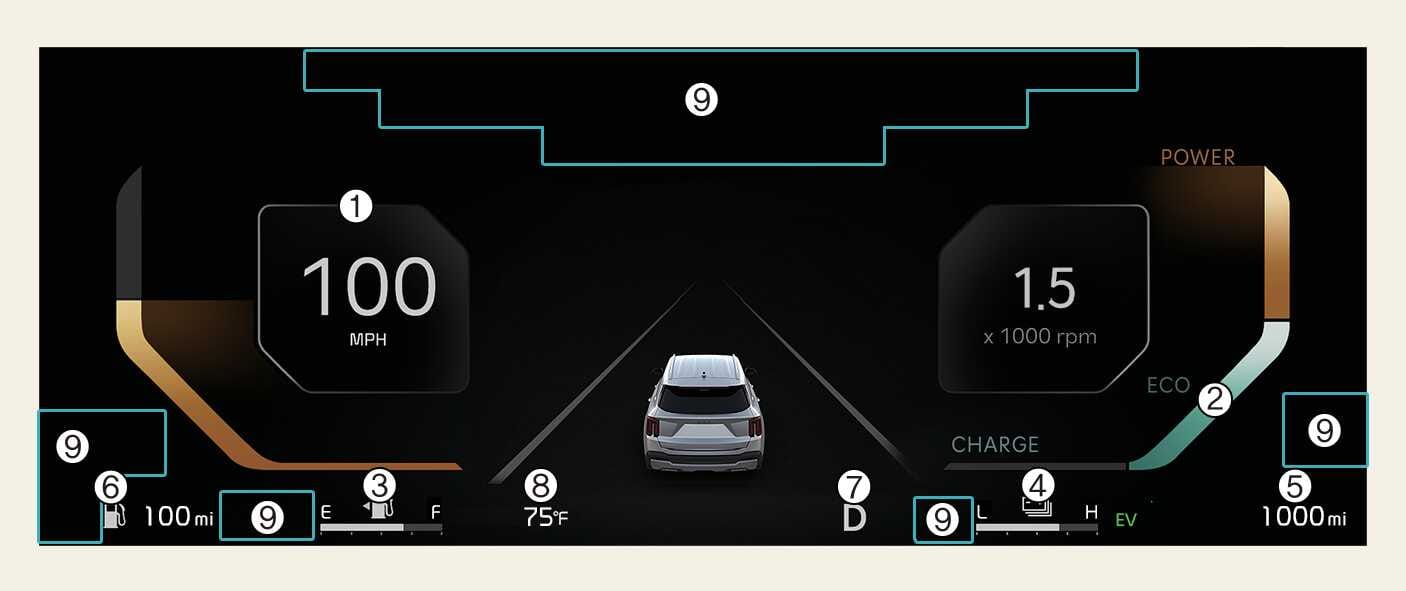

Figure 2. Type B
OMQ4PH034101N

The actual cluster in the vehicle may differ from the illustration.

  1. Speedometer

  2. Tachometer/Power gauge

  3. Fuel gauge

  4. Hybrid battery SOC gauge

  5. Odometer

  6. Distance to empty

  7. Transmission shift indicator (if equipped)

  8. Outside temperature gauge

  9. Warning and indicator lights
