Automatic climate control system

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

OMQ4PH034311N
Figure 1. 3rd row seat
OMQ4033302

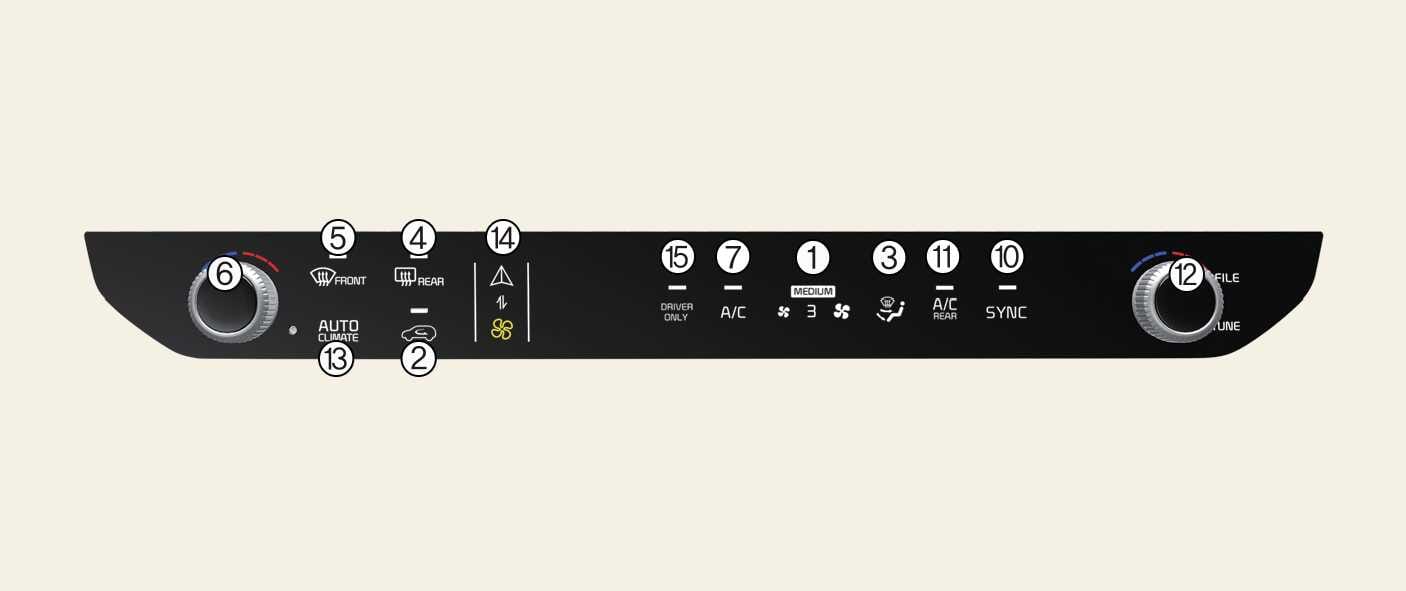

  1. Fan speed control button

  2. Air intake control button

  3. Mode selection button

  4. Rear window defroster button

  5. Front windshield defroster button

  6. Driver's temperature control button

  7. Air conditioning (A/C) button

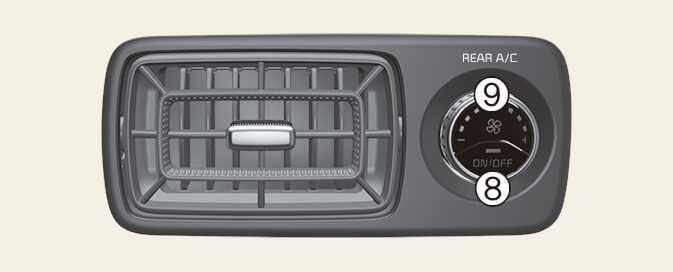

  8. 3rd row air conditioning ON/OFF button (if equipped)

  9. 3rd row air conditioning fan speed control knob (if equipped)

  10. SYNC button

  11. 3rd row Air conditioning (A/C) button

  12. Passenger's temperature control button

  13. AUTO (automatic control) button

  14. Using the infotainment/climate switchable controller

  15. Driver only select button

NOTE

Operating the blower when the ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
