Engine compartment

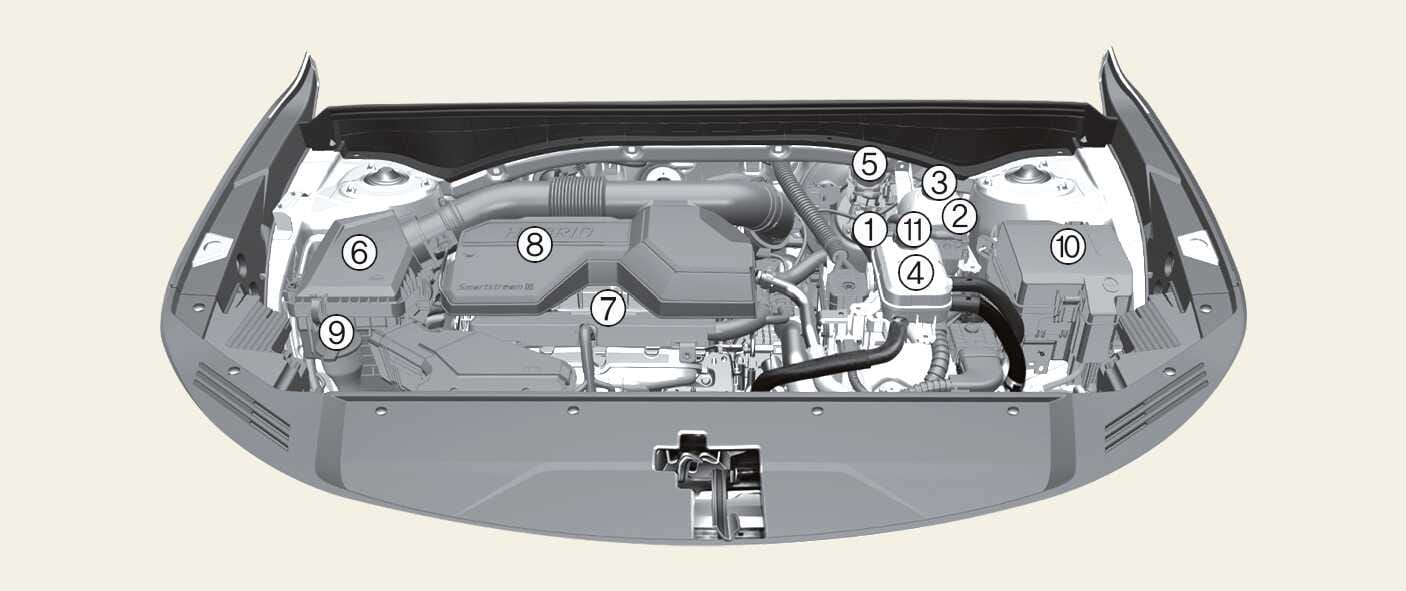

Figure 1. Smartstream G1.6 T-GDi HEV
OMQ4PH073002L
Figure 2. Smartstream G1.6 T-GDi PHEV
OMQ4PH073002L

The actual engine compartment in your Kia may differ from the illustration.

  1. Electronic Control Unit (ECU)

  2. Engine coolant reservoir

  3. Engine coolant reservoir cap

  4. Inverter coolant reservoir

  5. Brake fluid reservoir

  6. Air cleaner

  7. Engine oil dipstick

  8. Engine oil filler cap

  9. Windshield washer fluid reservoir

  10. Fuse box

  11. Inverter coolant reservoir cap
