2nd row seat folding (Luggage room)
-
Left side 2nd row seat folding
-
Right side 2nd row seat folding
-

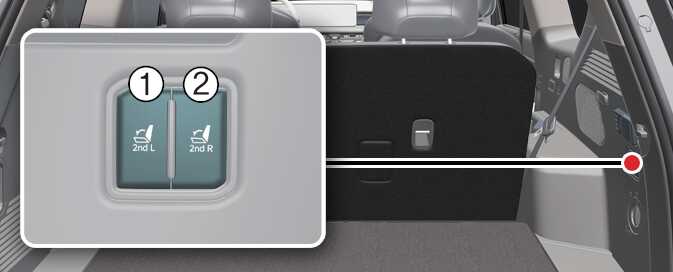

Press the 2nd row seat folding switch(1, 2) located on the right side in the luggage compartment.
-
When returning to the original position, raise the backrest while pulling the second row seat angle adjustment lever. After adjusting the backrest to the desired angle, release the lever to lock it in place.
-
Always operate with the vehicle stationary when folding or unfolding the seat. Do not adjust the seat while driving.
-
Make sure there are occupants in the seat before folding the seat. Do not fold the seat when there are pets, luggage, or people in the seat, or when passengers are disembarking. The seat may suddenly move and cause injury.
-
Be careful not to get your hands or feet caught when operating the seat.
-
Always be careful not to damage the seat belt when folding or unfolding the seat.
-
After returning the seat, rock it back and forth to see if it is secure, and put the headrest and seat belt back in their original position before use.
-
After erecting the seatback, check that the backrest is securely fastened.
Uprighting seat
When you return the seatback to its upright position, hold the seatback and return it slowly. If the seatback is returned without holding it, the back of the seat could spring forward, resulting in injury caused by being struck by the seatback.
Rear seatback
To ensure maximum protection in the event of an accident or sudden stop, when returning the rear seat to the upright position:
-
Be careful not to damage the seat belt webbing or buckle.
-
Do not allow the seat belt webbing or buckle to become pinched or caught in the rear seat.
-
Ensure the seatback is completely locked into its upright position by pushing on the top of the seatback.
Failure to adhere to any of these instructions could result in serious injury or death in the event of a crash.
Damaging rear seat belt buckles
When you fold the rear seatback, insert the buckles between the rear seatback and cushion. Doing so can prevent the buckles from being damaged by the rear seatback.
Rear seat belts
When returning the rear seatback to the upright position, remember to return the rear seat belts to their proper position.
Unless the driver's position is properly set according to the driver's physical figure, do not fold the rear seat. It may increase bodily injuries in a sudden stop or collision.
Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
Cargo
Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.
Cargo loading
Make sure the vehicle is off, the gear is in P (Park) and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shifter dial is inadvertently moved to another position.
