2nd row seat folding (Luggage room): (if equipped)
-
Left side 2nd row seat folding/unfolding
-
Right side 2nd row seat folding/unfolding
-

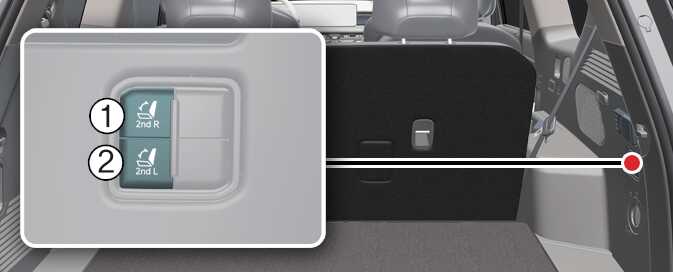

Press the 2nd row seat folding/unfolding switch(1 or 2) located on the right side of the luggage compartment.
-
When returning to the original position, raise the seatback by pressing the 2nd row seat backrest angle adjustment switch or pressing the seatback folding/unfolding switch located on the right side of the luggage compartment.
-
You can fold or unfold the second row seats in infotainment system's home screen → Seat → 2nd/3rd Row Seats Fold/Unfold from the infotainment system.
Operating condition(s)
-
When the vehicle is in P (Park) and the vehicle is in ON position
-
Always operate with the vehicle stationary when folding or unfolding the seat. Do not adjust the seat while driving.
-
Make sure there are occupants in the seat before folding the seat. Do not fold the seat when there are pets, luggage, or people in the seat, or when passengers are disembarking. The seat may suddenly move and cause injury.
-
Be careful not to get your hands or feet caught when operating the seat.
-
Always be careful not to damage the seat belt when folding or unfolding the seat.
-
After returning the seat, rock it back and forth to see if it is secure, and put the headrest and seat belt back in their original position before use.
-
After erecting the seatback, check that the backrest is securely fastened.
-
Functions may be limited when using functions related to the second row (relaxion seat, walk-in seat, seat folding) in a location where the driver's seat and the 2nd row seat interfere.
-
If the seat is operated more than 5 times without resting, the seat motor may be overtaxed. In this case, the seat will not operate when the button is pressed to prevent overheating. Wait for about 1 minute or more before operating.
-
When adjusting the seat through the infotainment system, it is displayed as a pop-up on the infotainment system screen.
-
If you adjust the seat with the button located on the right side of the seat and luggage room, a separate notification is not provided.
-
For more details, access the web manual using the QR code in the infotainment system quick reference guide.
-
The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.
-
When using as a seat, be sure to put the headrests and seat belt in their original positions.
Rear seatback
To ensure maximum protection in the event of an accident or sudden stop, when returning the rear seat to the upright position:
-
Be careful not to damage the seat belt webbing or buckle.
-
Do not allow the seat belt webbing or buckle to become pinched or caught in the rear seat.
-
Failure to adhere to any of these instructions could result in serious injury or death in the event of a crash.
Damaging rear seat belt buckles
When you fold the rear seatback, insert the buckles between the rear seatback and cushion. Doing so can prevent the buckles from being damaged by the rear seatback.
Rear seat belts
When returning the rear seatback to the upright position, remember to return the rear seat belts to their proper position.
Unless the driver's position is properly set according to the driver's physical figure, do not fold the rear seat. It may increase bodily injuries in a sudden stop or collision.
Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.
Cargo
Cargo should always be secured to prevent it from being thrown about the vehicle in a collision and causing injury to the vehicle occupants. Do not place objects in the rear seats, since they cannot be properly secured and may hit the front seat occupants in a collision.
Cargo loading
Make sure the vehicle is off, the gear is in P (Park) and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shifter dial is inadvertently moved to another position.
