Parking

While parking, the rear view of the Surround View Monitor is activated in the following cases:

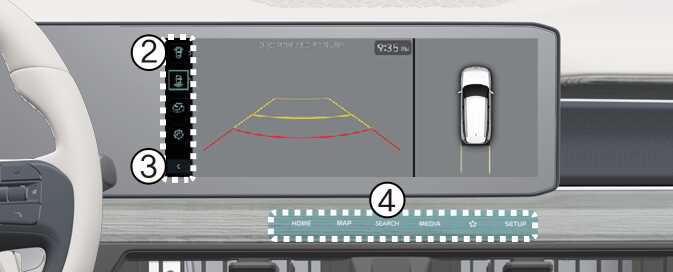

• P (Parking) or N (Neutral) or D (Drive) position with a vehicle speed slower than 6 mph (10 km/h), Pressing the Parking/View button (1) and then pressing the view switching button (2) to select the rear view

• Shifting to R (Reverse)

Pressing the view switching button (2) on the Surround View Monitor to select the rear view, rear top view, rear side view, or rear wide view.

While parking, the rear view function of the Surround View Monitor is turned off in the following conditions when the vehicle is in P (Park) or N (Neutral) or D (Drive) mode:

• Shifting from N (Neutral) or D (Drive) to P (Parking)

• Pressing the Parking/View button (1)

• Pressing the back button (3) on the Surround View Monitor screen

• Pressing the infotainment system power button (4)

• Driving faster than 6 mph (10 km/h)

When the vehicle is in R (Reverse), the rear view function of the Surround View Monitor will turned off in the following conditions:

• Shifting to P (Parking)
