Replacing motor compartment fuse

Replacing blade/cartridge type fuses

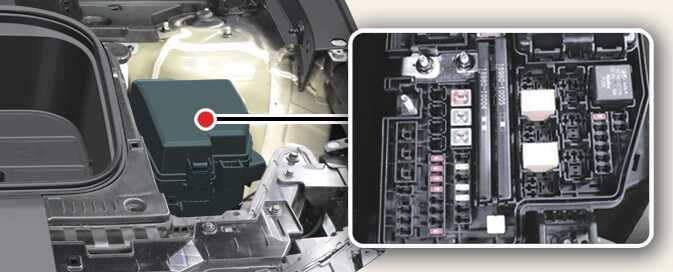

OMV073015
Operation

  1. Press the EV button to the OFF position and turn all switches off.

  2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

    When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the motor compartment fuse box. Upon removal, securely insert a reserve fuse of equal rating.

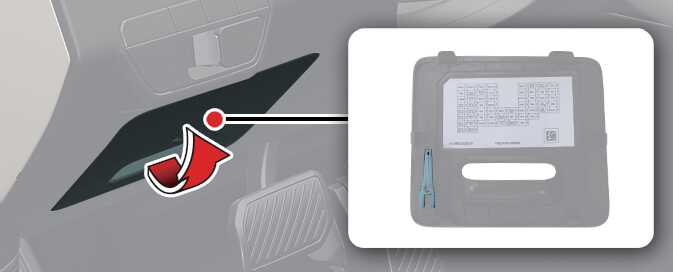

    OMV0730270

  3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the tool in the fuse panel cover.

  4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
