Replacing relay

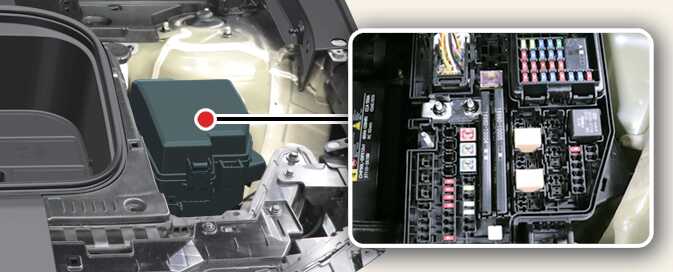

OMV073018

  1. Turn the vehicle and all other switches off.

  2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

  3. Replace the relay with a new one of the same rating.

  4. Reinstall in the reverse order of removal.

  5. If it fits loosely, consult an authorized Kia dealer.

CAUTION

  • After checking the fuse panel in the motor compartment, securely install the fuse panel cover with clicking sound. If not, electrical failures may occur from water contact.

  • Visually inspect the battery cap for secure latching. If the battery cap is not securely latched, the electrical system may be damaged from water contact.

NOTE

  • The electronic system may not function correctly even when the motor compartment and internal fuse box's individual fuses are connected. May be a disconnect of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap. Since the main fuse is more complex than other fuses, visit an authorized Kia dealer.

  • If the multi fuse is blown, consult an authorized Kia dealer.
