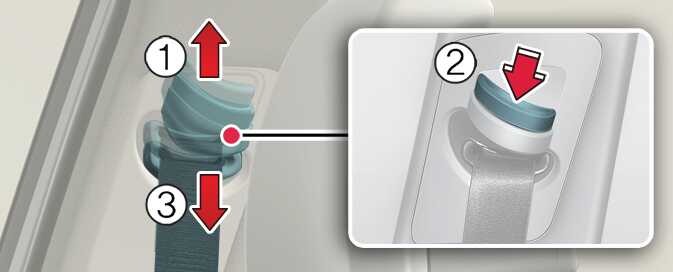

Adjusting height of the shoulder belt
ONQ5021018

Operation

  1. Pull the height adjuster up (1).

  2. Press the height adjuster button (2) and push the height adjuster down (3).

WARNING

  • After a collision, the seat belt system should be inspected to ensure it is operating normally. Replace any belts that are not functioning appropriately.

  • Verify the shoulder belt anchor is locked into position at the appropriate height. Never position the shoulder belt across your neck or face.

CAUTION

  • Do not force to lock the left or right seat belt into the center seat belt buckle. Make sure to lock the rear center seat belt into the center seat belt buckle. If not, the improperly fastened seat belt will not be able to provide protection.

  • When pulling out to wear the seat belt, the tongue should be slowly pulled out of the seat belt guide so that the seat belt guide does not come off the trim.

NOTE

If you are not able to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.
