Operating conditions

If Parking Collision-Avoidance Assist detects a risk of collision around the vehicle with a pedestrian or an object, Parking Collision-Avoidance Assist will warn the driver with an audible warning and warning message on the instrument cluster. If the infotainment screen is on, a warning will appear on the screen.

If a collision is imminent, Parking Collision-Avoidance Assist will assist you with braking.

Select Rear safety from the Parking safety menu of the infotainment system. Parking Collision-Avoidance Assist is enabled when the following conditions are satisfied:

  • The tailgate and doors are closed

  • The Electronic Parking Brake (EPB) is released

  • The gear is shifted to R (Reverse)

  • Your driving speed is below 10 km/h (6 mph) (detecting pedestrians)

  • Your driving speed is below 4 km/h (2 mph) (detecting objects)

  • Parking Collision-Avoidance Assist components such as the wide-rear view camera and the rear ultrasonic sensors are in normal conditions

    ONQ5055097L

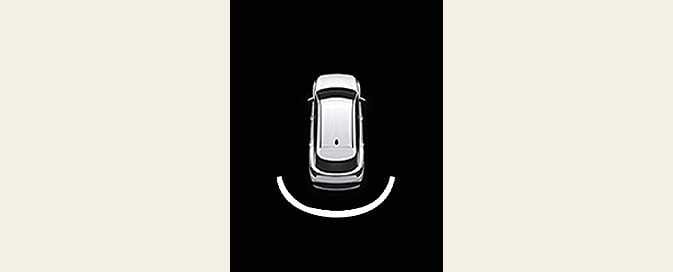

    When Parking Collision-Avoidance Assist activates, a line appears behind the vehicle image in the instrument cluster.

NOTE

  • Parking Collision-Avoidance Assist operates only once after shifting the gear. To reactivate Parking Collision-Avoidance Assist, shift the gear from another gear.

  • When Parking Collision-Avoidance Assist is activated whilst reversing, braking control will be released after 5 minutes and the Electronic Parking Brake (EPB) will be engaged.
