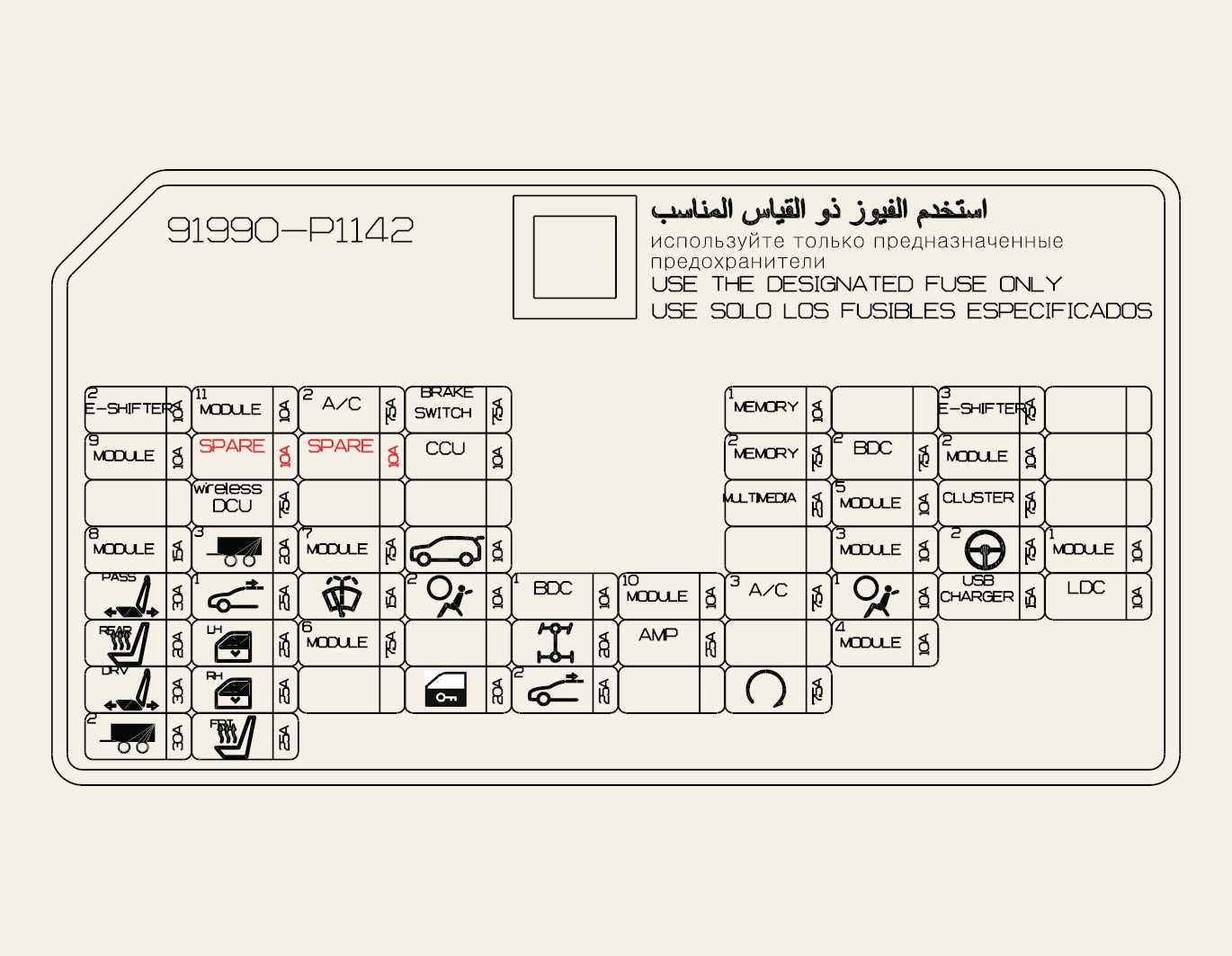

Driver's side fuse panel

ONQ5061022
ONQ5075016L

ICU Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

E-SHIFTER2

10 A

SCU, Electronic ATM Shift Lever

MODULE11

10 A

Active Air Flap Unit, Blower Relay

A/C2

7.5 A

E/R Junction Block (PTC Heater Relay, E-CVVT Relay, Blower Relay), A/C Controller, Manual A/C

BRAKE SWITCH

7.5 A

Stop Lamp Switch, BDC

MEMORY1

10 A

DCU, A/C Controller, Manual A/C, ADAS Unit (Parking), Rear Corner Radar LH/RH, Console Upper, CDCU, Cluster Unit, Low DC-DC Converter, BDC, Mood Lamp Driver/Passenger, Head-Up Display

E-SHIFTER3

7.5 A

SCU, Electronic ATM Shift Lever

MODULE9

10 A

Hazard Switch, In-Cabin Camera (ICC) Unit

CCU

10 A

CCU

MEMORY2

7.5 A

CCNC Keyboard, Console Tray (wireless Charger)

BDC2

7.5 A

BDC

MODULE2

10 A

CCU, Stop Lamp Switch

wireless DCU

7.5 A

DCU

MULTIMEDIA

25 A

CCNC Head Unit

MODULE5

10 A

Low DC-DC Converter, DCU, Electric Chromic Mirror, Overhead Console Assembly, Front Camera, Console Tray (wireless Charger), CCNC Head Unit, A/C Controller, Head Lamp LH/RH, GCU, Driver Seat, AMP (Amplifier), Console Upper Switch

CLUSTER

7.5 A

Head-Up Display, Cluster Unit

MODULE8

15 A

Power Window Main Switch, Outside Mirror Drive Unit

TRAILER3

20A

Trailer (Electronic Brake Controller)

MODULE7

7.5 A

12V Lithium Battery, Front Heated Relay

TAILGATE OPEN

10 A

Liftgate Relay

MODULE3

10 A

Power Window Main Switch

MDPS3

7.5 A

MDPS Unit

MODULE1

10 A

BDC, External AMP, ADAS Unit (Parking), CCU, CCNC Head Unit, Low DC-DC Converter, Manual A/C, CCNC Keyboard, DCU, Overhead Console Assembly

P/SEAT(PASS)

30 A

Passenger Power Seat Switch

SUNROOF1

25 A

Sunroof Controller (Glass Motor)

WASHER

15 A

Multifunction Switch

AIR BAG2

10 A

SRS Control Module

BDC1

10 A

BDC, Bluetooth Unit, Sports Mode Switch, Front/Rear UWB Unit LH/RH

MODULE10

10 A

Rain sensor, Key Interlock

A/C3

7.5 A

DATC UNIT, MTC UNIT

AIR BAG1

10 A

Air bag Control Unit

USB CHARGER

15 A

Front/Rear USB Charger Connector

LDC

10 A

Low DC-DC Converter, Console Tray(wireless Charger), ADAS Unit(Parking), Rear Corner Radar LH/RH, Cluster Unit, Manual A/C, Head-Up Display, CCNC Keyboard

S/HEATER(REAR)

20 A

Rear Seat Heater Control Module

P/WINDOW(LH)

25 A

Driver Safety Power Window Module, Rear Power Window Switch LH

MODULE6

7.5A

BDC

4WD

20 A

4WD ECU

AMP

25 A

AMP (Amplifier)

MODULE4

10 A

C/PAD Switch, ADAS Unit (Driving), Front/Rear Corner Radar LH/RH, ADAS Unit (Parking), 4WD ECU, CDCU

P/SEAT(DRV)

30 A

Driver Power Seat Switch, Driver IMS Control Module

P/WINDOW(RH)

25 A

Passenger Safety Power Window Module, Passenger Power Window Switch RH, Rear Power Window Switch RH

DOOR LOCK

20 A

Centre Door Lock/Unlock Relay

SUNROOF2

25 A

Sunroof Controller (Blind Motor)

START

7.5 A

BDC, PCM

TRAILER2

30A

Trailer (CTM2 Unit)

S/HEATER

(FRT)

25 A

Front Air Ventilation Seat Control Module, Front Seat Heater Control Module

1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
