Engine compartment fuse panel

ONQ5061059

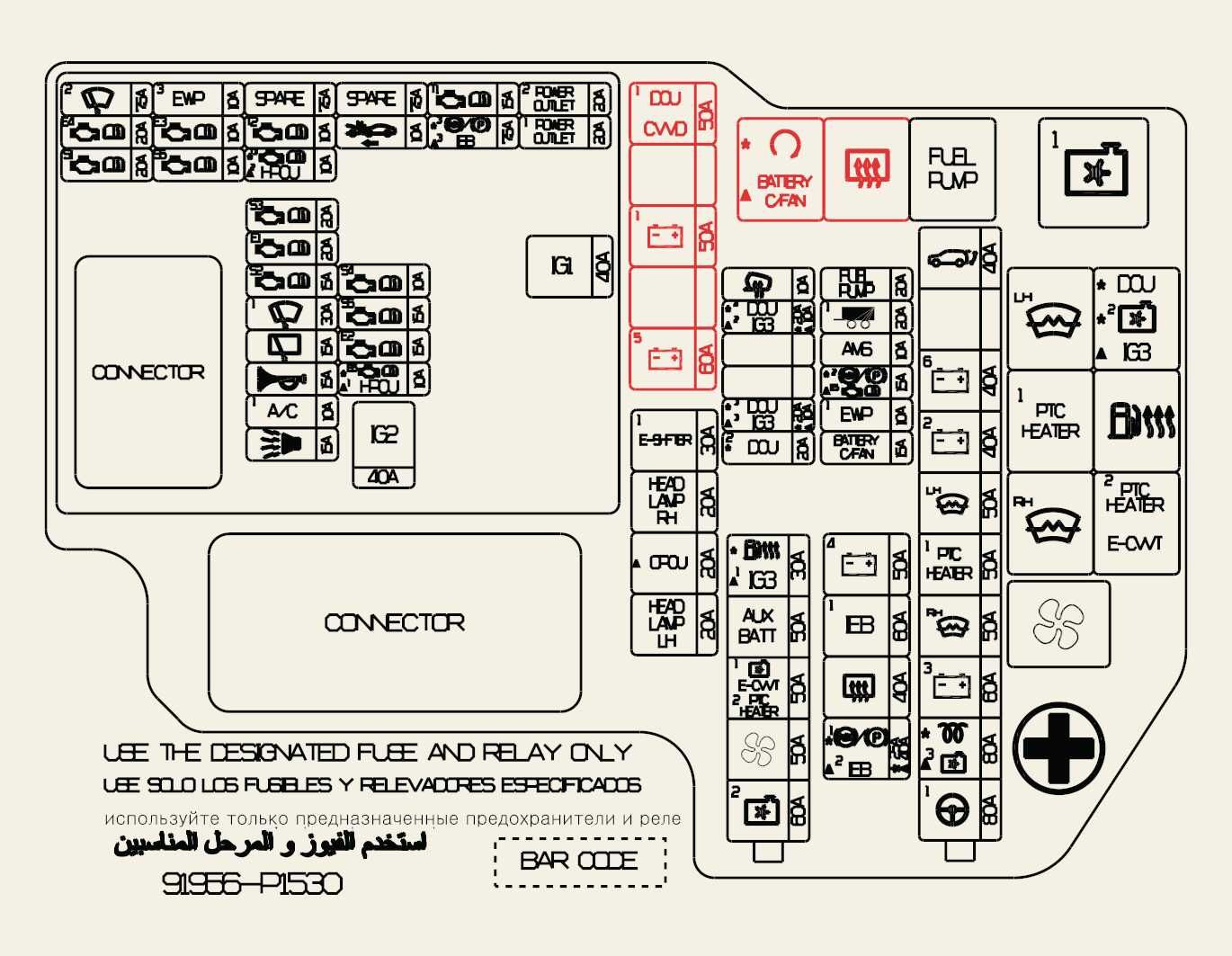

ONQ5075017L

Engine Room Junction Block

Fuse Name

Fuse rating

Circuit Protected

MULTI FUSE1

MDPS1

80 A

Motor Driven Power Steering Unit

GLOW

80 A

Glow plug Control Unit

B+3

60 A

PDC Junction Block (Fuse - E-SHIFTER2, TRAILER2, P/SEAT(DRV), P/SEAT(PASS), S/HEATER FRT, S/HEATER RR, SUNROOF1, MODULE11, P/WINDOW LH, P/WINDOW RH, MODULE8, TRAILER3, WIRELESS DCU, MODULE9)

W/S HEATED GLASS RH

50 A

Windscreen Heated Relay RH

PTC HEATER1

50 A

PTC Heater

W/S HEATED GLASS LH

50 A

Windscreen Heated Relay LH

B+2

40 A

PDC Junction Block (IPS8/IPS9/IPS10/IPS11/IPS12)

B+6

40 A

PDC Junction Block (Fuse - AMP, MODULE10, AIRBAG2)

POWER TAILGATE

40 A

Power Tailgate Open

MULTI FUSE2

COOLING FAN2

60 A

Cooling Fan Controller

BLOWER

50 A

Blower Relay

COOLING FAN1

50 A

Cooling Fan Relay

E-CVVT

50 A

E-CVVT Relay (Theta engine)

PTC HEATER2

50 A

PTC Heater Relay

AUX BATT

50 A

20AH Lithium Type Battery

FUEL FILTER HEATER

30 A

FUEL FILTER HEATER

FUSE

B+4

50 A

PDC Junction Block (Fuse - MULTIMEDIA, MEMORY1, MEMORY2, CCU, BDC1, BRAKE SWITCH, SUNROOF2, 4WD, DOOR LOCK, TAILGATE OPEN)

REAR HEATED

40 A

Rear Heated Relay

ABS1/EPB1

25 A

ESP (Electronic Stability Program Control Module)

DCU1

50 A

Domain Control Unit

CVVD

50 A

CVVD ACTR

B+1

50 A

PDC Junction Block (IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7)

B+5

60 A

PCB Block (Fuse - A/C1,HORN,IG1,IG2, Relay-MAIN, WIPER)

E-SHIFTER1

30 A

SCU (System Control Unit)

HEAD LAMP RH

20 A

Front Head Lamp RH

HEAD LAMP LH

20 A

Front Head Lamp LH

FUEL PUMP

20 A

Fuel Pump Relay

TRAILER1

20 A

Trailer CTM2 type (w/ e-brake)

AMS

10 A

Battery Sensor

ABS2/EPB2

15 A

ESP (Electronic Stability Program Control Module)

HEATED MIRROR

10 A

Outside Mirror Heated

DCU4

20 A

Domain Control Unit

DCU3

20 A

Domain Control Unit

DCU2

20 A

Domain Control Unit

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

IG2

40 A

IG2 Relay

IG1

40 A

IG1 Relay, ACC Relay

FRT WIPER2

7.5 A

Front Wiper (Low) Relay, BDC (Body Domain Controller)

ECU 4

20 A

Power train Control Module

SENSOR1

20 A

Ignition Coil #1~#4

ECU 3

10 A

Power train Control Module

SENSOR5

10 A

Fuel Pump Relay

TCU2

10 A

Transmission Control Module

TCU3

10 A

Transaxle Range Switch

SENSOR3

20 A

ECM (Engine Control Module)

ECU1

20 A

Power train Control Module

SENSOR2

15 A

Oxygen Sensor (Up/Down)

FR WIPER1

30 A

Wiper Main Relay, Front Wiper (Low) Relay

RR WIPER

15 A

Wiper Main Relay, ICU Junction Block (Rear Wiper Relay)

HORN

15 A

Horn Relay

B/ALARM HORN

15 A

Burglar Alarm Horn Relay

FCA

10 A

Front Radar

SENSOR4

10 A

[Smartstream G2.0] Oil Control Valve #1/#2(Intake/Exhaust), Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Colling Fan Controller, Air Conditioner Comp Relay, E/R Junction Block(Cooling Fan Relay High) [Smartstream G2.5 T-GDi] Oil Control Valve #2(Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay

SENSOR6

15 A

Injector #1 ~ #4

ECU2

15 A

Power train Control Module

ECU6

10 A

Power train Control Module

TCU1

15 A

Transmission Control Module

ABS3/EPB3

7.5 A

ESP (Electronic Stability Program) Control Module

POWER OUTLET2

20 A

Front Power Outlet

POWER OUTLET1

20 A

Luggage Power Outlet

1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

Relay

Refer to the following table for the relay type.

Relay Name

Symbol

TYPE

Rear Heated Relay

MICRO

Start Relay

MICRO

Fuel Pump Relay

MICRO

Cooling Fan Relay High

MINI

PTC Heater Relay #1

MICRO

Fuel Filter Heating Relay

MICRO

PTC Heater Relay #2 (Disel)

E-CVVT Relay (Smartstream G2.5 GDi)

MICRO

Blower Relay

MICRO
